Autonomous Floor Grinder
HTG-2500 GE Battery Automatic Robot grinder
The HTG-2500 is a fully battery-powered autonomous grinding and polishing machine. Featuring a 12-disc planetary grinding system with a 2400mm ultra-wide working width, it delivers exceptional efficiency for super-large logistics centers, industrial plants, and airport runways.

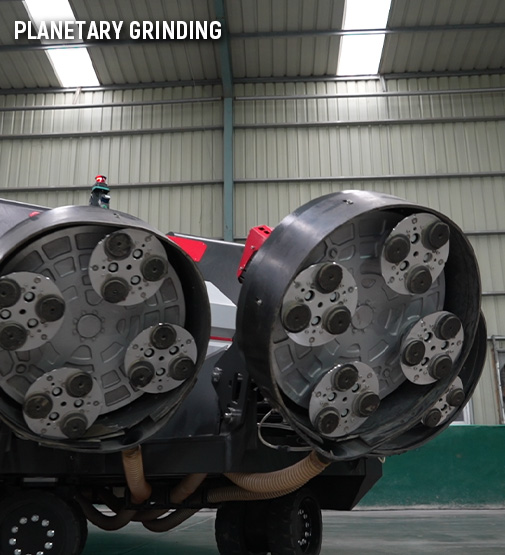

12-Disc Planetary Grinding System
2400mm Ultra-Wide Working Width

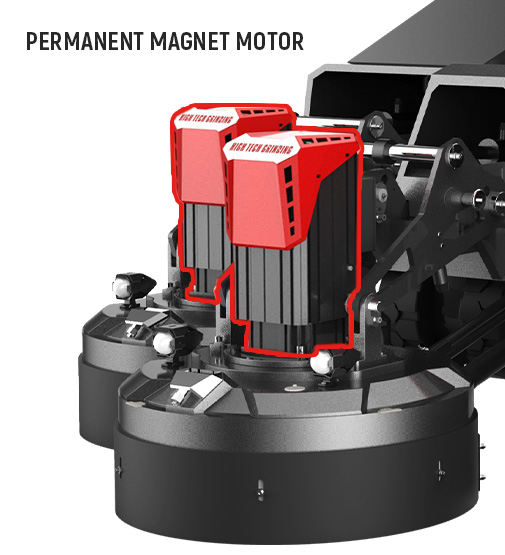

18.5kW x3 Motors / 75HP Total Power
600V Battery-Powered System
6000KG Heavy-Duty Construction
HEPA H13 Filtration with Automatic Jet-Pulse Cleaning
2800m³/h Airflow for Efficient Dust Collection
product description
The HTG-2500 is a fully battery-powered autonomous grinding and polishing machine. Featuring a 12-disc planetary grinding system with a 2400mm ultra-wide working width and autonomous path planning for unmanned operation, it is designed for super-large logistics centers, industrial plants, and airport runways. The machine is powered by three 18.5kW motors with 75HP total power and a 600V battery system. It features a HEPA H13 filtration system with automatic jet-pulse cleaning and continuous drop-down bag dust collection, with 2800m³/h airflow for efficient dust control.
FEATURES
Discover all features and learn more about the benefits.
-

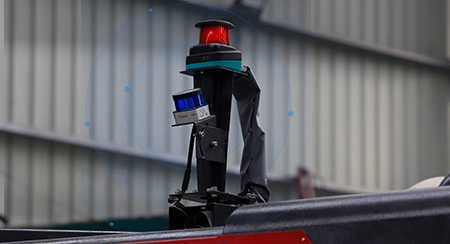

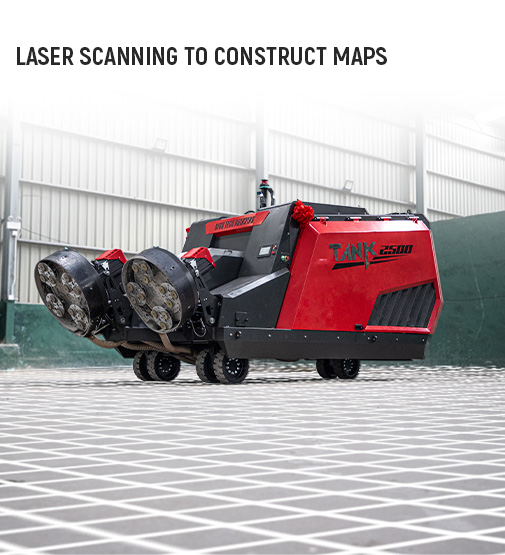

Real-World Laser 3D Modeling
Laser 3D modeling scans and maps the area for automatic grinding, eliminating manual path planning and ensuring full floor coverage.
-
-

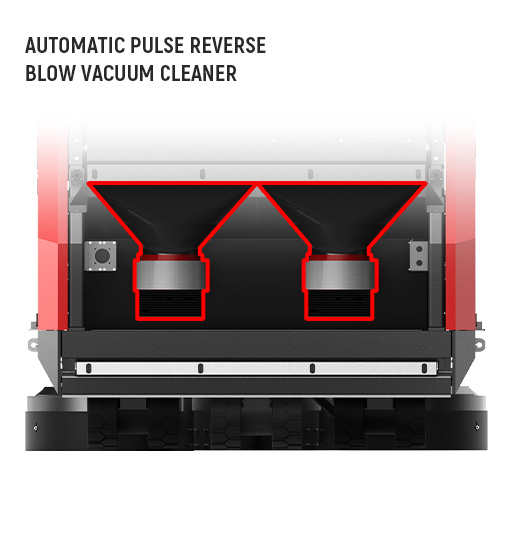

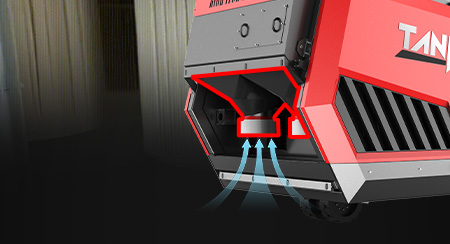

Automatic Dust Collection System
Automatic pulse jet dust collector boosts efficiency 20% for dust-free grinding, capturing fine particles to keep jobsites clean.
-
-

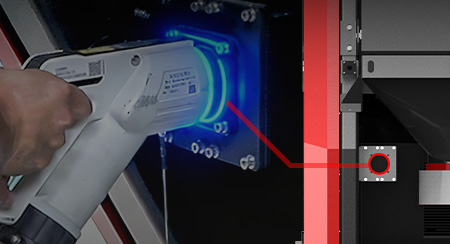

Long Battery Life & Super-Fast Charging
Super-fast charging: 2-hour charge gives 5h grinding, 8h polishing, maximizing uptime and productivity.
-
feature overview (7)
✓ 12-Disc Planetary Grinding System
✓ 2400mm Ultra-Wide Working Width
✓ 18.5kW x3 Motors / 75HP Total Power
✓ 600V Battery-Powered System
✓ 6000KG Heavy-Duty Construction
✓ HEPA H13 Filtration with Automatic Jet-Pulse Cleaning
✓ 2800m³/h Airflow for Efficient Dust Collection
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-2500 |
| HTG-2500 Battery Robot Grinder | |
| ENGINE / MOTOR | |
| Motor Power (As rated by the engine manufacturer) | 18.5kW x3 / 75HP |
| Power source | Battery |
| Rated input power | 55.5 kW / 75 HP |
| Voltage | 600 V |
| Frequency | 50/60Hz |
| EQUIPMENT | |
| Working width | 2400 mm |
| Number of grinding discs | 12 |
| Grinding disc diameter | 278 mm |
| Rotating Speed | 450-1950 RPM |
| Water Tank | 180 L |
| Vacuum Motor Power | 25 KW / 33.5 HP |
| CFM | 1647 |
| Vacuum | 40 KPS |
| HEPA H13 Filter | 3.86 m² > 99.99%@0.3 um |
| Filter Cleaning | Automatic jet-pulse |
| Dust Collection | Continuous drop-down bag |
| Air Flow | 2800 m³/h |
| Optional | Wet vacuum |
| DIMENSIONS | |
| Appearance size (L*W*H) | 5745*2410*2506 mm |
| Weight | 6000 KG |
