Autonomous Floor Grinder

AT10 Automatic Robot Grinder

The XINGYI AT10 is an autonomous intelligent floor grinder with ATLAS FSG, laser-guided leveling, adaptive pressure control, and 22kW power for superflat concrete grinding. It is an excellent choice for warehouses, logistics centers, and industrial facilities requiring high-precision surface preparation and polishing.

✓ Laser-Guided Leveling with ATLAS FSG
✓ Adaptive Pressure Control for Consistent Results

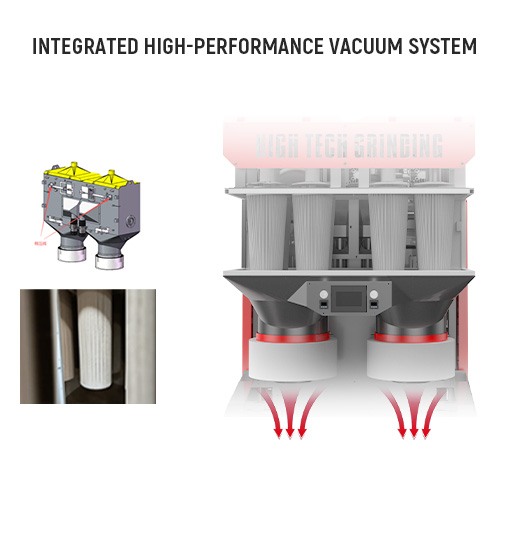

✓ Integrated Vacuum System for Clean Operation
✓ Intelligent Automation with Total Control
✓ High-Power 22kW Motor for Large-Scale Grinding
Instructions pdf
product descriptionFEATURESMachine parametersrelated productsVideo

product description

The XINGYI AT10 is an autonomous floor grinder with laser-guided leveling and 22kW power for superflat concrete grinding. Designed for warehouses and industrial floors, it ensures consistent results with intelligent automation.

FEATURES

Discover all features and learn more about the benefits.

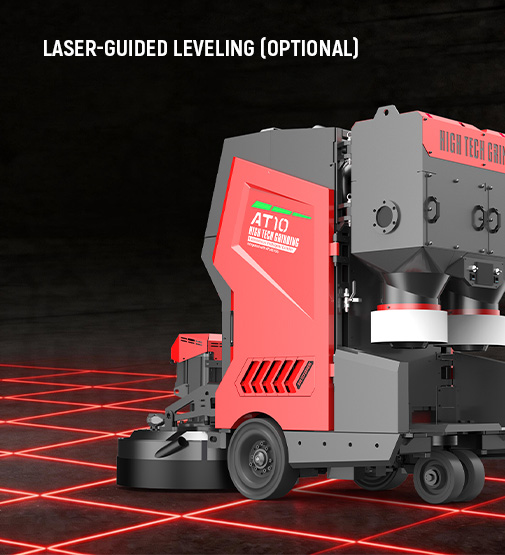

Laser-Guided Leveling with ATLAS FSG

The AT10 uses ATLAS FSG and laser-guided leveling for ultra-precise superflat grinding on industrial floors.

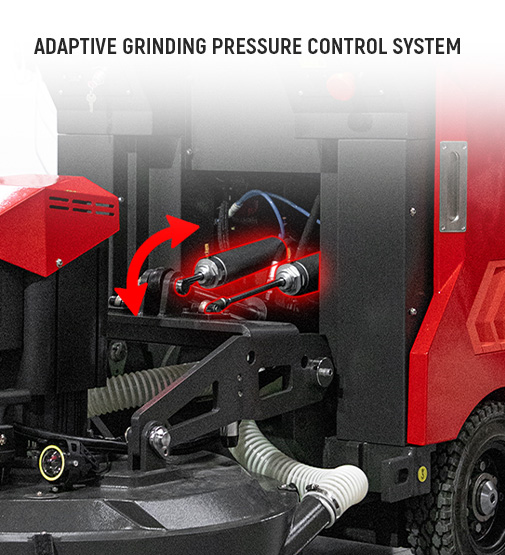

Adaptive Pressure Control System

Automatically adjusts grinding pressure for consistent removal and flawless finishes across the entire floor.

Intelligent Automation & Total Control

Advanced automation delivers total control for consistent, high-quality results with minimal operator intervention.

feature overview (5)

✓ Laser-Guided Leveling with ATLAS FSG

✓ Adaptive Pressure Control for Consistent Results

✓ Integrated Vacuum System for Clean Operation

✓ Intelligent Automation with Total Control

✓ High-Power 22kW Motor for Large-Scale Grinding

Machine parameters

ALL PRODUCT SPECIFICATIONS AT10
AT10 Autonomous Floor Grinder
ENGINE / MOTOR
Engine Power (As rated by the engine manufacturer) 22 kW / 30 HP
Power source Corded
Rated input power 22 kW / 30 HP
Phases 3 ph
Voltage 380V
Rated current 78A
Frequency 50/60Hz
Inverter horsepower 22 kW / 30 HP
EQUIPMENT
Grinding width 995 mm / 39.2 in
Number of grinding discs 4
Grinding disc diameter 315 mm / 12.4 in
Grinding disc speed min 350 rpm
Grinding disc speed max 1950 rpm
Grinding pressure 100-1000 kg
DIMENSIONS
Product size length 2450 mm / 96.5 in
Product size width 1005 mm / 39.6 in
Product size height 1915 mm / 75.4 in
Weight (complete product w/o side packed articles) 2150 kg / 4739.94 lbs
