Autonomous Floor Grinder

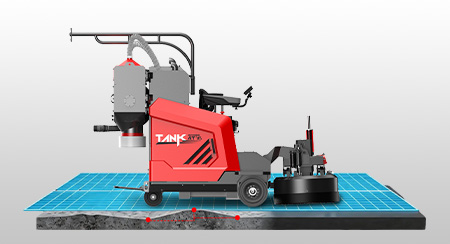

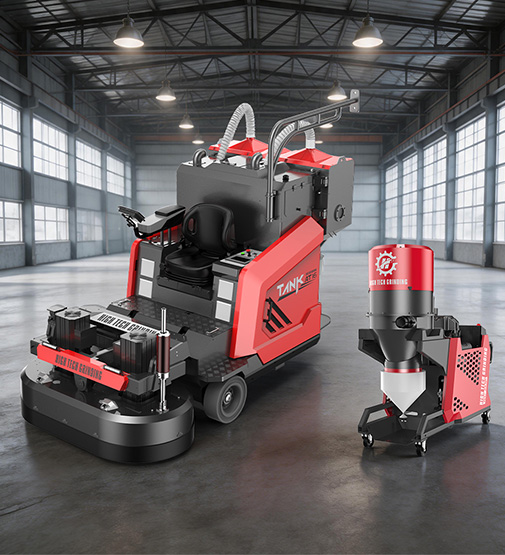

AT16 Autonomous Robot Grinder

The XINGYI AT16 is a high-output autonomous floor grinder with dual 22kW motors and a 1560mm working width for large-scale industrial floors. It is an excellent choice for logistics centers, industrial plants, and large warehouses requiring high-output surface preparation and polishing.

✓ Dual 22kW Motors for Heavy-Duty Grinding Power
✓ 1560mm Working Width for Maximum Productivity
✓ 4 Heavy-Duty Grinding Discs for Consistent Finishes
✓ High-Output Design for Logistics Centers and Warehouses
✓ Autonomous Intelligent Operation with Minimal Intervention
Instructions pdf
product descriptionFEATURESMachine parametersrelated productsVideo

product description

The XINGYI AT16 is a high-output autonomous floor grinder with dual 22kW motors and a 1560mm working width, ideal for large-scale industrial floors and logistics centers.

FEATURES

Discover all features and learn more about the benefits.

Powered by TrueFlat Control System

Achieves ±1mm flatness accuracy for superflat floor specifications.

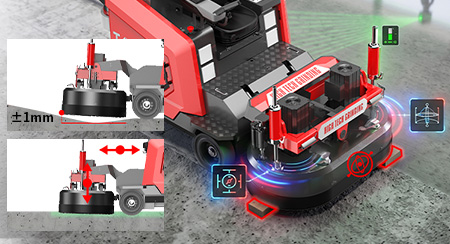

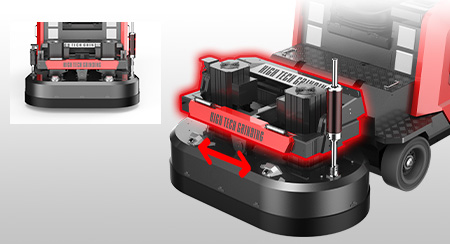

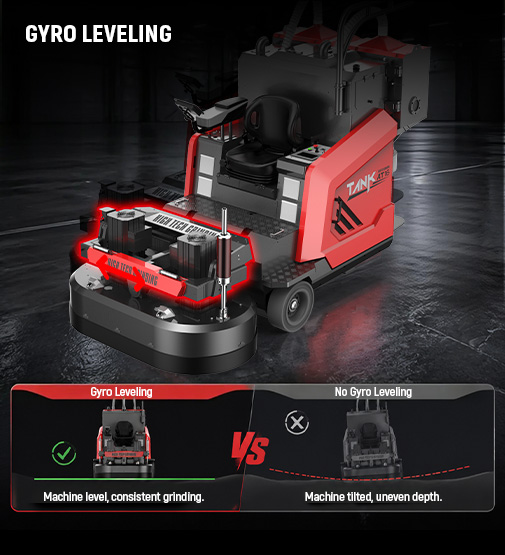

Gyro Leveling

Keeps the machine perfectly level during operation, ensuring consistent grinding depth across the entire floor.

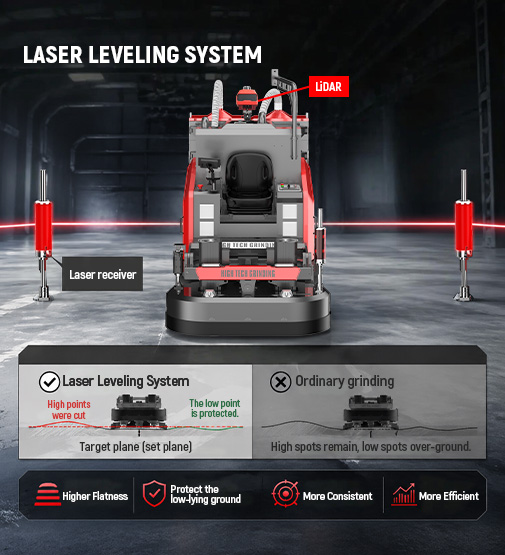

Laser Leveling System

Uses LiDAR and laser receiver to precisely set the target plane. Cuts high points while protecting low points for superior flatness.

feature overview (5)

✓ Dual 22kW Motors for Heavy-Duty Grinding Power

✓ 1560mm Working Width for Maximum Productivity

✓ 4 Heavy-Duty Grinding Discs for Consistent Finishes

✓ High-Output Design for Logistics Centers and Warehouses

✓ Autonomous Intelligent Operation with Minimal Intervention

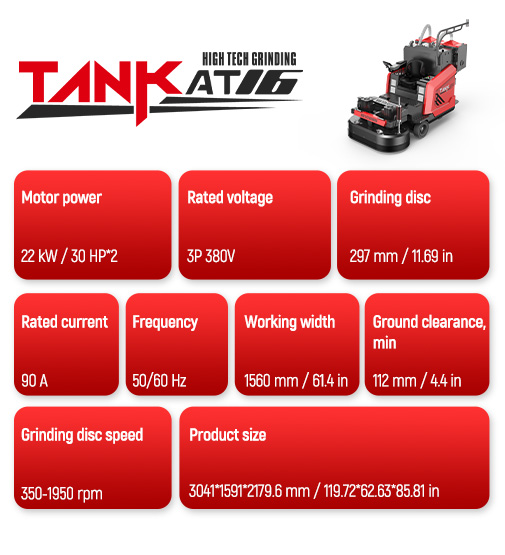

Machine parameters

ALL PRODUCT SPECIFICATIONS AT16
AT16 Autonomous Floor Grinder
ENGINE / MOTOR
Engine Power (As rated by the engine manufacturer) 22 kW / 30 HP x2
Power source Corded
Rated input power 44 kW / 60 HP
Phases 3 ph
Voltage 380V
Rated current 90A
Frequency 50/60Hz
EQUIPMENT
Grinding width 1560 mm / 61.4 in
Number of grinding discs 4
Grinding disc diameter 315 mm / 12.4 in
Grinding disc speed min 350 rpm
Grinding disc speed max 1950 rpm
Ground clearance, min 112 mm / 4.4 in
DIMENSIONS
Product size length 3073 mm / 121 in
Product size width 1628 mm / 64.1 in
Product size height 2396 mm / 94.3 in
Weight (complete product w/o side packed articles) 2776.5 kg / 6120 lbs
