Autonomous Floor Grinder
AT8 Automatic Robot Grinder
✓ TruePlane laser control actively corrects floor variations
✓ Gyroscopic tilt compensation for real-time stability
✓ Layered precision software for 2mm micro-cut control
✓ Designed for narrow-aisle warehouses and logistics hubs
product description
The XINGYI AT8 is an autonomous floor grinder with ATLAS FSG system, featuring laser + visual navigation and TruePlane superflat control for ultra-precise grinding.
It delivers high productivity in warehouses, logistics centers, and superflat pavements.
FEATURES
Discover all features and learn more about the benefits.
-

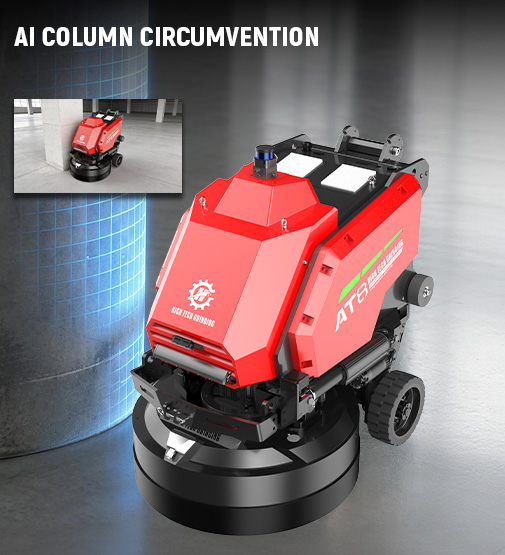

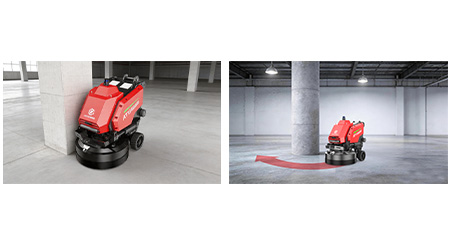

AI Column Circumvention: Automated Perimeter Pathing
The AT8 automatically navigates around columns and perimeters for complete floor coverage without collisions.
-
-

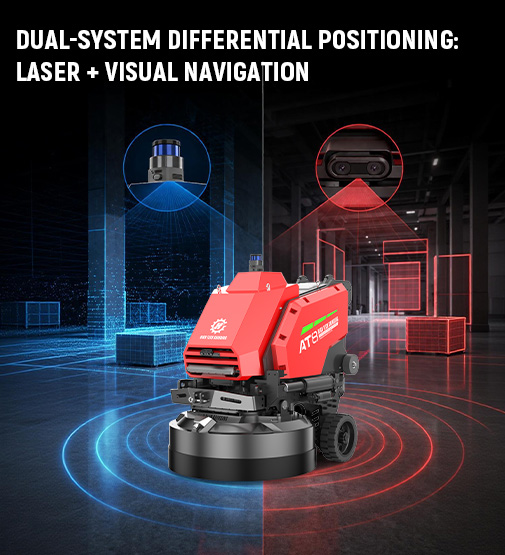

Dual-System Differential Positioning: Laser + Visual Navigation
The AT8 uses laser and visual navigation for precise autonomous operation in complex environments.
-
-

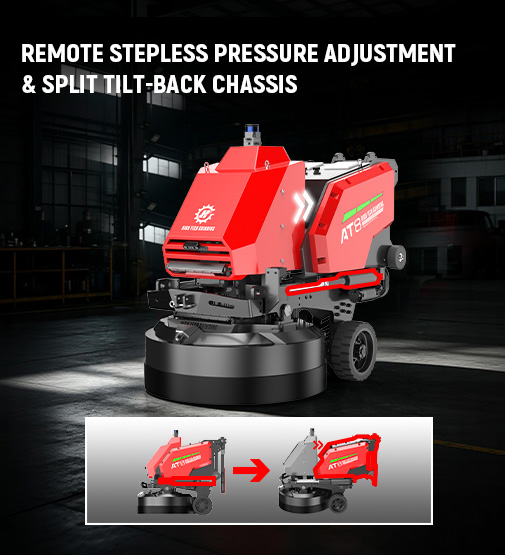

Remote Pressure Adjustment & Split Chassis

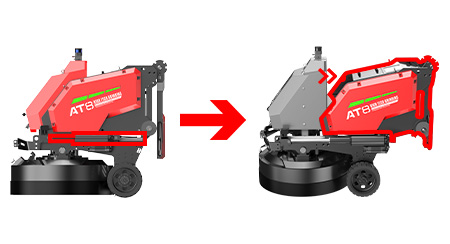

Remote stepless pressure adjustment enables real-time control. The split chassis simplifies maintenance and tool changes.
-
-

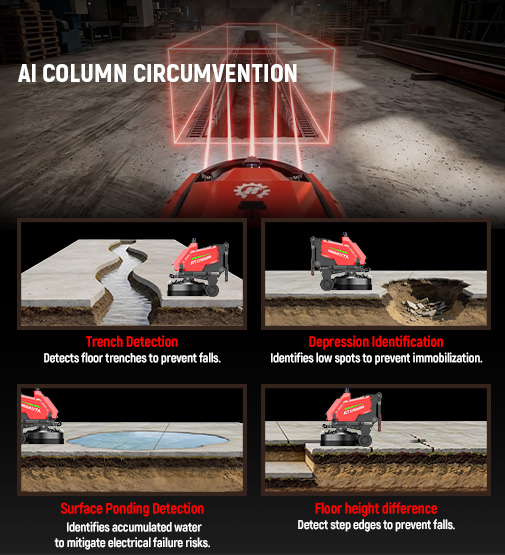

Ai Tooling & Hazard Detection

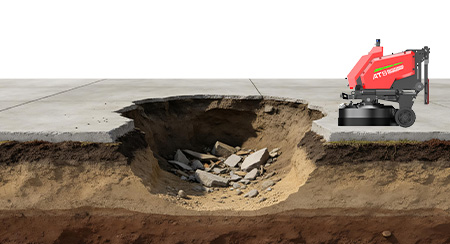

Monitors tooling wear and detects floor hazards like step edges, trenches, and ponding to prevent failures and ensure safety.
-
feature overview (7)
✓Laser + Visual Navigation
✓ATLAS FSG System
✓ TruePlane Superflat Control
✓ Dynamic Gyroscopic Tilt Compensation
✓ 22kW Motors
✓2mm Layered Precision Grinding
Machine parameters
| ALL PRODUCT SPECIFICATIONS | AT8 |
| AT8 Autonomous Floor Grinder | |
| ENGINE | |
| Engine Power (As rated by the engine manufacturer) | 22 kW / 25 HP |
| MOTOR | |
| Power source | Corded |
| Rated input power | 22 kW / 25 HP |
| Phases | 3 ph |
| Voltage | 380V |
| Rated current | 36.6A |
| Frequency | 50/60Hz |
| Inverter horsepower | 18.5 kW / 25 HP |
| EQUIPMENT | |
| Grinding width | 852 mm / 33.5 in |
| Number of grinding discs | 4 |
| Grinding disc diameter | 315 mm / 12.4 in |
| Grinding disc speed min | 350 rpm |
| Grinding disc speed max | 1950 rpm |
| Grinding pressure | 214.5 - 400 kg / 472.9 - 881.8 lbs |
