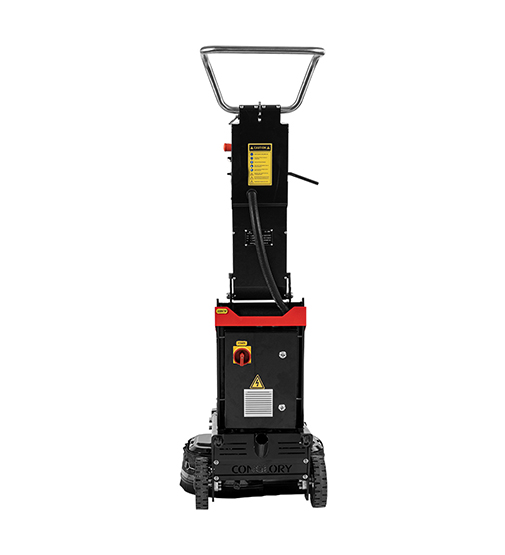

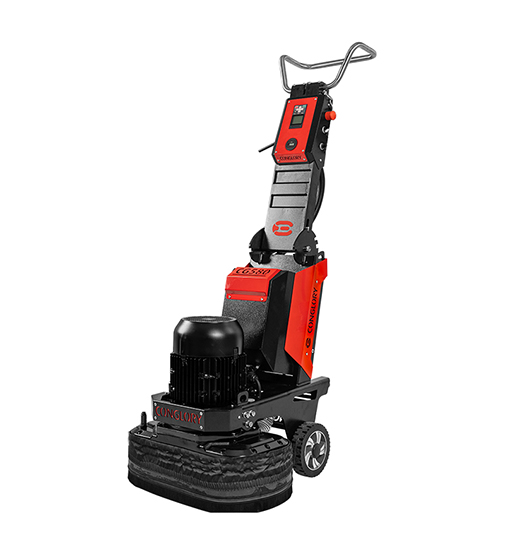

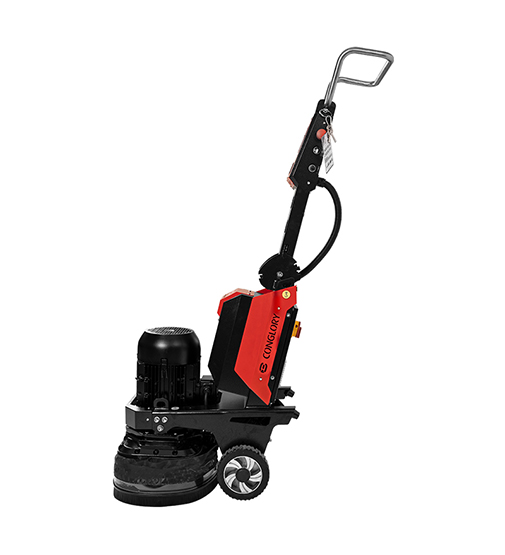

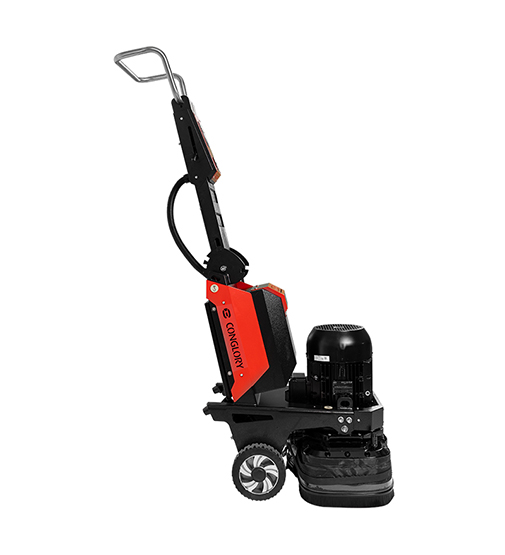

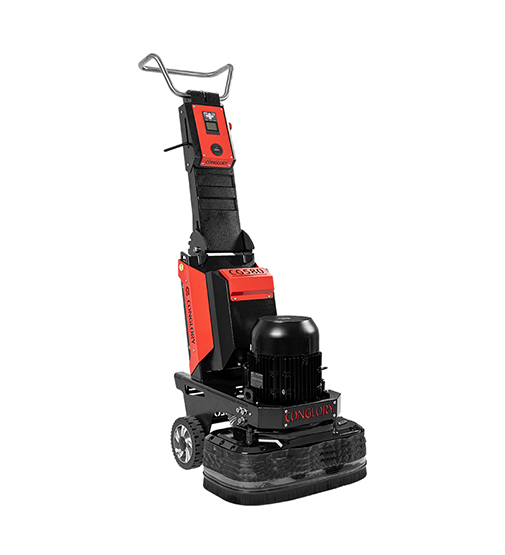

CG580
Two-head heavy-duty grinding machine, used for surface preparation such as leveling, roughening.emoving old coatings, etc. lt can take bush hammer, diamond pad, and resin pads.
✓ Motor power 5.5kw, the 200.5 kg can provide greater grinding
✓ ipressure.
✓ The control sway bar canbe front mounted.
✓ Motor power 5.5kw, the 200.5 kg can provide greater grinding
✓ ipressure.
✓ The control sway bar canbe front mounted.
product description
Two-head heavy-duty grinding machine, used for surface preparation such as leveling, roughening.emoving old coatings, etc. lt can take bush hammer, diamond pad, and resin pads.
FEATURES
Discover all features and learn more about the benefits.
-

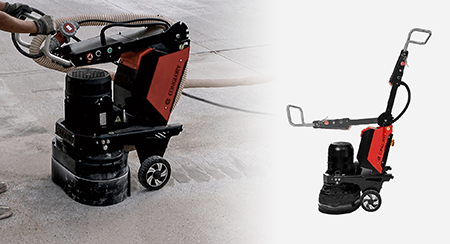

The control sway bar canbe front mounted.
You can see the grinding effect of the ground more clearly. In this status, you can also increase the qrinding pressure by pressing the handle.
-
-
ipressure.

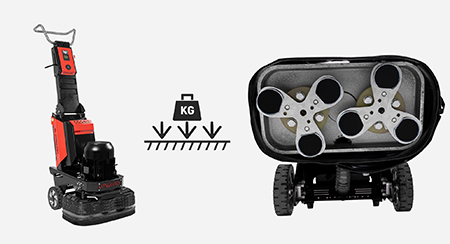

60% of weight is on the grinding head.
-
-

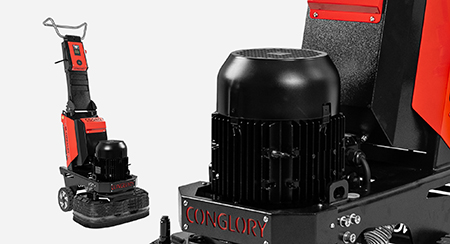

Motor power 5.5kw, the 200.5 kg can provide greater grinding
Motor power 5.5kw, the 200.5 kg can provide greater grinding ipressure.
-
feature overview (3)
✓ Motor power 5.5kw, the 200.5 kg can provide greater grinding
✓ ipressure.
✓ The control sway bar canbe front mounted.
Machine parameters
| ALL PRODUCTS SPECIFICATION | CG580 USPRO | CG580 ULTRA |
| CG580 | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 5.5KW | 5.5KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 5.5KW | 5.5KW |
| Phases | 3ph | 3ph |
| Voltage | 200-240V | 200-240V |
| Frequency | 50-60 Hz | 50-60 Hz |
| EQUIPMENT | ||
| Grinding width | 570 mm | 570 mm |

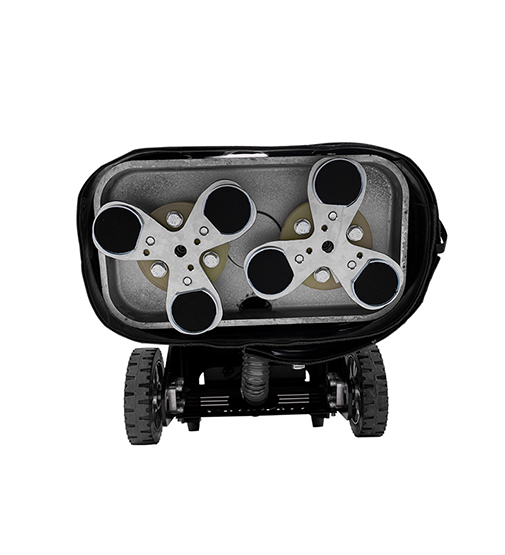

| Number of grinding discs | 2 | 2 |
| Direction of rotation | ||
| Grinding disc diameter | 310 mm | 310 mm |
| Grinding disc speed min | 350 rpm | 350 rpm |
| Grinding disc speed max | 1680 rpm | 1680 rpm |
| Grinding pressure, max | 85.5kg/188.5 lbs | |
| TRANSMISSION | ||
| Type of operation | Walk-behind | Walk-behind |
| DIMENSIONS | ||
| Product size length | 1643mm | |
| Product size width | 572mm | |
| Product size height | 1474mm | |
| Weight (complete product w/o side packed articles) | 187kg/412 lbs |
