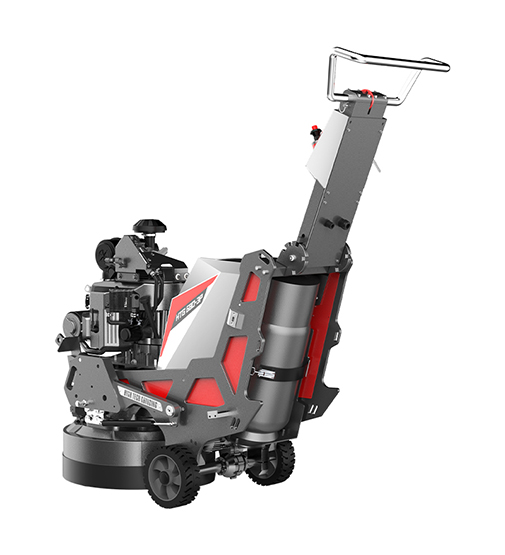

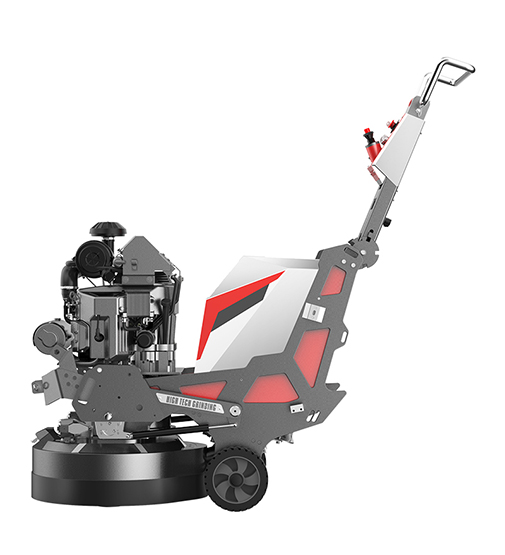

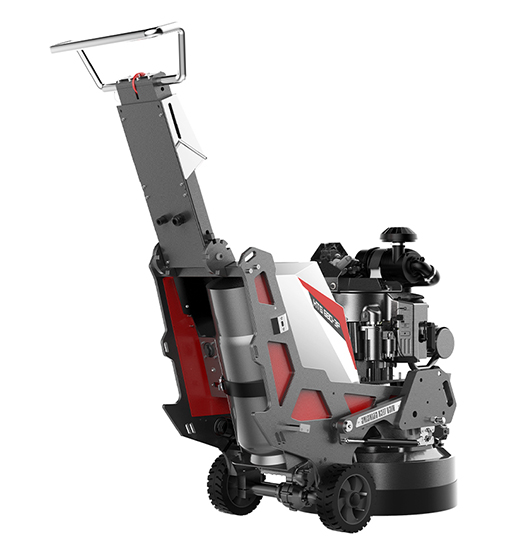

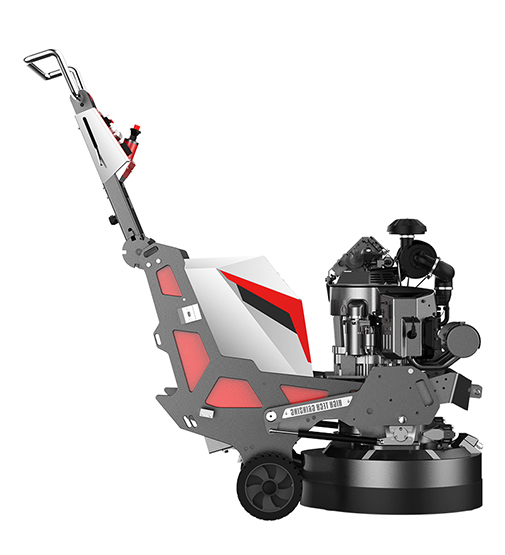

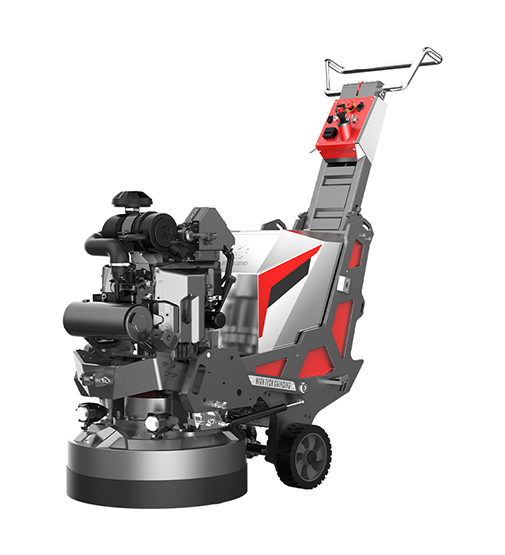

Planetary Grinder
HTG680-3/-4 SP GP
The key benefit of propane grinding machines is their quick setup without the need for wiring or power, making them ideal for locations without electricity, though they require regular maintenance like other propane equipment, it is best combination to connect to HTG propane vacuums.
✓ Integrated gear box
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Easy to tile up
✓ Three grinding pressures
✓ Various grinding heads
✓ Break free from constraints
product description
The 27-inch grinder is suitable for both indoor and outdoor projects. It can easily pass through the width of the door. It is high efficiency, and is easy to transport and maintain. The HTG 680 series has an integrated cutting frame and ergonomic design to achieve a perfect balance.
The key benefit of propane grinding machines is their quick setup without the need for wiring or power, making them ideal for locations without electricity, though they require regular maintenance like other propane equipment, it is best combination to connect to HTG propane vacuums.
FEATURES
Discover all features and learn more about the benefits.
-

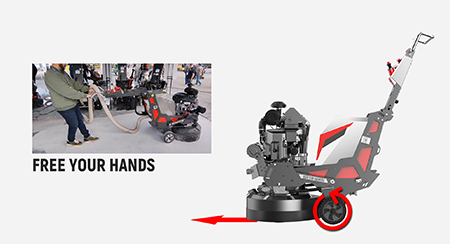

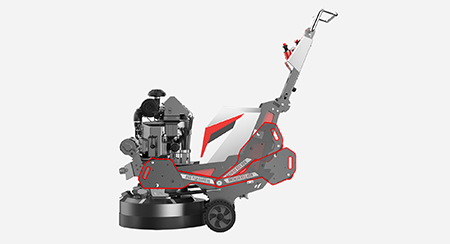

Self-Propelled
The machine is equipped with self-propelled technology that enables it to navigate and operate independently. Free your hands.
-
-

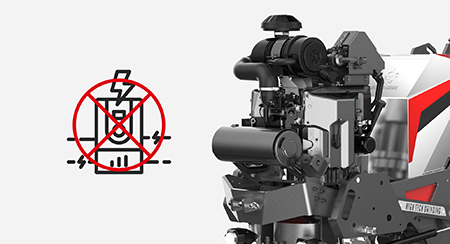

Break free from constraints
No constraints from wires and power souses, more widely used sites
-
-
Three grinding pressures
Through the swinging type weight irons, the user can easily switch its working state and adjust the machine grinding pressure.
-
-

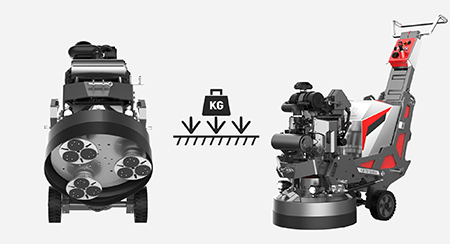

Big grinding pressure
The machine is more than 500kg with super grinding pressure on each working head.
-
-

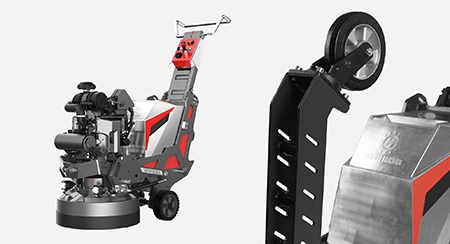

Builtin battery/front wheel
Equipped with a rechargeable battery and detachable front wheel, which is easy for transportation when without a power supply.(SP and RC models)
-
feature overview (7)
✓ Integrated gear box
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Easy to tile up
✓ Three grinding pressures
✓ Various grinding heads
✓ Break free from constraints
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG680 SP GP USPRO | HTG-680SP GP ULTRA |
| 680-3/-4SP GP | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 27HP | 27HP |
| MOTOR | ||
| Power source | Propane | Propane |
| Rated input power | 27HP | 27HP |
| Grinding width | 660mm | 660mm |

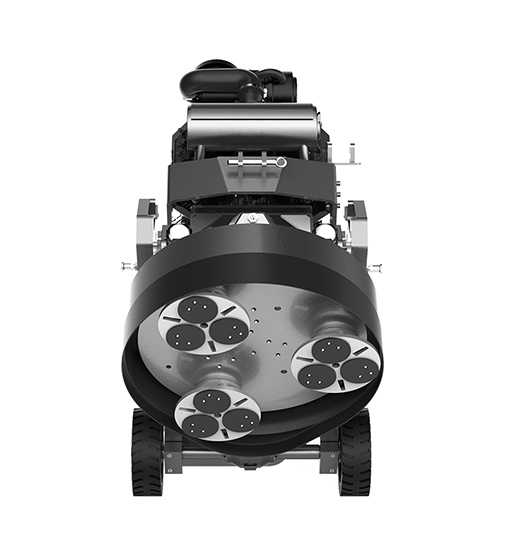

| Number of grinding discs | 3 | 3 |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder |
| Grinding disc diameter | 230 mm | 230 mm |
| Grinding disc speed min | 2100 rpm | 2100 rpm |
| Grinding disc speed max | 3600 rpm | 3600 rpm |
| Grinding pressure, max | 284kg/626 lbs | 256kg/564 lbs |
| Walking Speed | 25m/min | 25m/min |
| TRANSMISSION | ||
| Type of operation | Self-propelled | Self-propelled |
| DIMENSIONS | ||
| Product size length | 2188mm | 2188mm |
| Product size width | 670mm | 670mm |
| Product size height | 1794mm | 1794mm |
| Weight (complete product w/o side packed articles) | 536kg/1182 lbs | 536kg/1182 lbs |
