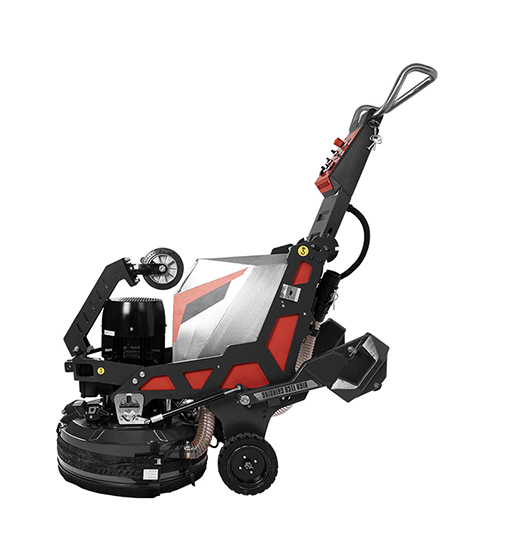

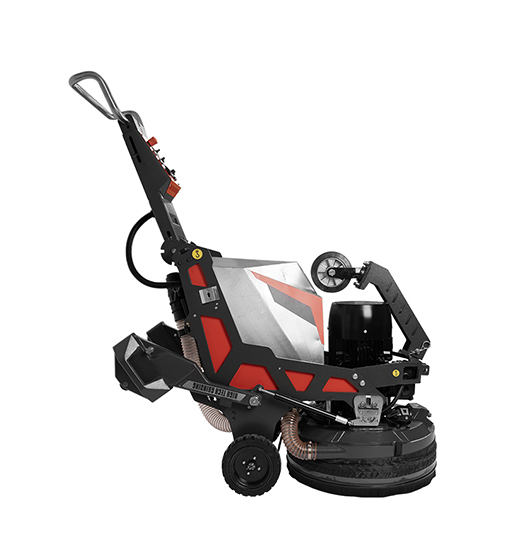

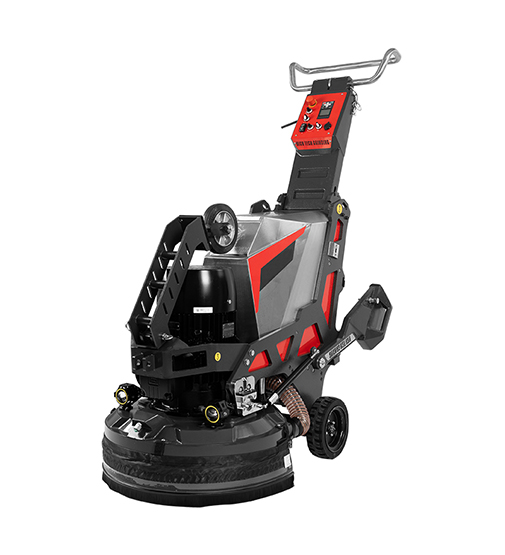

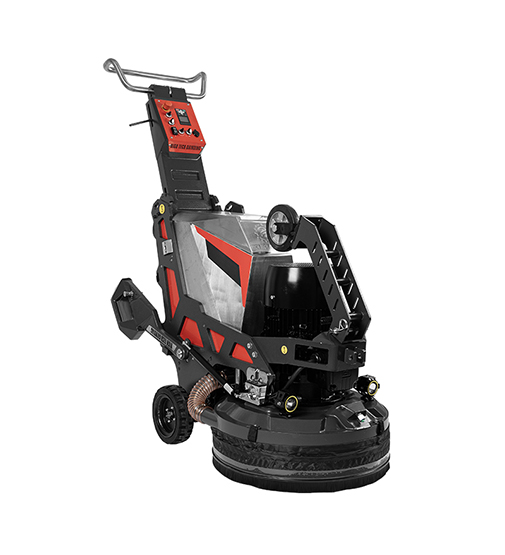

Planetary Grinder
HTG680-3or-4 SP
✓ Self-Propelled
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Three grinding pressures
✓ Various grinding heads
✓ Powerful grinding effect
product description
The 27-inch grinder is suitable for both indoor and outdoor projects. It can easily pass through the width of the door. It is high efficiency, and is easy to transport and maintain. The HTG 680 series has an integrated cutting frame and ergonomic design to achieve a perfect balance. Equipped with 3 or 4 flexible grinding heads, the only series has from walk-behind, self-driven to remote-controlled models, and users can choose according to their usage habits. The machine can be connected to single-phase or three-phase electricity, and can be connected to V3 /45L for dust-free working.
FEATURES
Discover all features and learn more about the benefits.
-

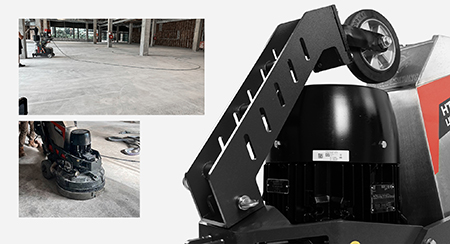

Powerful grinding effect
Equipped with 11kw/15kw big motor, more powerful and better working effects
-
-

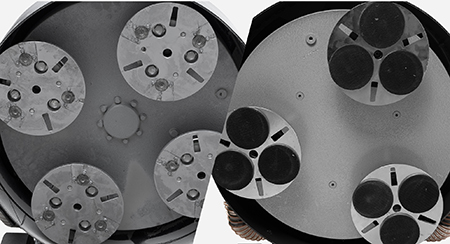

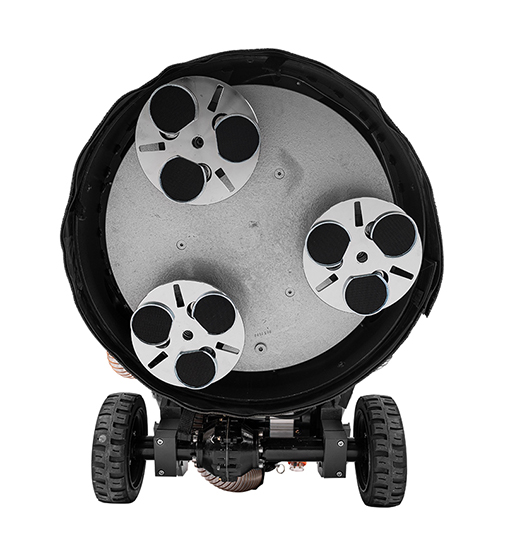

Various grinding heads
The users can choose three heads or four heads planetary grinding according to projects conditions and usage habits.
-
-

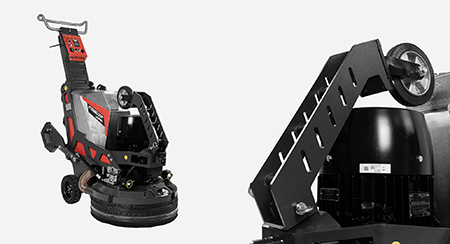

Three grinding pressures
Through the swinging type weight irons, the user can easily switch its working state and adjust the machine grinding pressure.
-
-

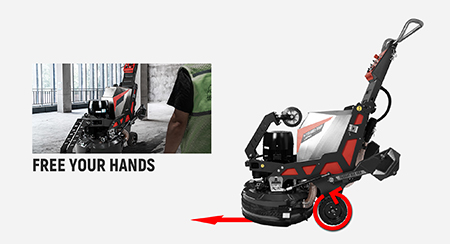

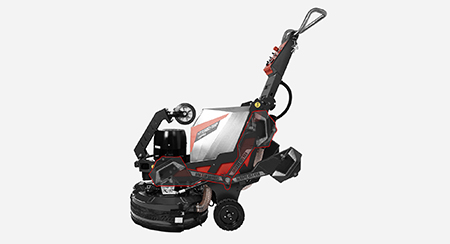

Self-Propelled
The machine is equipped with self-propelled technology that enables it to navigate and operate independently. Free your hands.
-
-
Builtin battery/front wheel
Equipped with a rechargeable battery and detachable front wheel, which is easy for transportation when without a power supply.(SP and RC models)
-
-

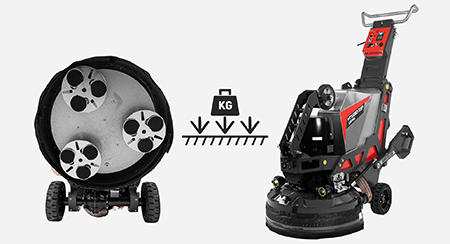

Big grinding pressure
The machine is more than 500kg with super grinding pressure on each working head.
-
feature overview (6)
✓ Self-Propelled
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Three grinding pressures
✓ Various grinding heads
✓ Powerful grinding effect
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG680-3/-4 SP USPRO | HTG-680SP ULTRA | |||
| 680-3/-4SP | |||||
| ENGINE | |||||
| Engine Power (As rated by the engine manufacturer) | 11 KW | 11 KW | 11KW PM motor | 11KW PM motor | |
| MOTOR | |||||
| Power source | Corded | Corded | Corded | Corded | |
| Rated input power | 11KW | 11KW | 11KW | 11KW | |
| Phases | 3 ph | 3 ph | 3 ph | 3 ph | |
| Voltage | 200-240V | 200-240V | 380-480 V | 380-480 V | |
| Rated current | 40A | 40 A | 23.0A | 23.0A | |
| Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz | |
| Pins | 3P+E | 3P+E | 3P+E | 3P+E | |
| EQUIPMENT | |||||
| Grinding width | 660 mm | 678 mm | 660 mm | 678 mm | |
| Number of grinding discs | 3 | 4 | 3 | 4 | |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder | |
| Grinding disc diameter | 230 mm | 230 mm | 230 mm | 230 mm | |
| Grinding disc speed min | 350 rpm | 350 rpm | 350 rpm | 350 rpm | |
| Grinding disc speed max | 1950 rpm | 1950 rpm | 1950 rpm | 1950 rpm | |
| Grinding pressure, max | 262kg/577.6 lbs | 283kg/624 lbs | |||
| Walking Speed | 25m/min | 25m/min | 25m/min | 25m/min | |
| TRANSMISSION | |||||
| Type of operation | Self-propelled | Self-propelled | Self-propelled | Self-propelled | |
| DIMENSIONS | |||||
| Product size length | 1823mm | 1823mm | |||
| Product size width | 708mm | 708mm | |||
| Product size height | 1675mm | 1675mm | |||
| Weight (complete product w/o side packed articles) | 497kg/1096 lbs | 525kg/1157 lbs | |||
