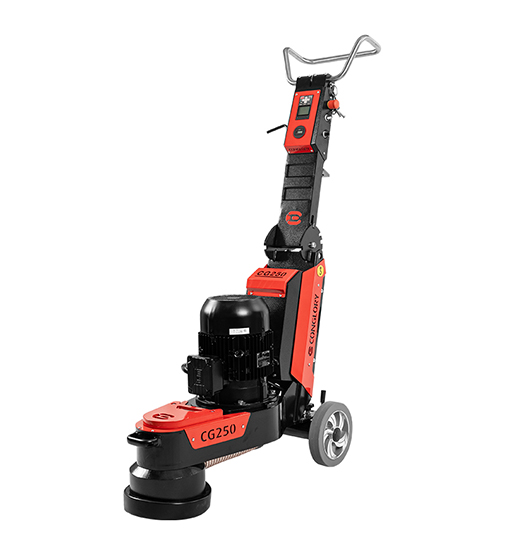

CG250 USPRO
Single-head heavy-duty grinding machine, used for surface preparation such as leveling, roughening, removing old coatings, etc. It can take cup wheel, bush hammer, diamond pad, and resin pads.
✓ High power, high weight
✓ Used for grinding edge and corner
✓ The control sway bar can be front mounted.
✓ High power, high weight
✓ Used for grinding edge and corner
✓ The control sway bar can be front mounted.
product description
Single-head heavy-duty grinding machine, used for surface preparation such as leveling, roughening, removing old coatings, etc. It can take cup wheel, bush hammer, diamond pad, and resin pads.
FEATURES
Discover all features and learn more about the benefits.
-

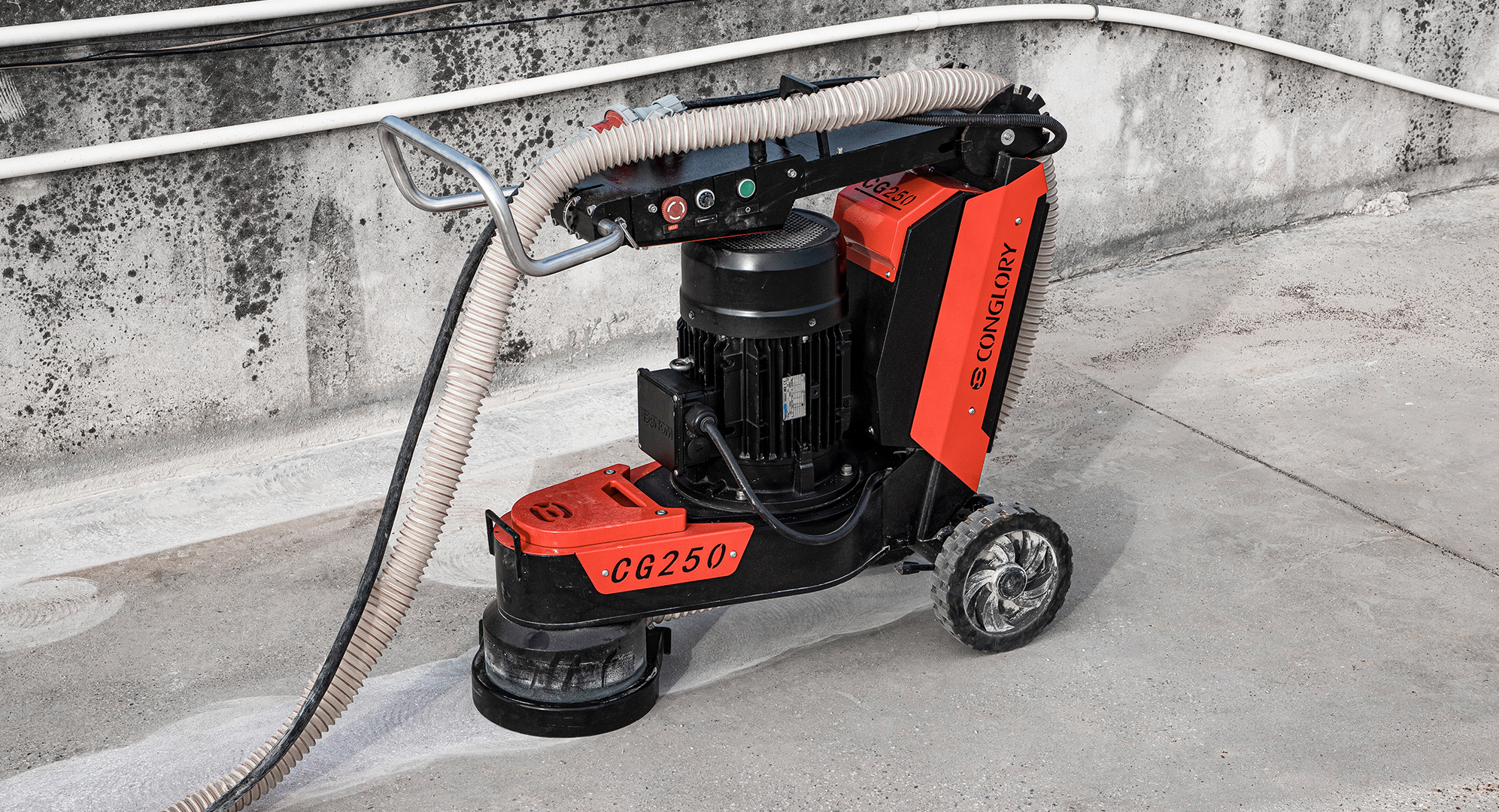

The control sway bar can be front mounted.
You can see the grinding effect of the ground more clearly. In this status, you can also increase the grinding pressure by pressing the handle.
-
-

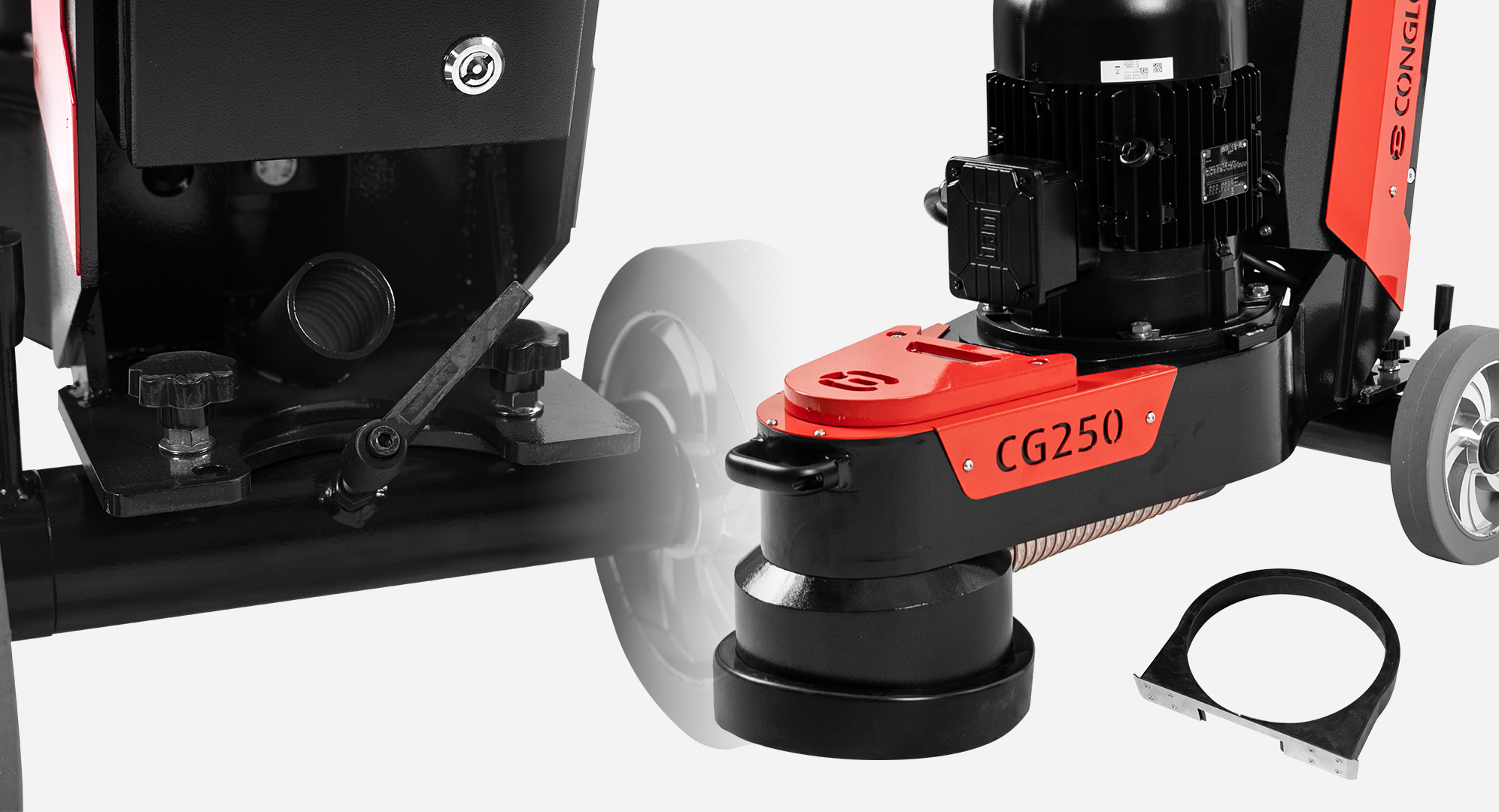

Used for grinding edge and corner
The rear wheel position can adjust the grinding head direction for better grinding of edges and corners.
-
-

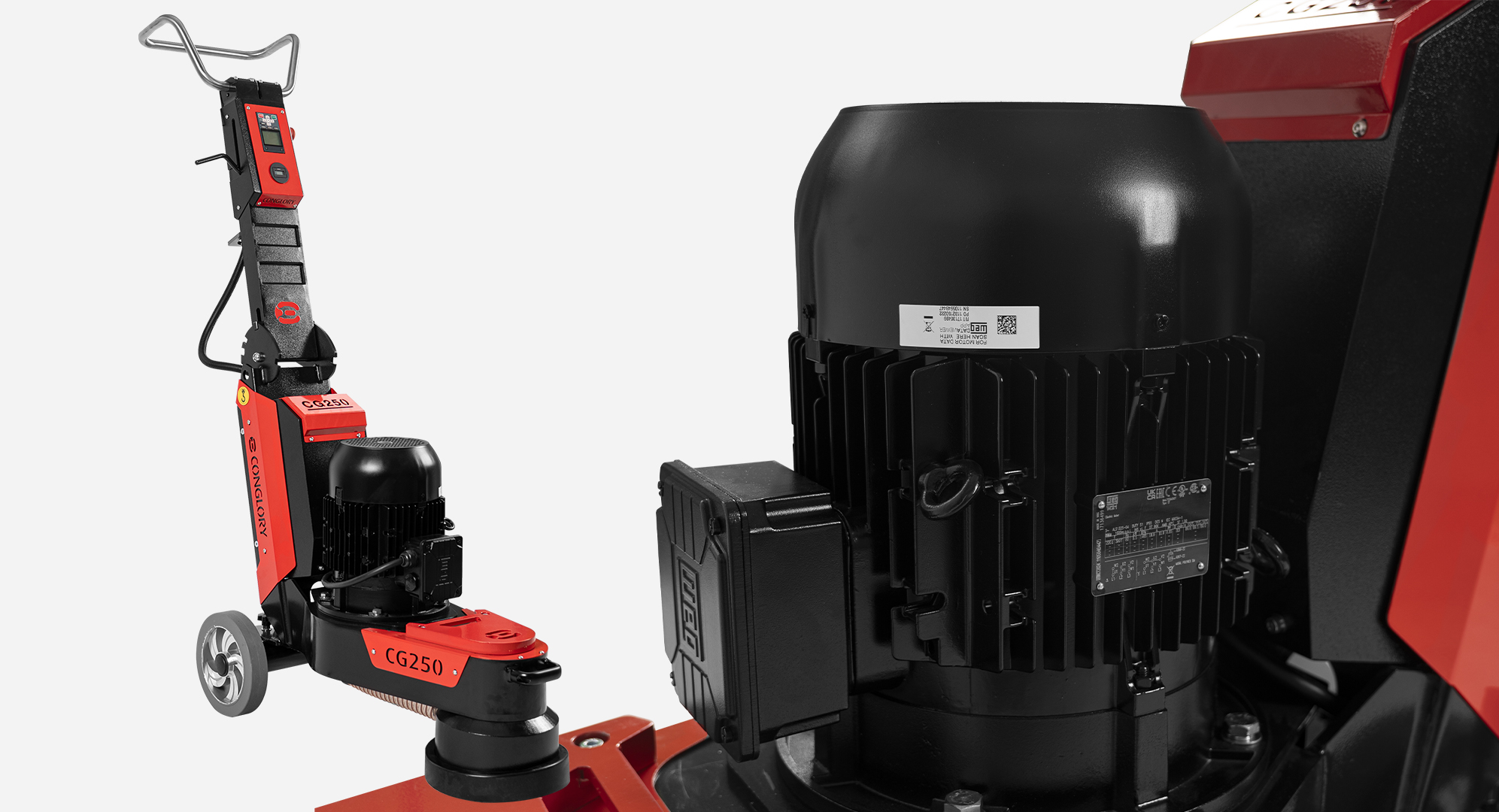

High power, high weight
Motor power 5.5kW, the 182.5 kg can provide greater grinding pressure.
-
feature overview (3)
✓ High power, high weight
✓ Used for grinding edge and corner
✓ The control sway bar can be front mounted.
Machine parameters
| ALL PRODUCTS SPECIFICATION | CG250 USPRO | CG250 ULTRA |
| CG250 USPRO | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 5.5KW | 5.5KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 5.5KW | 5.5KW |
| Phases | 3ph | 3ph |
| Voltage | 200-240V | 380-480V |
| Rated current | 19 A | |
| Frequency | 50-60 Hz | 50-60 Hz |
| Pins | ||
| EQUIPMENT | ||
| Grinding width | 250 mm | 250 mm |
| Number of grinding discs | 1 | 1 |
| Direction of rotation | ||
| Grinding disc diameter | 250 mm | 250 mm |
| Grinding disc speed min | 350rpm | 350rpm |
| Grinding disc speed max | 2000rpm | 2000rpm |
| Grinding pressure, max | 61.5kg/135.6 lbs | |
| Walking Speed | ||
| TRANSMISSION | ||
| Type of operation | Walk-behind | Walk-behind |
| DIMENSIONS | ||
| Product size length | 1739mm | 1739mm |
| Product size width | 435mm | 435mm |
| Product size height | 1631mm | 1631mm |
| Weight (complete product w/o side packed articles) | 183kg/403 lbs | 179kg |
