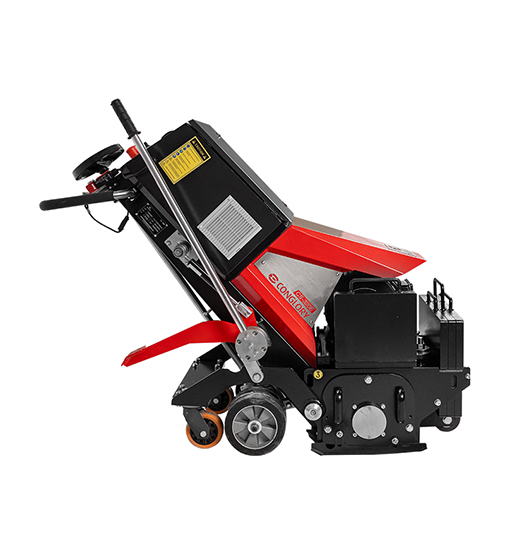

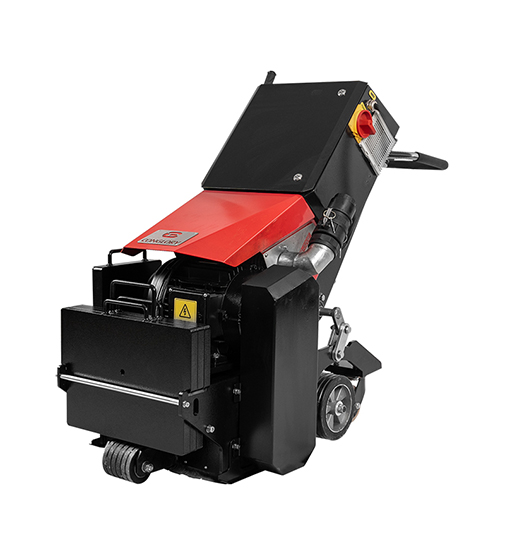

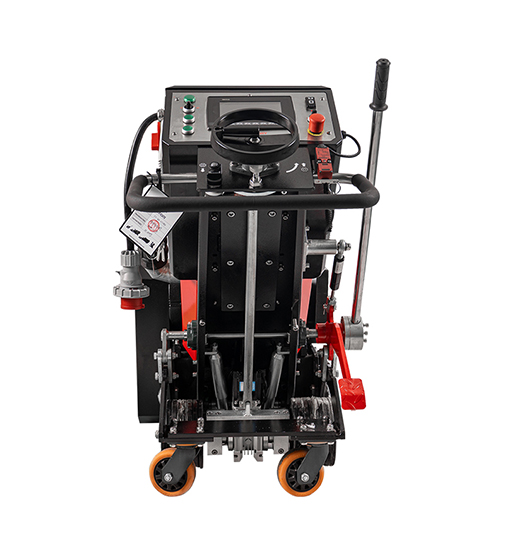

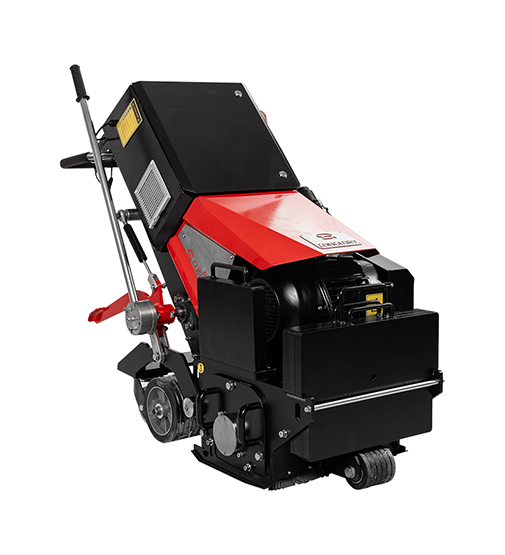

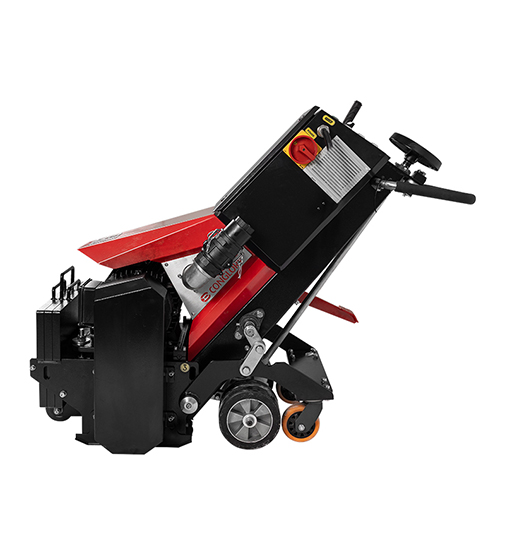

CS-320E
CS-320E scarifier removes difficult coatings such as glue, rubber, thermal plastic and other coatings onconcrete and asphalt surface, With a shaving function on the same machine, it removes almost everything.
✓ The shaving and scarifying functions are easy to switch.
✓ One machine, two functions
✓ Lifting system
✓ The shaving and scarifying functions are easy to switch.
✓ One machine, two functions
✓ Lifting system
product description
CS-320E scarifier removes difficult coatings such as glue, rubber, thermal plastic and other coatings onconcrete and asphalt surface, With a shaving function on the same machine, it removes almost everything
FEATURES
Discover all features and learn more about the benefits.
-

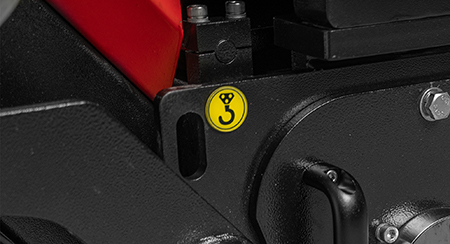

Lifting system
The machine can be lifted in a transportation situation.
-
-

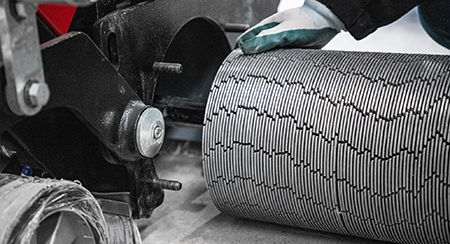

One machine, two functions
One machine can realize shaving and scarifying.
-
-

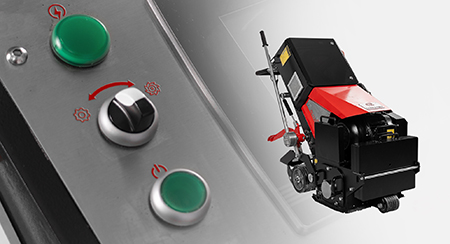

The shaving and scarifying functions are easy to switch
It is not necessary to change the drive belt, or pulley ratios when changing from one cutting drum to another.
-
feature overview (3)
✓ The shaving and scarifying functions are easy to switch.
✓ One machine, two functions
✓ Lifting system
Machine parameters
| ALL PRODUCTS SPECIFICATION | CS-320 USPRO | CS-320 ULTRA |
| CS-320E | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 15KW | 15KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 15KW | 15KW |
| Phases | 3ph | 3ph |
| Voltage | 380-480V | 380-480V |
| Rated current | 26A | 26A |
| Frequency | 50-60 Hz | 50-60 Hz |
| Pins | 3P+E | 3P+E |
| EQUIPMENT | ||
| Grinding width | 320mm | 320mm |
| Working depth | 0-15mm | 0-15mm |
| Operation | 0-23m/min self-propelled | 0-23m/min self-propelled |
| DIMENSIONS | ||
| Product size length | 1370mm | 1370mm |
| Product size width | 680mm | 680mm |
| Product size height | 1115mm | 1115mm |
| Weight (complete product w/o side packed articles) | 350kg+110kg / 771.6 lbs+242.5 lbs weighted iron (excluding hub and cutter) | 350kg+110kg / 771.6 lbs+242.5 lbs weighted iron (excluding hub and cutter) |
