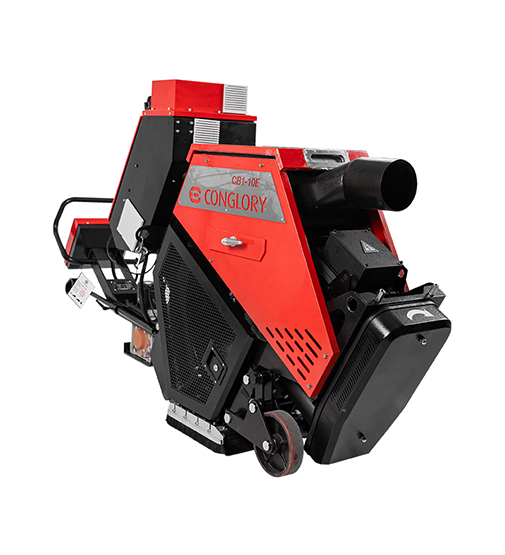

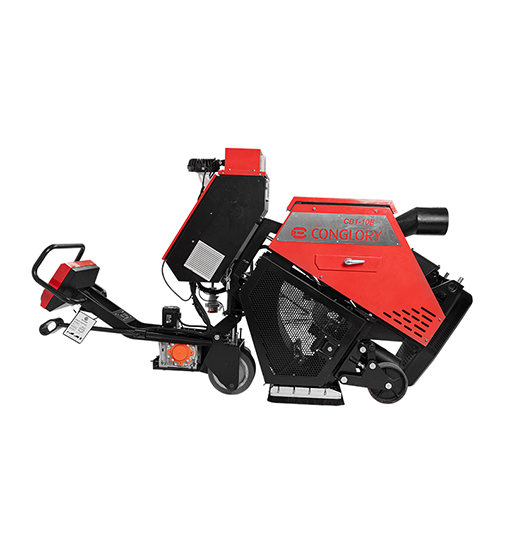

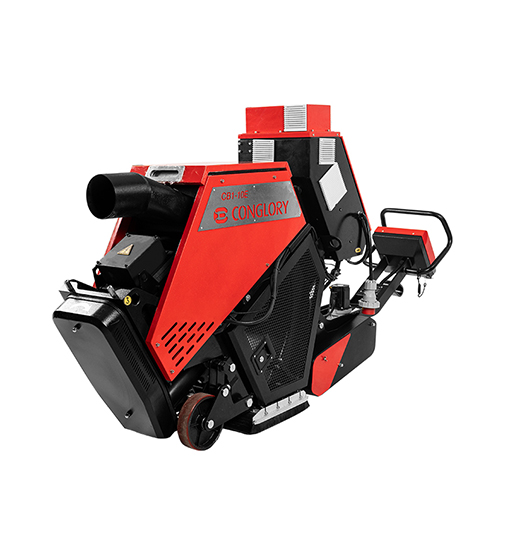

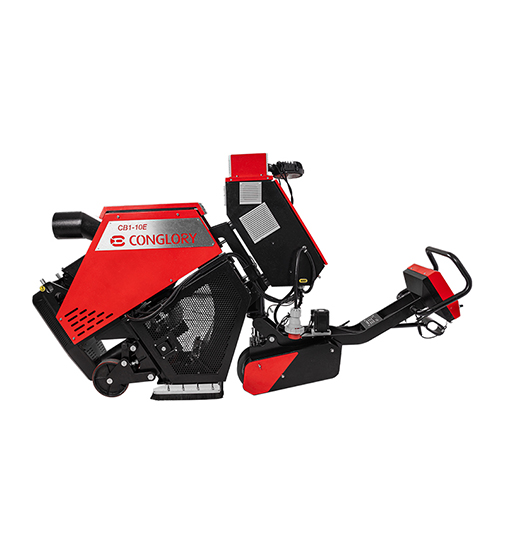

CB1-10E & CD-756B
✓ Intelligent HMl System
✓ Full Digital Servo System
✓ Precision Shot Blasting
✓ Powerful Performance
✓ Adjustable Blasting Parameters
✓ More Functions
✓ Dust-free Operation
✓ High-Efficiency Filtration
✓ Powerful Suction Capability
✓ Easy Maintenance
✓ Durable Construction
✓ Dust-free Operation
✓ More Functions
product description

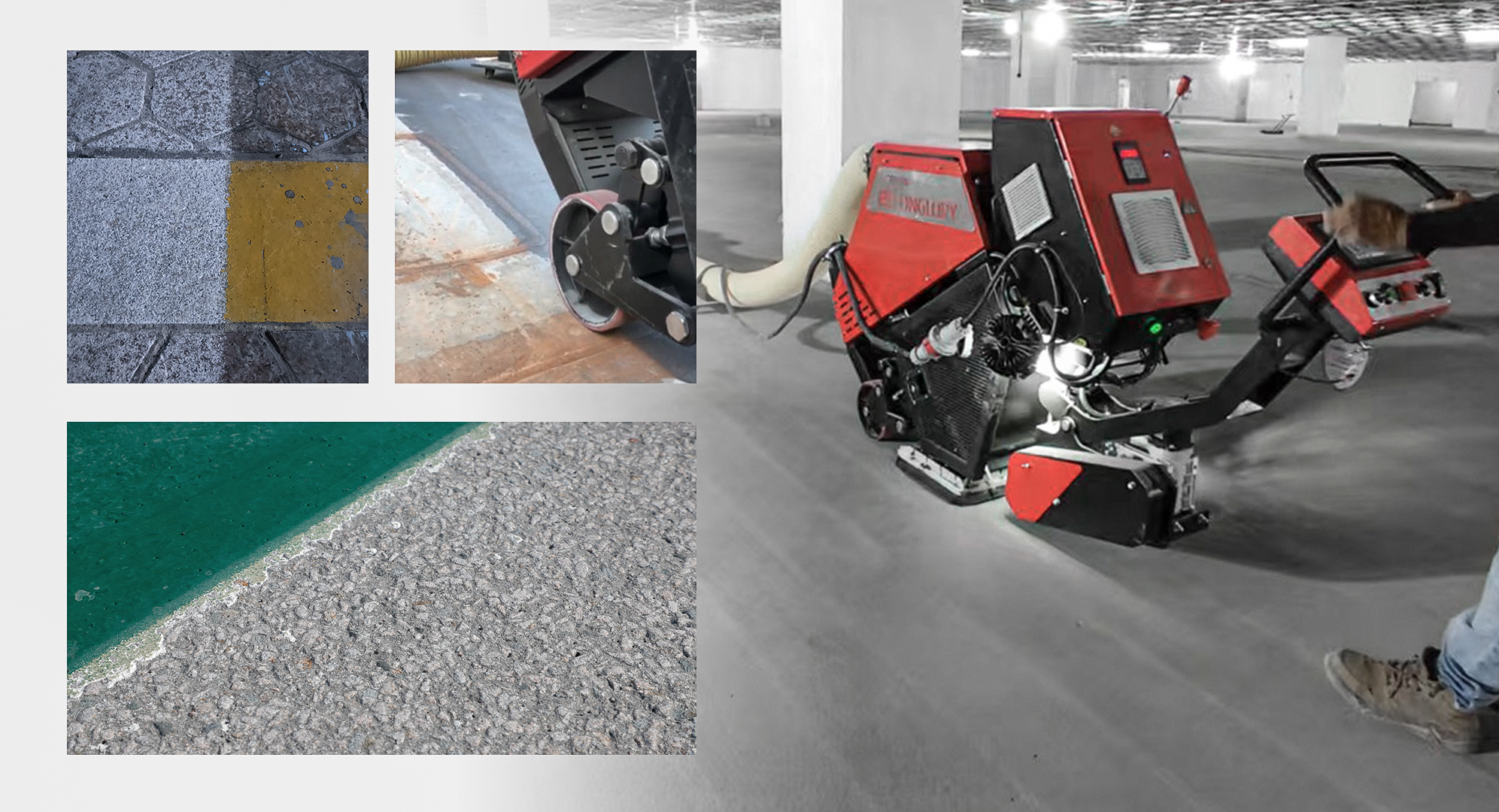

WHAT CAN SHOT BLASTING BE USED FOR? To clean and prepare surfaces | such as steel, concrete and asphalt.To remove top layers | like paint and epoxy.To remove markings & rubber | from highways, runways, industrial floors and more.To improve skid resistance | on surfaces such as sidewalks, bike paths, roads and runways.To generate optical and aesthetics effects | on surfaces like roads, landscape.
FEATURES
Discover all features and learn more about the benefits.
-

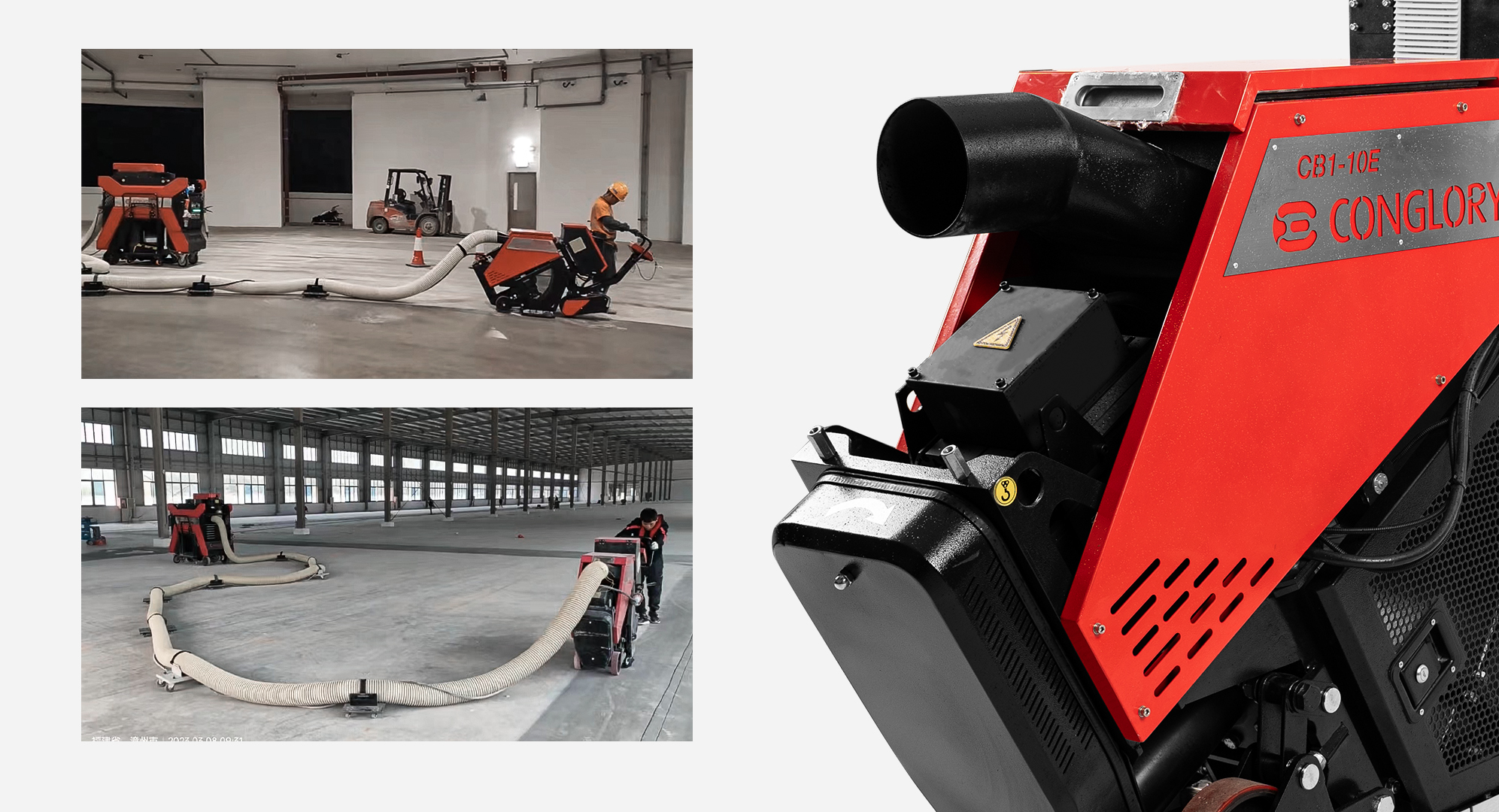

Precision Shot Blasting
Experience unmatched surface perfection as advanced technology effortlessly removes contaminants and surface irregularities, ensuring consistent results.
-
-

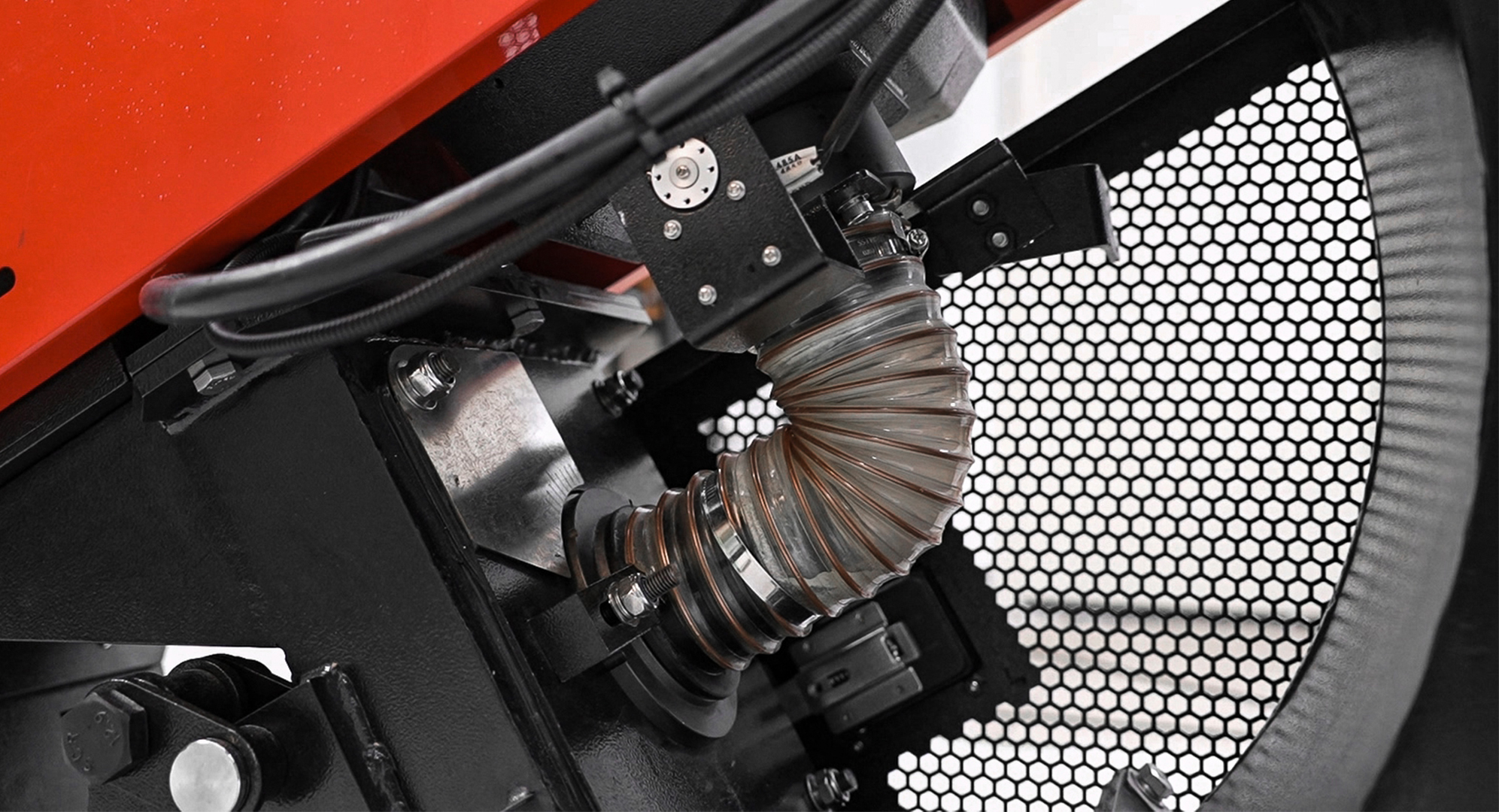

Full Digital Servo System
Due to the design of the servo flow：You don it need to close/open the valve manually；You only need to preset the data of abrasive flow and the adjustable memory；Provides a better experience for base surface treatment.
-
-

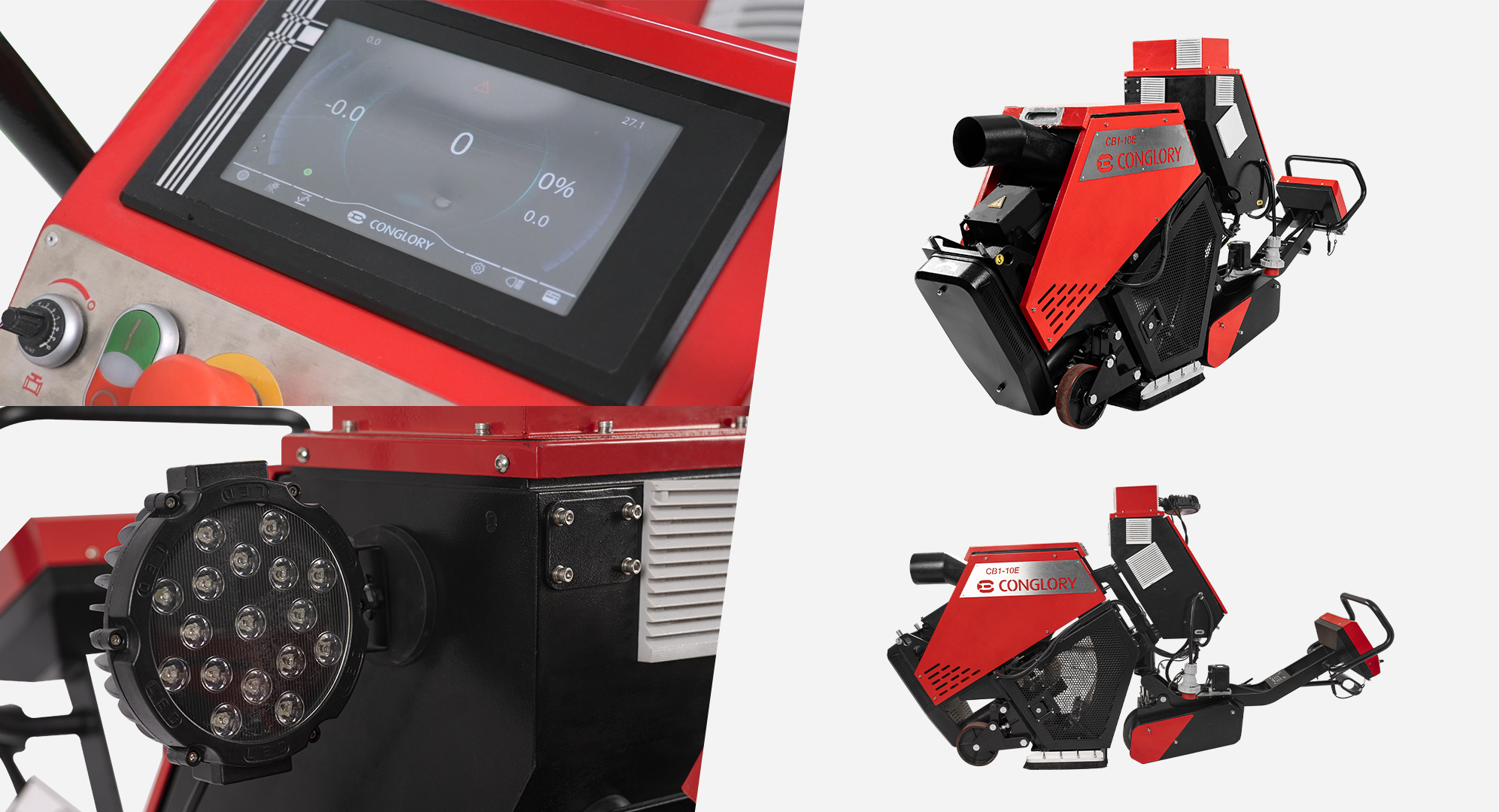

More Functions
Remote Control Digital Screen; Battery Power For Transportation; LED Lights.
-
-
Adjustable Blasting Parameters
Tailor the shot blasting process to fit your project is unique needs. Easily customize blasting parameters, ensuring adaptability across applications, from light preparation to heavy-duty treatments.
-
-
Powerful Performance
Designed with a robust motor 11kw and high-speed blast wheel, the CB1-10E delivers formidable power to handle challenging concrete surfaces, ensuring a swift and efficient workflow on projects of all sizes.
-
-
Precision Shot Blasting
Experience unmatched surface perfection as advanced technology effortlessly removes contaminants and surface irregularities, ensuring consistent results.
-
-

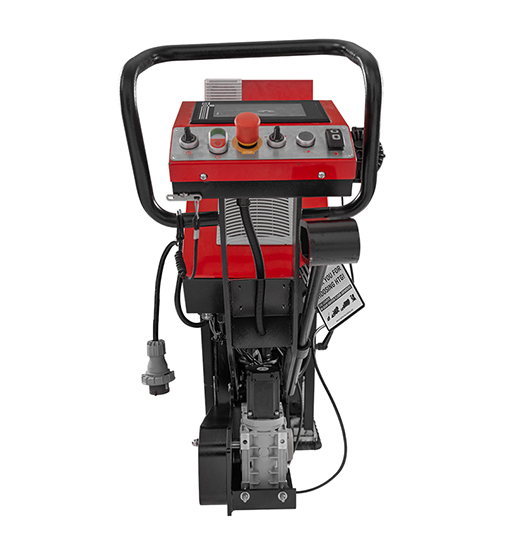

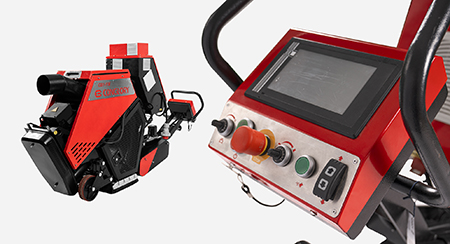

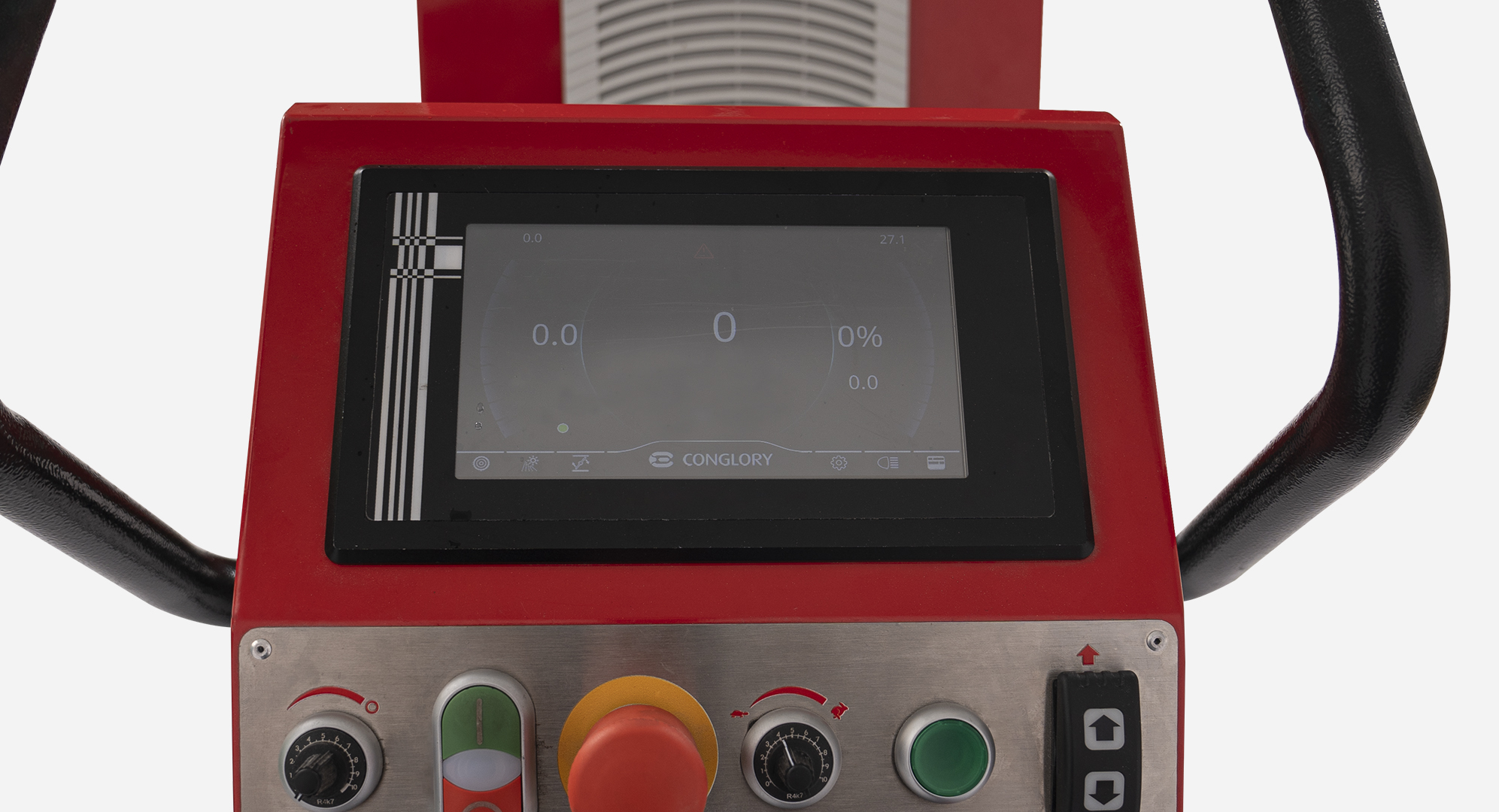

Intelligent HMl System
Rich display, powerful configuration The human-computer interaction function ofthe substrate processing equipment can be easily realized
-
feature overview (13)
✓ Intelligent HMl System
✓ Full Digital Servo System
✓ Precision Shot Blasting
✓ Powerful Performance
✓ Adjustable Blasting Parameters
✓ More Functions
✓ Dust-free Operation
✓ High-Efficiency Filtration
✓ Powerful Suction Capability
✓ Easy Maintenance
✓ Durable Construction
✓ Dust-free Operation
✓ More Functions
Machine parameters
| ALL PRODUCTS SPECIFICATION | CB1-10E USPRO | CB1-10E ULTRA |
| CB1-10E+CD-756B | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 11KW | 11KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 11KW | 11KW |
| Phases | 3ph | 3ph |
| Voltage | 380-480V | 380-480V |
| Rated current | 25 A | |
| Frequency | 50-60 Hz | 50-60 Hz |
| Pins | 3P+E | |
| Walking Speed | 20m/min | |
| EQUIPMENT | ||
| Working width | 250mm | 250 |
| Production Rate | >150㎡/h | >150㎡/h |
| Operation | DIGI-Steer Systems with integrated drive 0-23m/ min self-driver | DIGI-Steer Systems with integrated drive 0-23m/ min self-driver |
| DIMENSIONS | ||
| Product size length | 1200 mm | |
| Product size width | 490 mm | |
| Product size height | 1985 mm | |
| Weight (complete product w/o side packed articles) | 380kg/838 lbs |
| ALL PRODUCTS SPECIFICATION | CD-756B USPRO | CD-756B ULTRA |
| CD-756B | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 8KW | 8KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 8KW | 8KW |
| Phases | 3 ph | 3 ph |
| Voltage | 380-480V | 380-480V |
| Rated current | 19.5A | 19.5A |
| Frequency | 50/60HZ | 50/60HZ |
| Pins | 3P+N+E | 3P+N+E |
| EQUIPMENT | ||
| Suction | 5Kpa/50Mbar | 5Kpa/50Mbar |
| Air Flow | 1600m³/h | 1600m³/h |
| Cartridge Grade | H13 | H13 |
| Filter Area | 12㎡ | 12㎡ |
| DIMENSIONS | ||
| Product size length | 1595mm | 1595mm |
| Product size width | 943mm | 943mm |
| Product size height | 1765mm | 1765mm |
| Weight (complete product w/o side packed articles) | 700kg/1543.2 lbs | 700kg/1543.2 lbs |
