CB1-10E7 & CD-553B
✓ DlGl-Steer
✓ Servo-flow Design
✓ Self-driven
✓ Powerful Performance
✓ Dust-free Operation
product description
CONGLORY is single headed floor grinder has an user friendlydesign with adjustable speed, is an ideal equipment for waterproofing,coating, decorative flooring, decontamination and demolition. It is ideal for leveling uneven floor and removing old paints / coatings / glues.
FEATURES
Discover all features and learn more about the benefits.
-

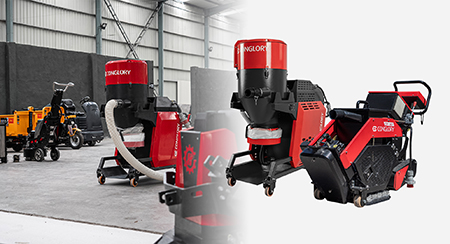

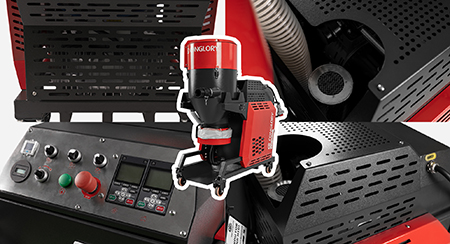

Dust-free Operation
Automatic jet-pulse, with maximum flow 1100m³/h; When paired with CD-553B dust collector, it can prioritize safety and cleanliness on your job site.
-
-
Powerful Performance
Designed with a 7.5kw motor, ensuring a swift and efficient workflow on various projects.
-
-
Self-driven
With integrated battery 0-20m/min drive
-
-

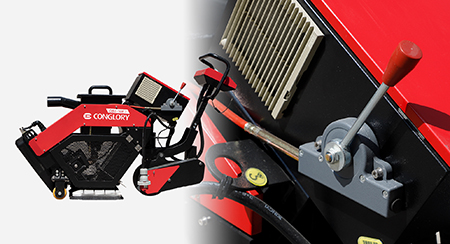

Servo-flow Design
Thanks to the servo-flow design, you don it need to close/open valve by hand and you just preset the data of abrasive flow and adjustable with memory. More friendly design for operation.
-
-

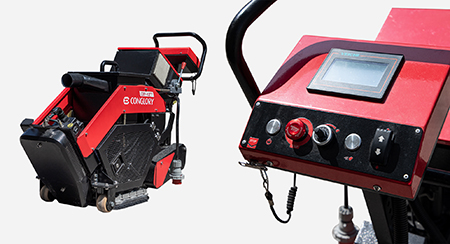

DlGl-Steer
DlGl-Steer is a uniquetechnology developed by Conglory on shot blasting machine in the market.DlGl-steer avoided mis-operation during the shot blasting procession via digital control. And all running datas are controlled by onboard instead of traditional display.
-
feature overview (5)
✓ DlGl-Steer
✓ Servo-flow Design
✓ Self-driven
✓ Powerful Performance
✓ Dust-free Operation
Machine parameters
| ALL PRODUCTS SPECIFICATION | CB1-10E7 USPRO | CB1-10E7 ULTRA |
| CB1-10E7+CD-553B（抛丸机默认搭配吸尘器） | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 5.5KW | 5.5KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 5.5KW | 5.5KW |
| Phases | 3ph | 3ph |
| Voltage | 200-240V | 200-240V |
| Rated current | 31A | |
| Frequency | 50-60 Hz | 50-60 Hz |
| EQUIPMENT | ||
| Working width | 250mm | 250mm |
| Operation | DIGI-Steer Systems with integrated drive 0-23m/ min self-driver | |
| DIMENSIONS | ||
| Product size length | 1000mm | |
| Product size width | 530mm | |
| Product size height | 1660mm | |
| Weight (complete product w/o side packed articles) | 294kg/648 lbs |
| ALL PRODUCTS SPECIFICATION | CD-553B USPRO | CD-553B ULTRA | |
| CD-553B | |||
| ENGINE | |||
| Engine Power (As rated by the engine manufacturer) | 7.5KW | 7.5KW | 5.5KW |
| MOTOR | |||
| Power source | Corded | Corded | Corded |
| Rated input power | 7.5KW | 7.5KW | 5.5KW |
| Phases | 3 ph | 3 ph | 3 ph |
| Voltage | 200-240V | 380-480V | 380-480V |
| Rated current | 35.7A | 14.9A | 13.3A |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Pins | 3P+N+E | 3P+N+E | 3P+N+E |
| EQUIPMENT | |||
| Suction | 40Kpa/400Mbar | 40Kpa/400Mbar | 40Kpa/400Mbar |
| Air Flow | 0-1000m³/h | 0-1000m³/h | 0-600m³/h |
| Cartridge Grade | H13 | H13 | H13 |
| Filter Area | 3.36㎡ | 3.36㎡ | 3.36㎡ |
| TRANSMISSION | |||
| Type of operation | Walk-behind | Walk-behind | Walk-behind |
| DIMENSIONS | |||
| Product size length | 1370mm | 1370mm | 1370mm |
| Product size width | 645mm | 645mm | 645mm |
| Product size height | 1490mm | 1490mm | 1490mm |
| Weight (complete product w/o side packed articles) | 269kg/593 lbs | 269kg/593 lbs | 269kg |
