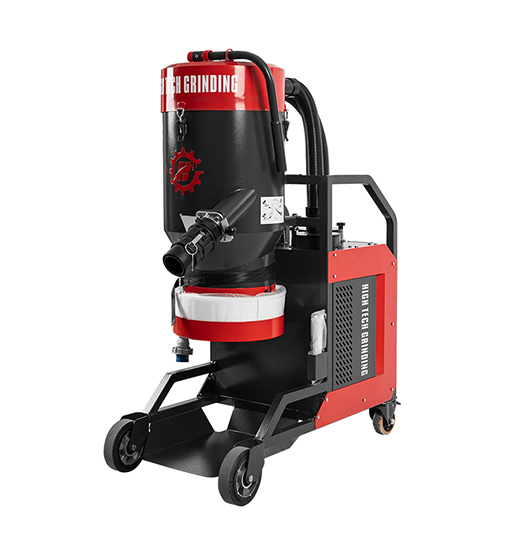

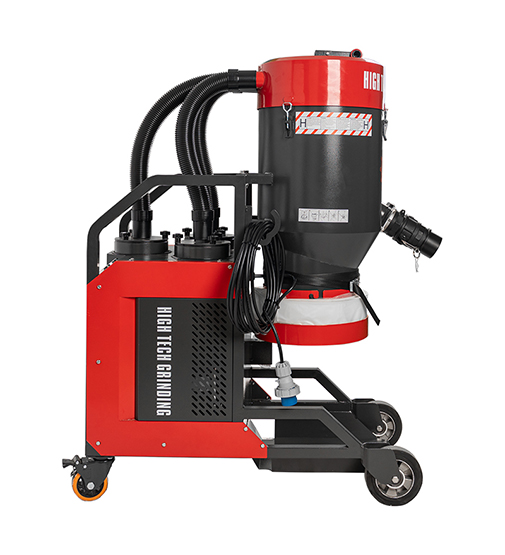

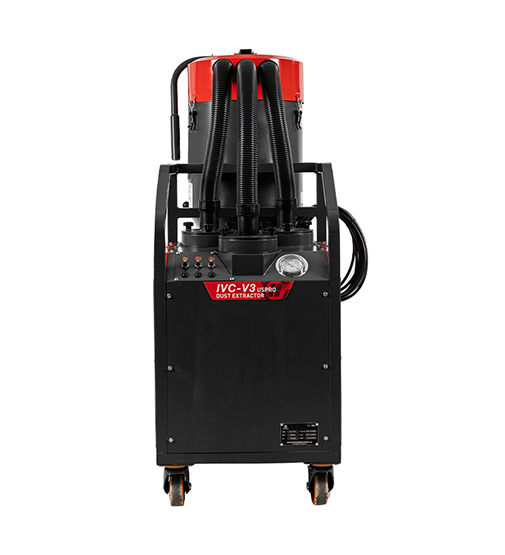

Dust Extractor
IVC-V3
✓ Hepa Filter
✓ Air pulse cleaning
✓ Two stages filter
✓ Independently motors
✓ Inclined hose input
✓ Longopac bag
✓ Compact design
product description

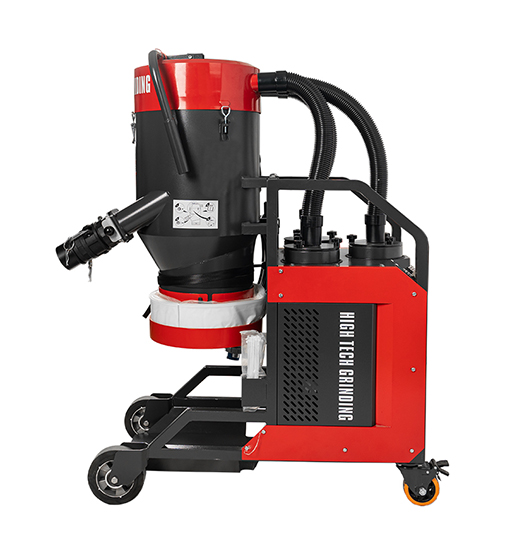

Industrial vacuum cleaner IVC-V3 has the independently and silence motor, it is very important for us to provide a dust-free working environment when do floor grinding and polishing, it can be used either alone or together with grinders or milling machines to provide a dust-free working environment too.
FEATURES
Discover all features and learn more about the benefits.
-
Two stages filter
Two stages vacuum design to keep you away from the invisiable dust. First stage captures the larger particle and collected in the Longopac bag system. Second stage filter separates the unhealthy dust that is invisiable to the eyes.
-
-

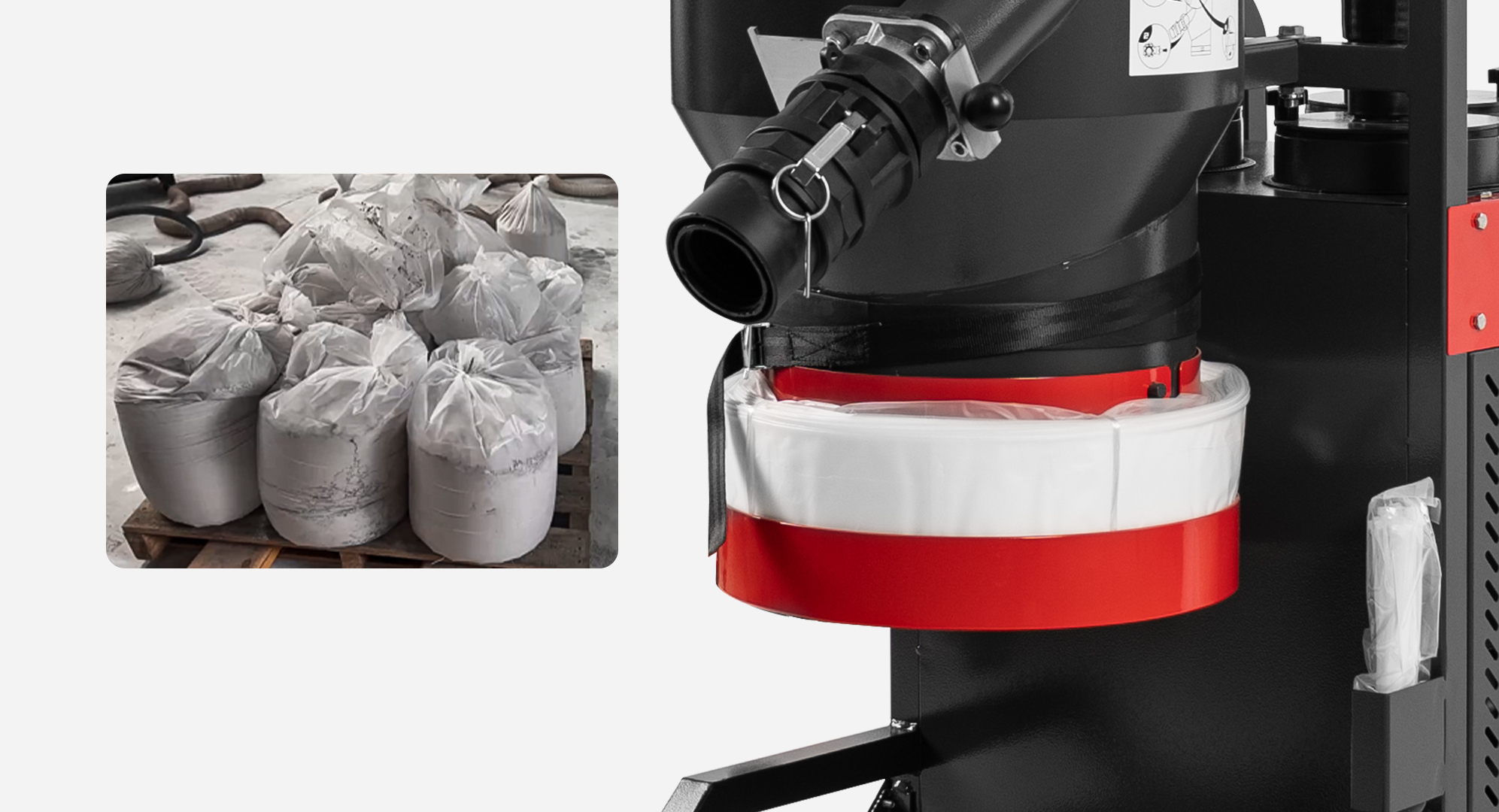

Longopac bag
Continue dust bag system is developed for professional users and optimal in their daily work. It is a more efficient and economical choice than regular waste bags with a combined handling of both waste and packaging
-
-

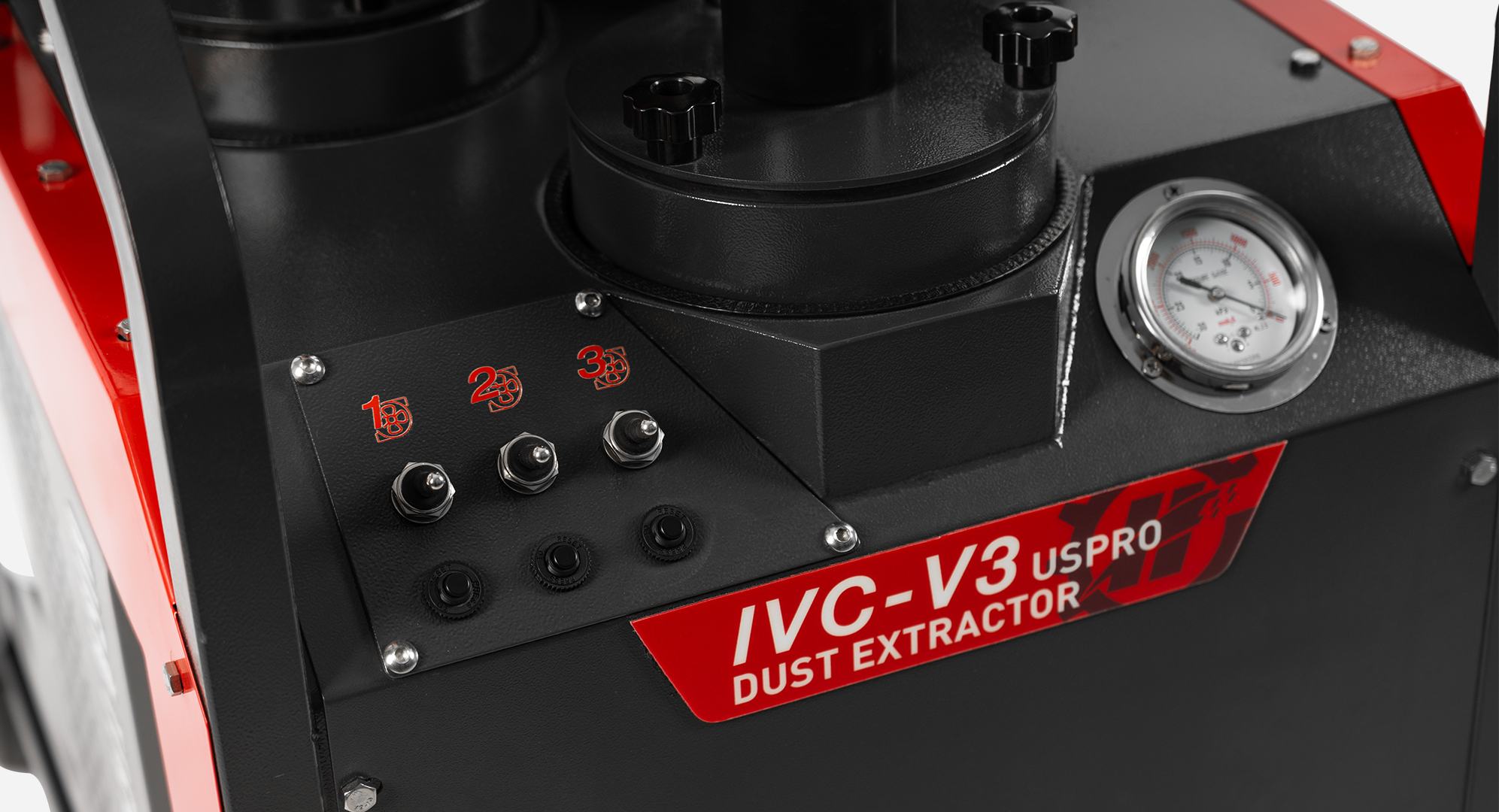

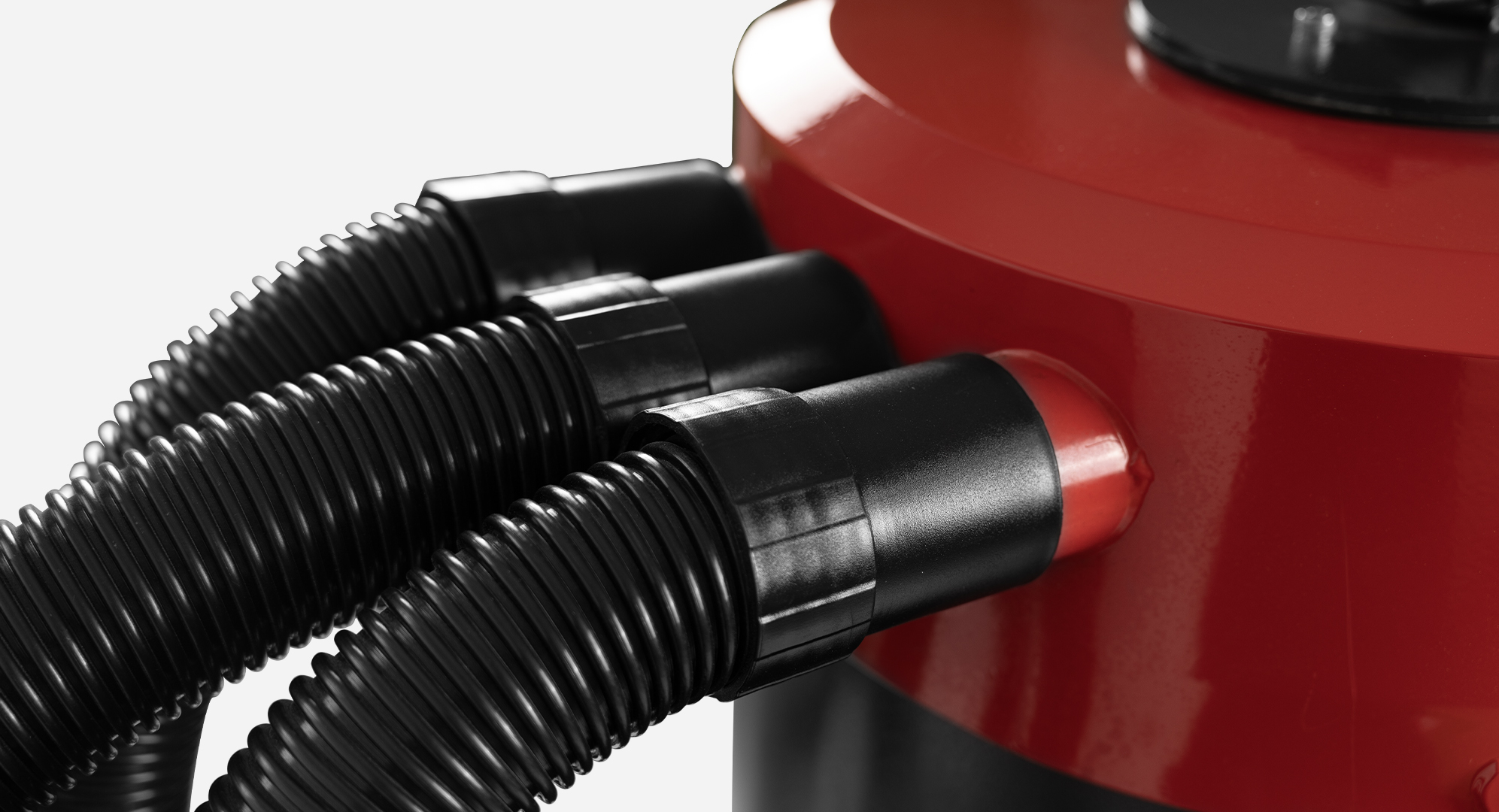

Independently motors
Three independently controlled motors, we can choose the wanted motors to start working according to the real floor conditions.
-
-

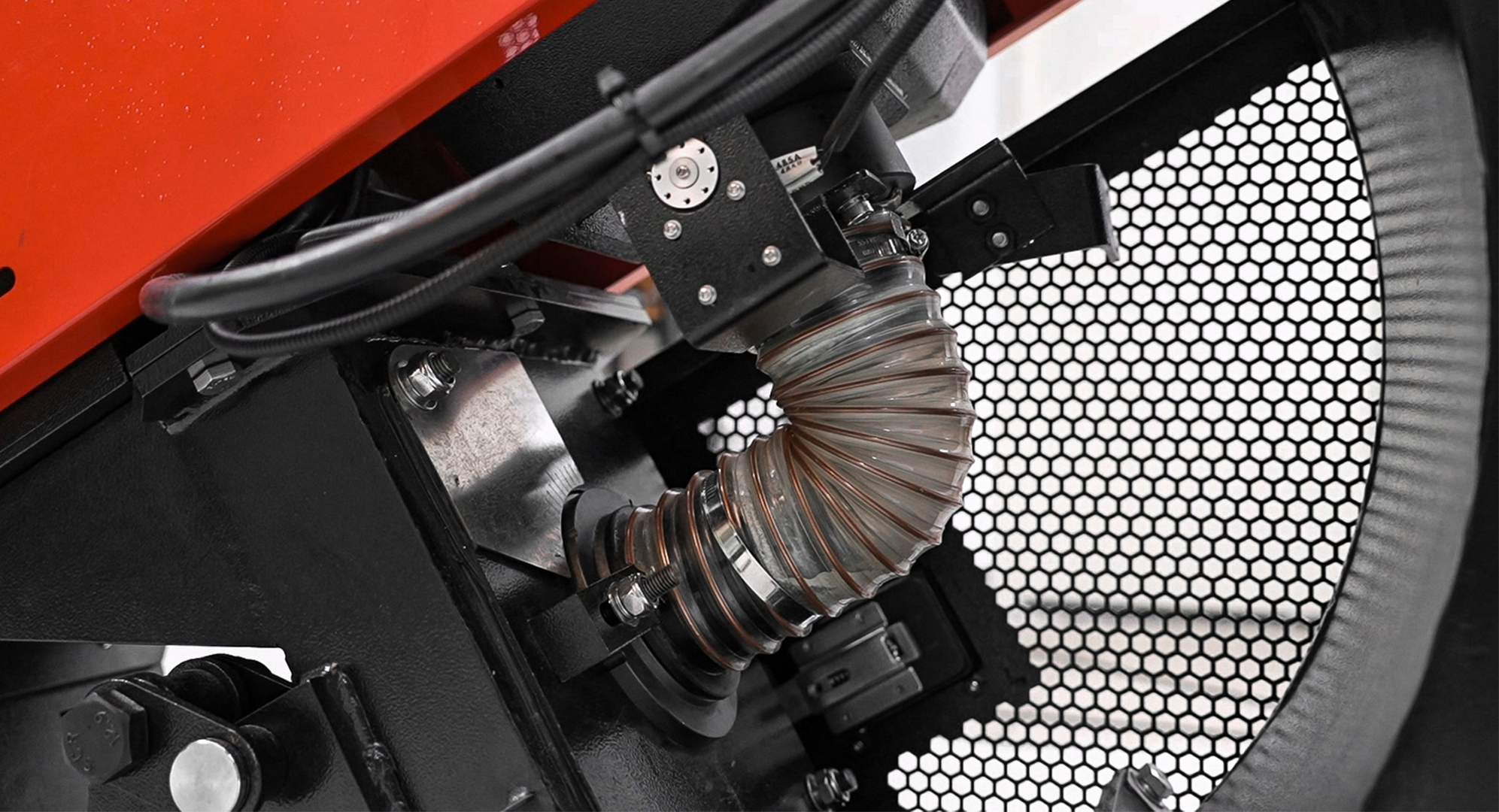

Inclined hose input
Inclined hose input, more conducive to the suction hose, guide the air flow to reduce unnecessary bending and breakage.
-
-

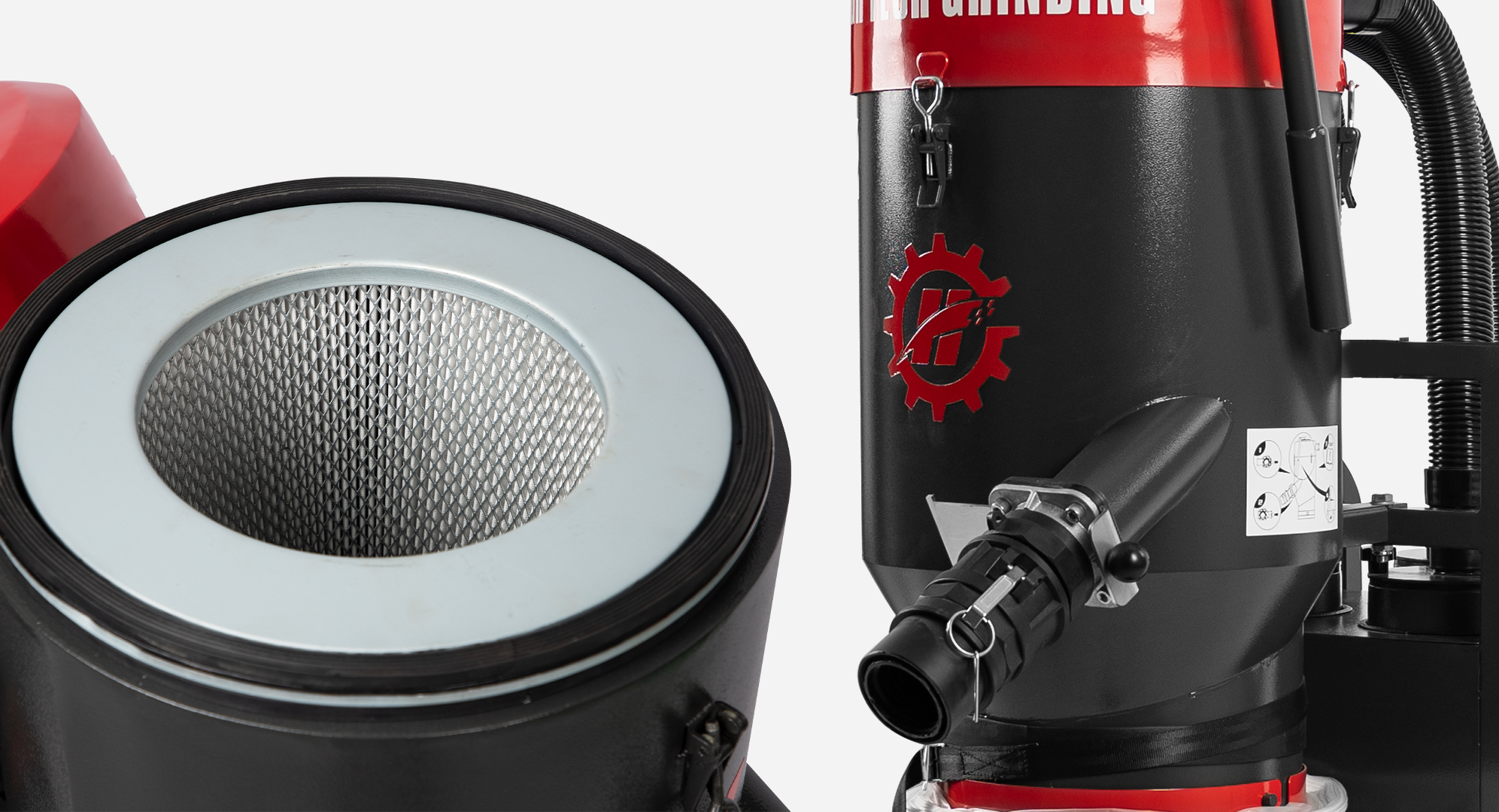

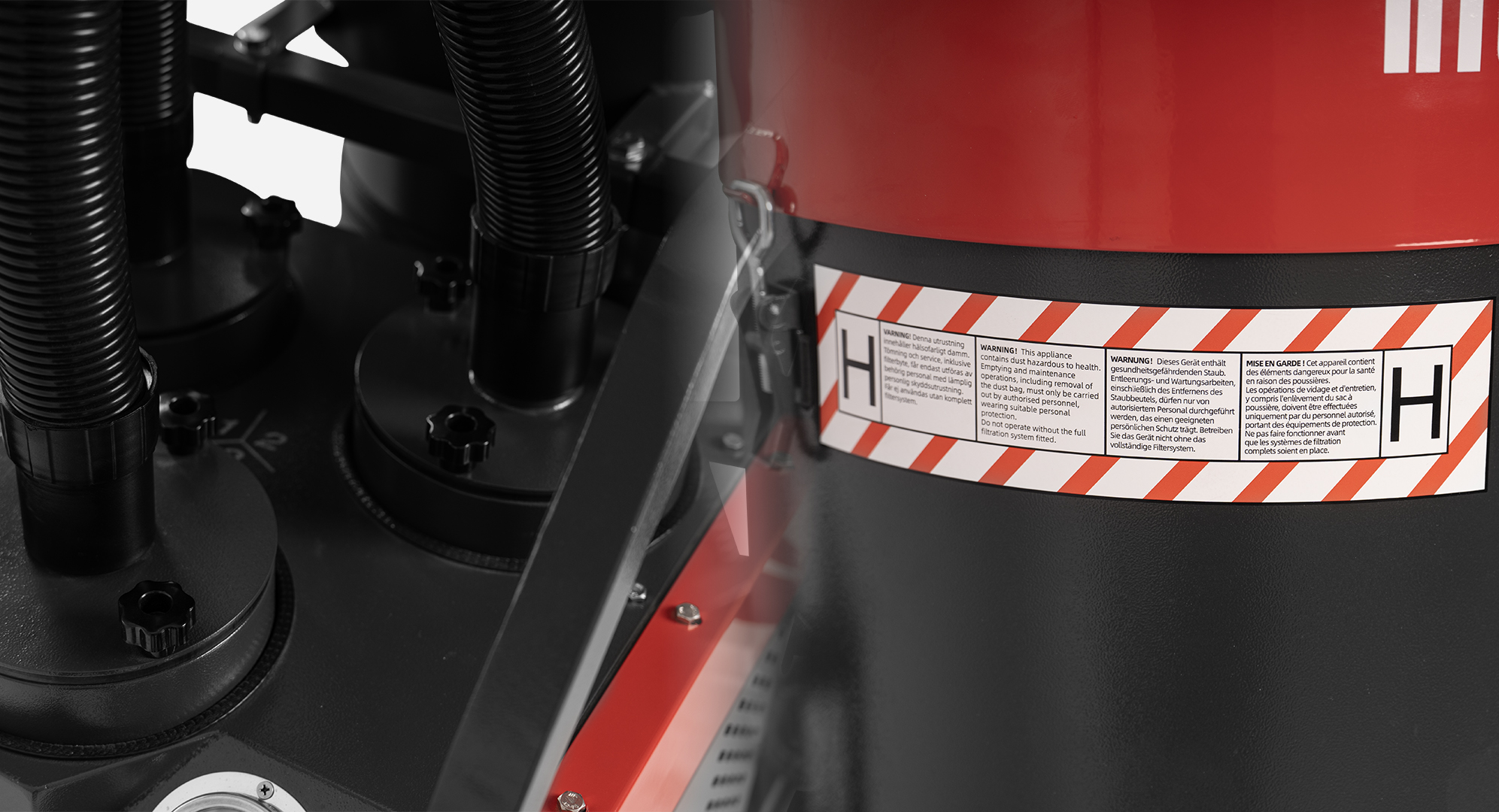

Hepa Filter
Hepa filter for the main filter and the secondary filter to keep our commitment to the air quality which we lives on.
-
-

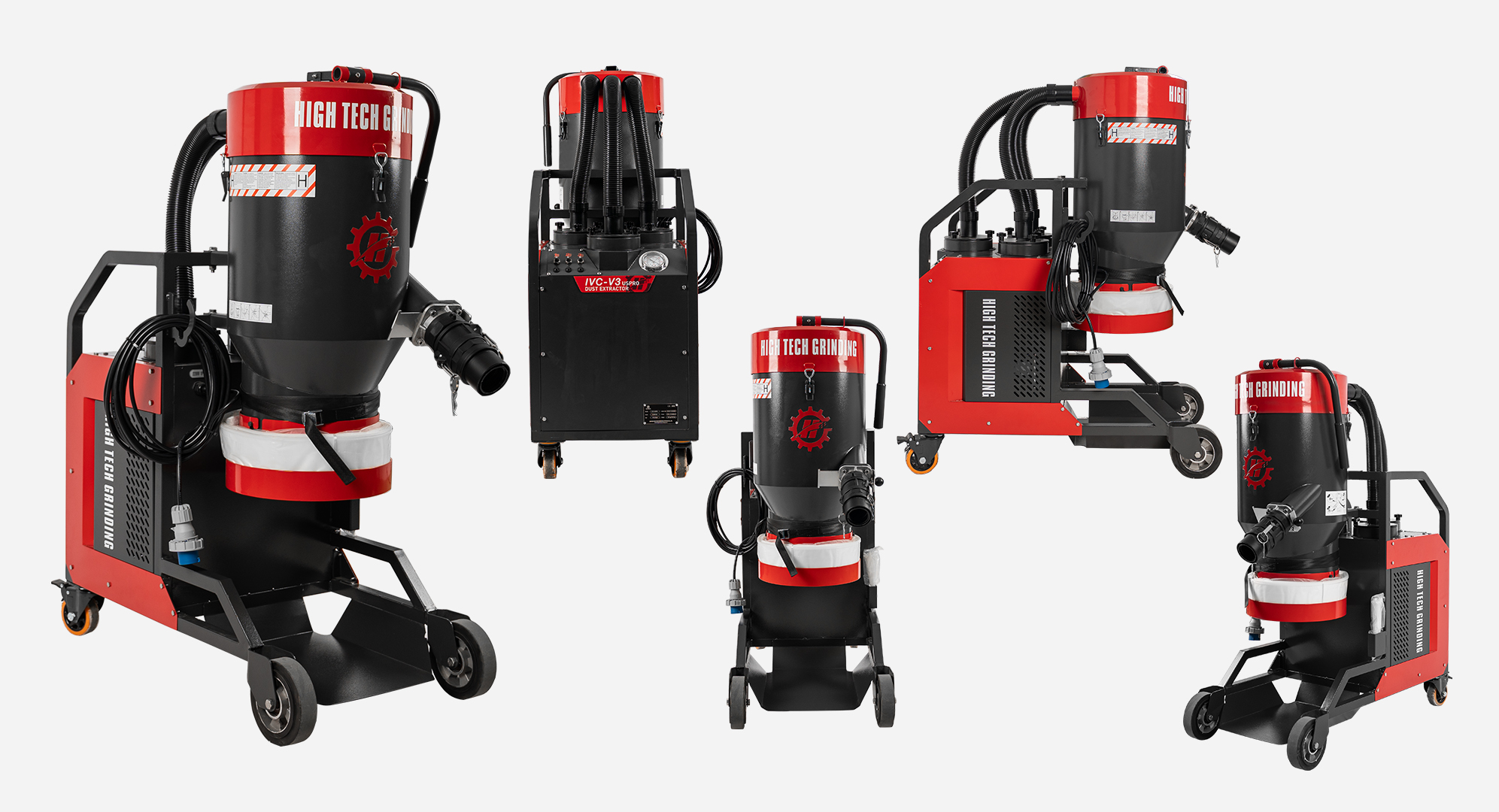

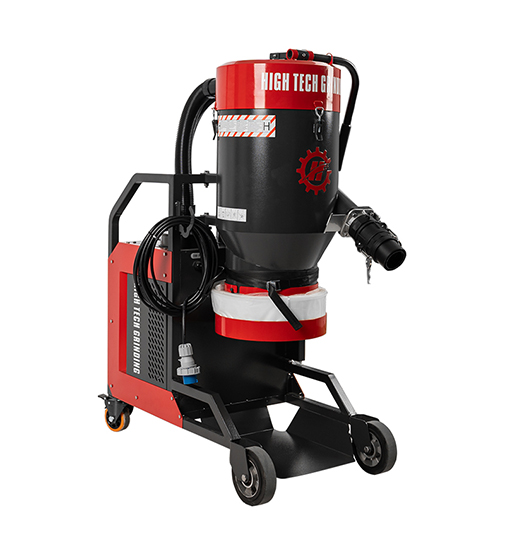

Compact design
The whole machine is light and compact, equipped with 160mm aluminum wheels (rear) and universal wheels(front), which is very convenient for transportation and does not take up a lot of space. The overall size is as small as 95*50*115cm.
-
-
Air pulse cleaning
Through the difference in internal and external air pressure, the pulse back blowing can easily clean the dust on the filter element, which is more friendly to the surface of the filter element and does not cause damages.
-
feature overview (7)
✓ Hepa Filter
✓ Air pulse cleaning
✓ Two stages filter
✓ Independently motors
✓ Inclined hose input
✓ Longopac bag
✓ Compact design
Machine parameters
| ALL PRODUCTS SPECIFICATION | IVC-V3 USPRO | IVC-V3 ULTRA |
| IVC-V3 | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 3.3KW | 3.3KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 3.3KW | 3.3KW |
| Phases | 1 ph | 1 ph |
| Voltage | 200-240V/ 110v | 200-240V |
| Rated current | 13.5A/30A | 13.5A |
| Frequency | 50 / 60HZ | 50HZ |
| Pins | 1p+n+e | 1p+n+e |
| EQUIPMENT | ||
| Suction | 22Kpa/220Mbar | 22Kpa/220Mbar |
| Air Flow | 537m³/h CFM=*0.5886 | 537m³/h |
| Cartridge Grade | H13 | H13 |
| Filter Area | 2.8㎡ | 2.8㎡ |
| Maximum Flow | 537m³/h | 537m³/h |
| Filter Cleaning | Jet pulse by manual | Jet pulse by manual |
| Hose | 50mm | 50mm |
| Collection | continuous drop-down bag | continuous drop-down bag |
| DIMENSIONS | ||
| Product size length | 1050mm | 1050mm |
| Product size width | 550mm | 550mm |
| Product size height | 1300mm | 1300mm |
| Weight (complete product w/o side packed articles) | 82.5kg/182 lbs | 81.5kg/179.7 lbs |
