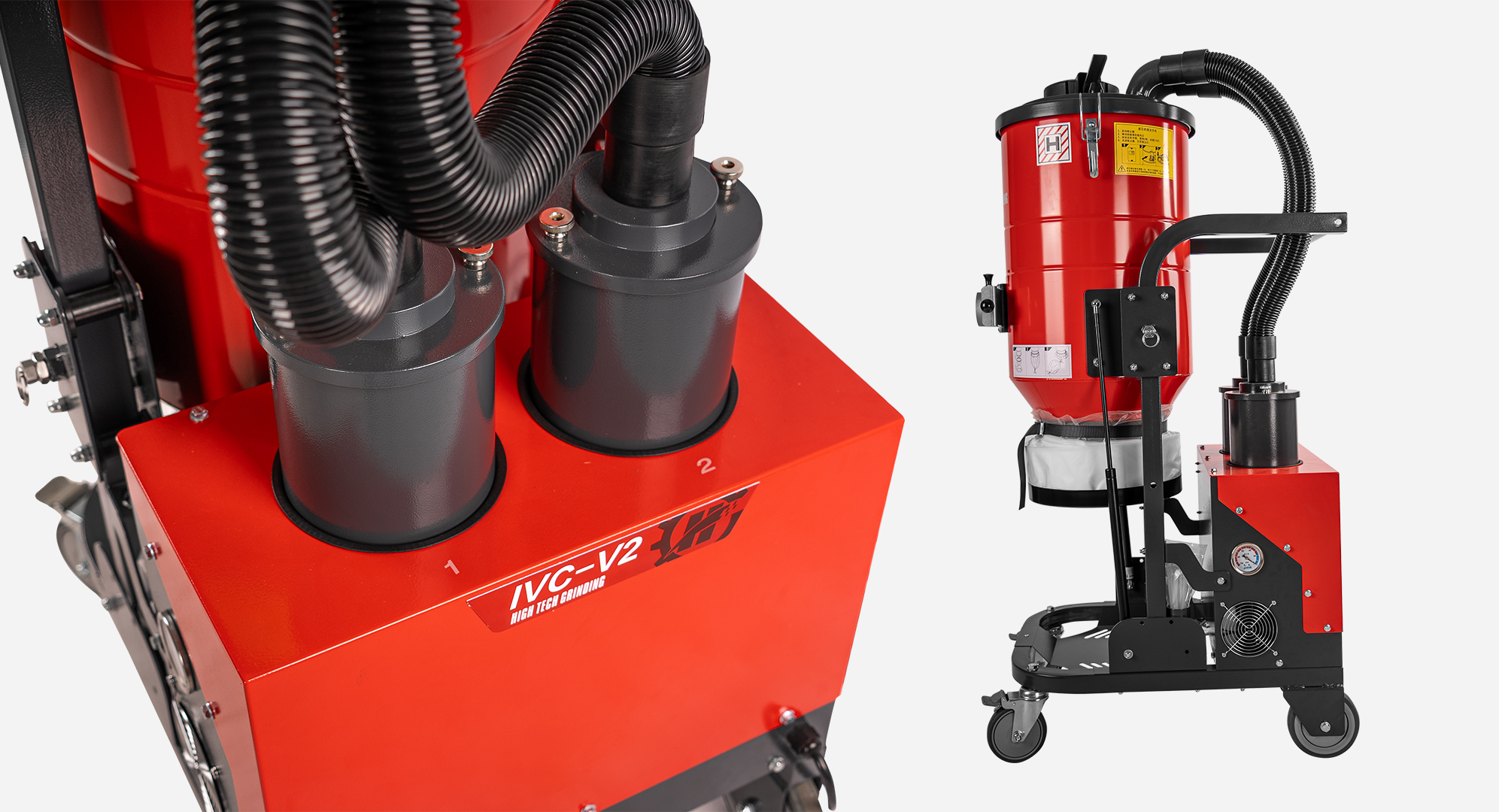

Dust Extractor
IVC-V2
✓ High quality drive fan
✓ Two stages filter
✓ No clogging, effective dust removal
✓ Timing function
✓ Compact design
✓ Longopac bag
product description

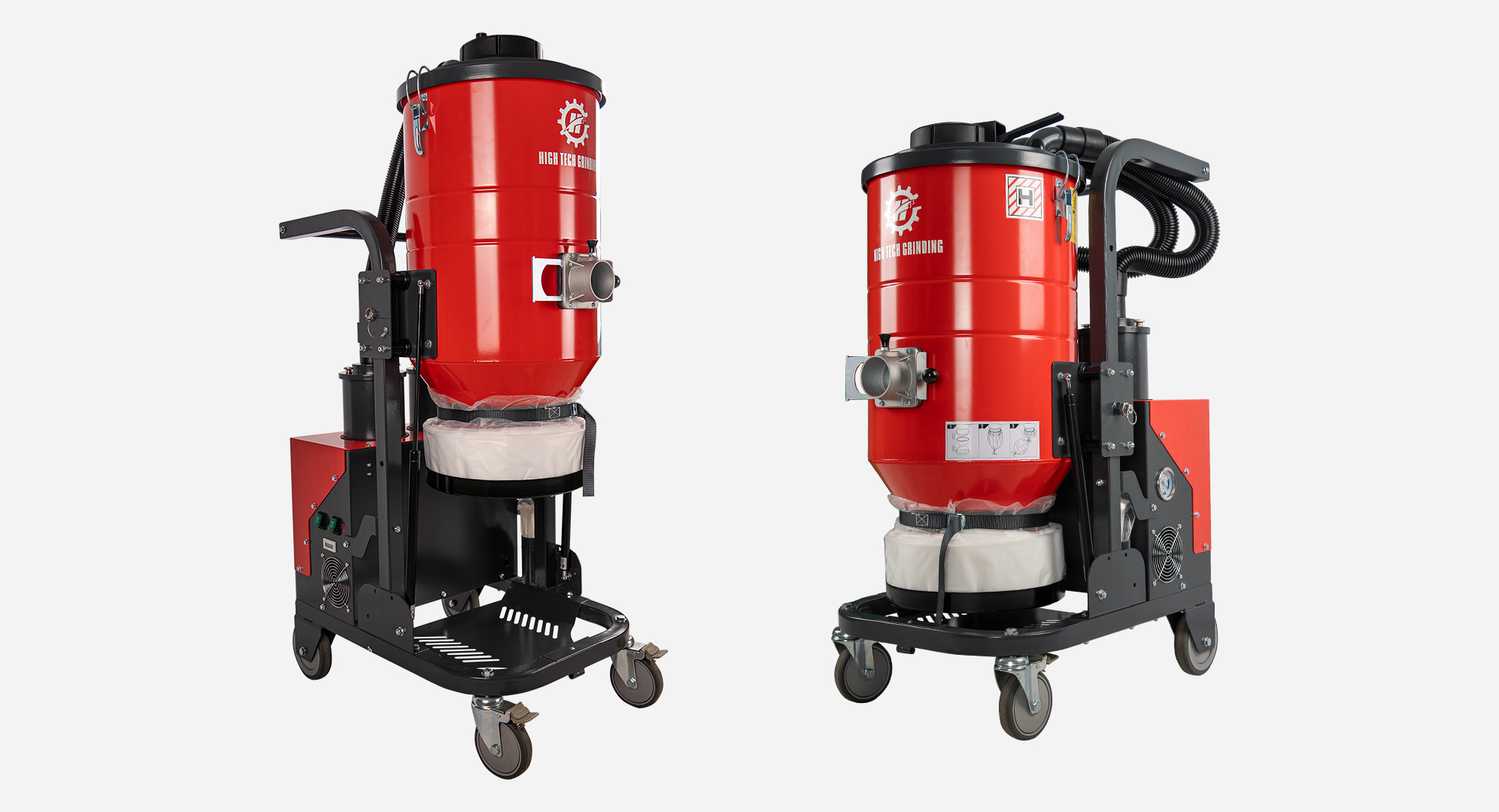

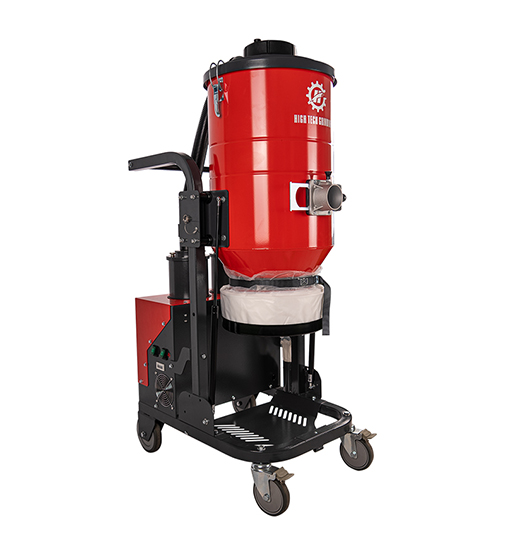

IVC-V2 is an industrial vacuum cleaner with single-phase 220V power supply, 2.4KW motor, Longopac bag, two-stage high-efficiency filter cartridge filtration and manual air pulse cleaning. It is mainly used with grinding machine for dust collection and floor cleaning.
FEATURES
Discover all features and learn more about the benefits.
-

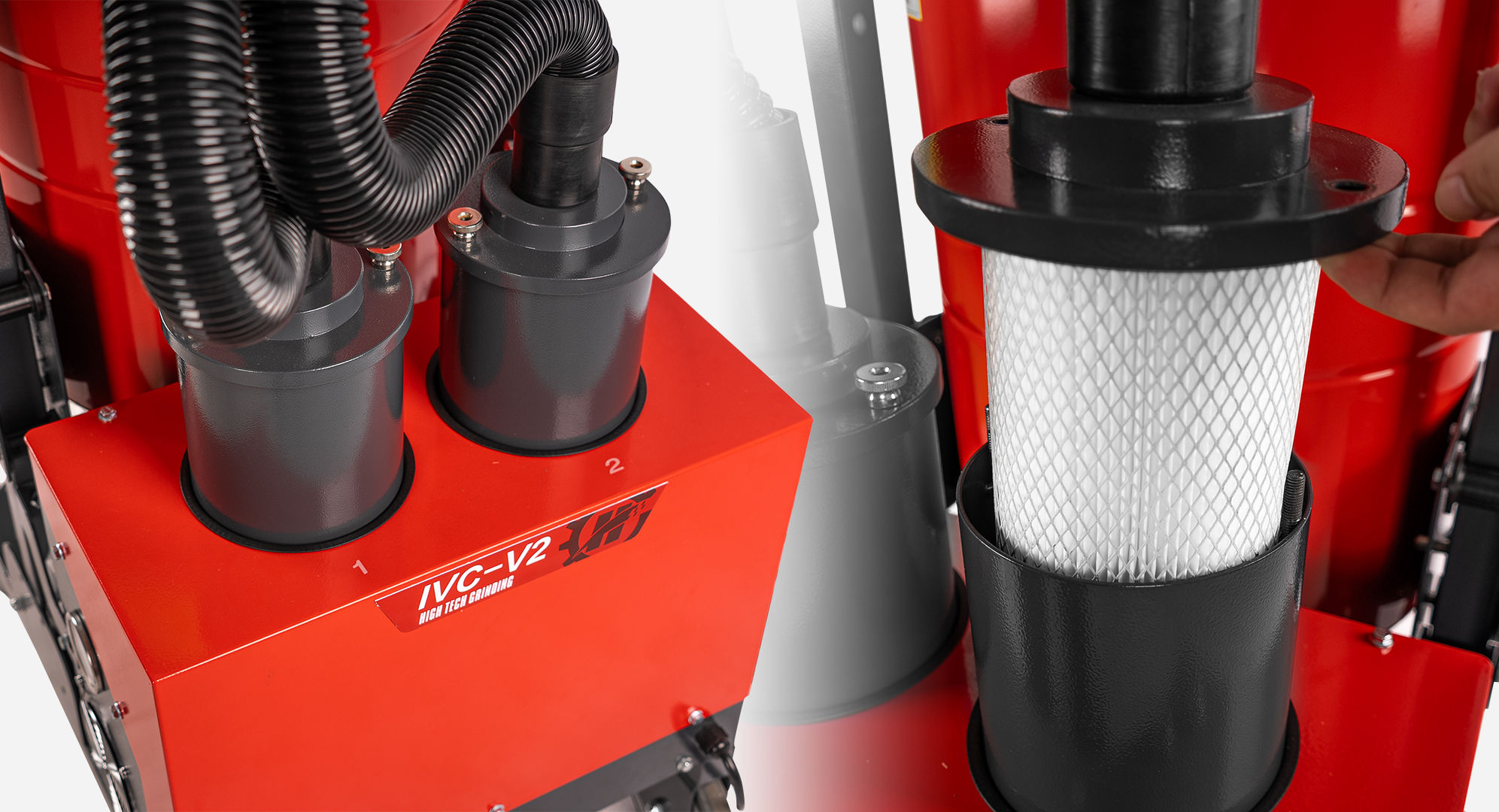

Two stages filter
Equipped with two-stage high-efficiency membrane filter cartridges, the filtration efficiency reaches H13 for 0.3μm dust, allowing the dust-containing gas inhaled by the equipment to be purified more cleanly.
-
-
No clogging, effective dust removal
After the industrial vacuum cleaner has been working for a period of time, a certain amount of dust will adhere to the filter surface, and when it accumulates to a certain extent, it will clog the filter. This equipment is designed with a dust vibration structure: back-blowing dust removal. This structure effectively cleans the dust attached to the surface of the filter cartridge, allowing the dust to separate from the surface of the filter cartridge, ensuring effective ventilation of the filter and continuous improvement of the efficiency of the dust removal equipment.
-
-

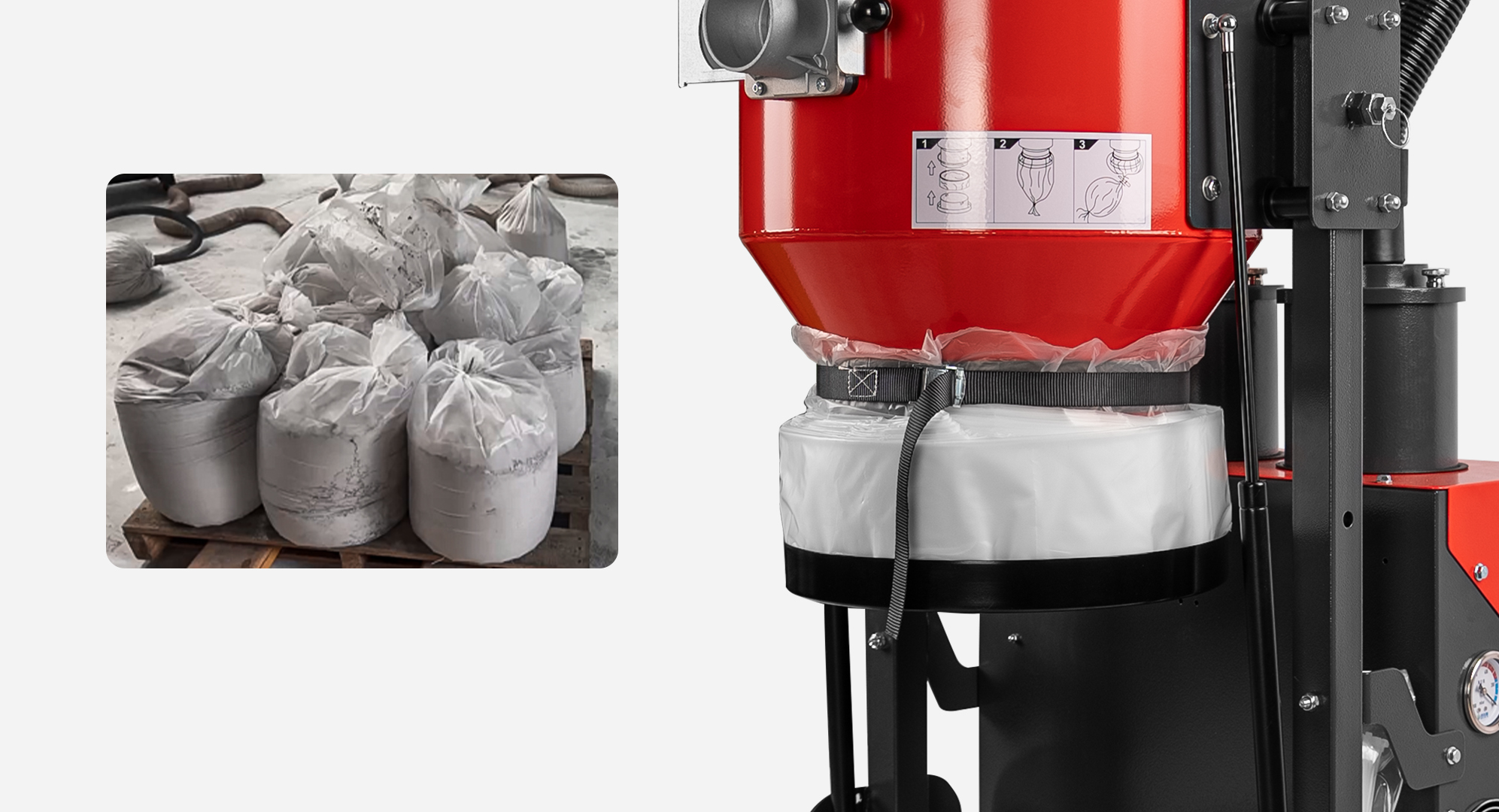

Longopac bag
Continue dust bag system is developed for professional users and optimal in their daily work. It is a more efficient and economical choice than regular waste bags with a combined handling of both waste and packaging
-
-

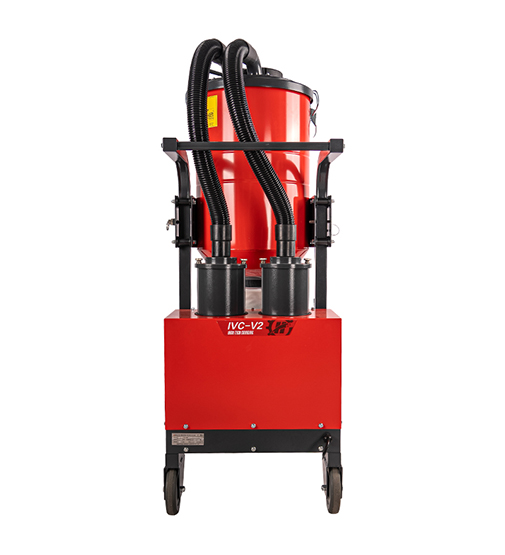

High quality drive fan

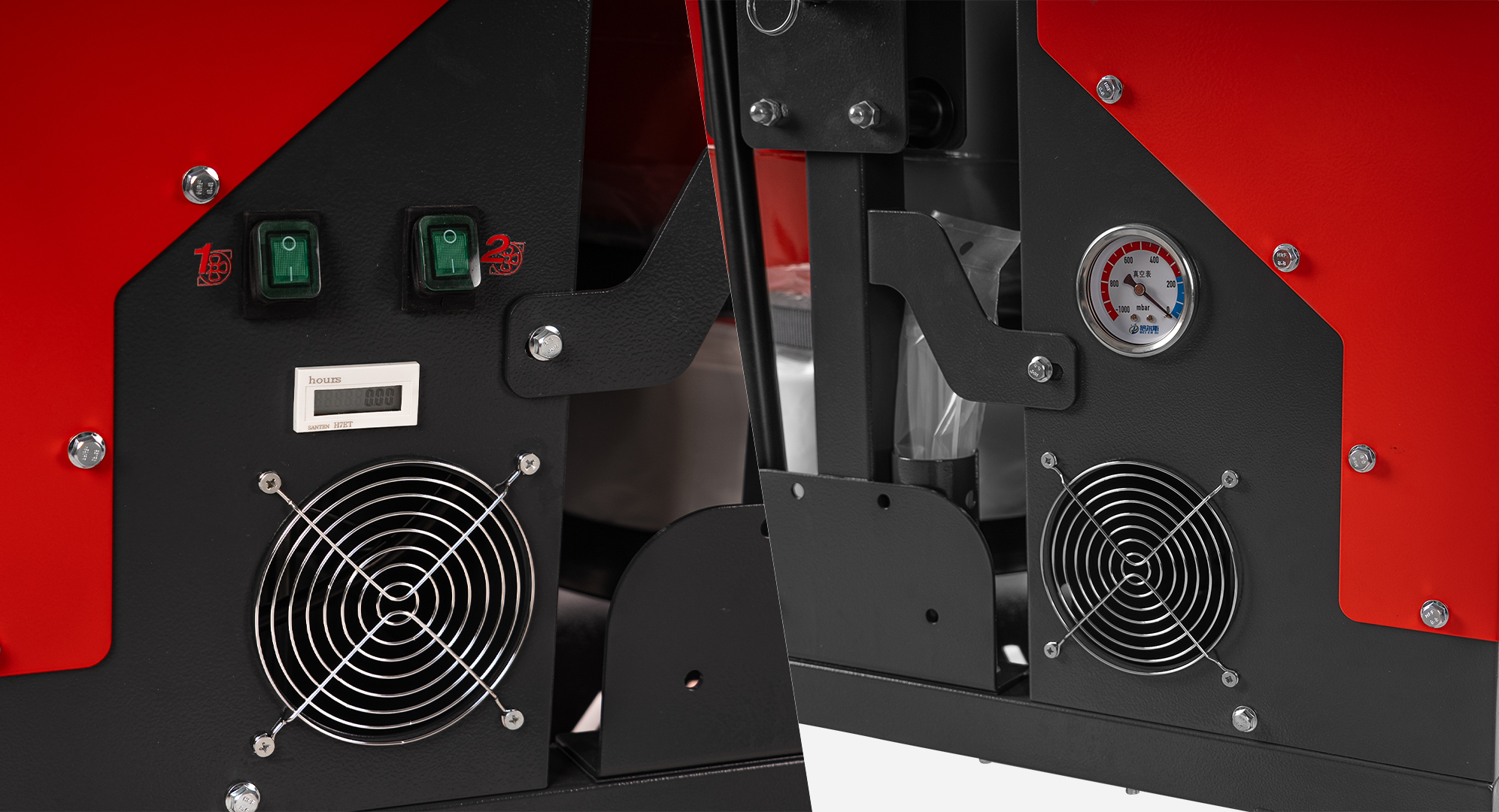

Optional high-quality motor fans with high efficiency, large air volume and high negative pressure. Each machine is equipped with one or more motors to fully meet the requirements of vacuum efficiency on-site. Humanized design of independent switches to independently control each motor to meet the different requirements of suction and air volumes.
-
-

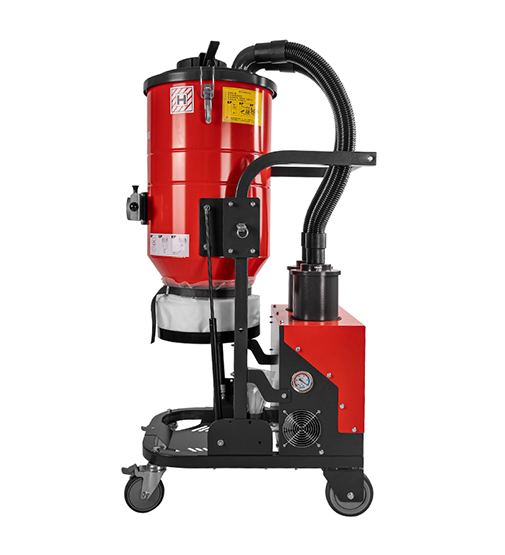

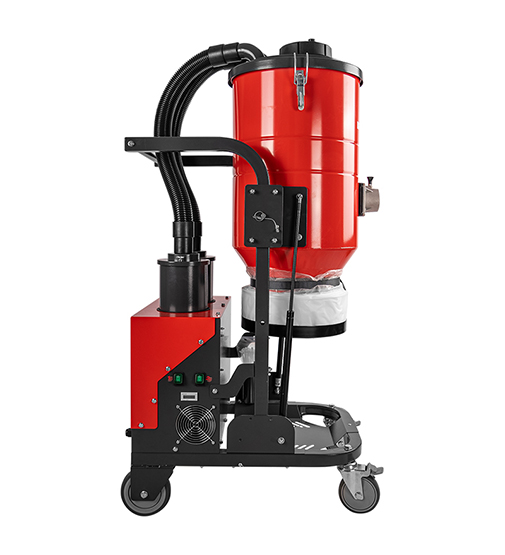

Compact design
The whole machine is light and compact, equipped with aluminum wheels (rear) and universal wheels(front), which is very convenient for transportation and does not take up a lot of space
-
feature overview (6)
✓ High quality drive fan
✓ Two stages filter
✓ No clogging, effective dust removal
✓ Timing function
✓ Compact design
✓ Longopac bag
Machine parameters
| ALL PRODUCTS SPECIFICATION | IVC-V2 USPRO | IVC-V2 ULTRA |
| IVC-V2 | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 2*1.2KW | 2*1.2KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 2*1.2KW | 2*1.2KW |
| Phases | 1 ph | 1 ph |
| Voltage | 220V /110v | 220V /110v |
| Rated current |
13.5A 30A |
13.5A 30A |
| Frequency | 50 / 60HZ | 50 / 60HZ |
| Pins | 1p+n+e | 1p+n+e |
| EQUIPMENT | ||
| Suction | 22Kpa/220Mbar | 22Kpa/220Mbar |
| Air Flow | 410m³/h | 410m³/h |
| Cartridge Grade | H13 | H13 |
| Filter Area | 1.5㎡ | 1.5㎡ |
| Maximum Flow | 410m³/h | 410m³/h |
| Filter Cleaning | Jet pulse by manual | Jet pulse by manual |
| Hose | 50mm/2 in | 50mm/2 in |
| Collection | continuous drop-down bag | continuous drop-down bag |
| DIMENSIONS | ||
| Product size length | 800mm/31.5 in | 800mm/31.5 in |
| Product size width | 530mm/21 in | 530mm/21 in |
| Product size height | 1470mm/58 in | 1470mm/58 in |
| Weight (complete product w/o side packed articles) | 82.5kg/182 lbs | 82.5kg/182 lbs |
