Dust Extractor

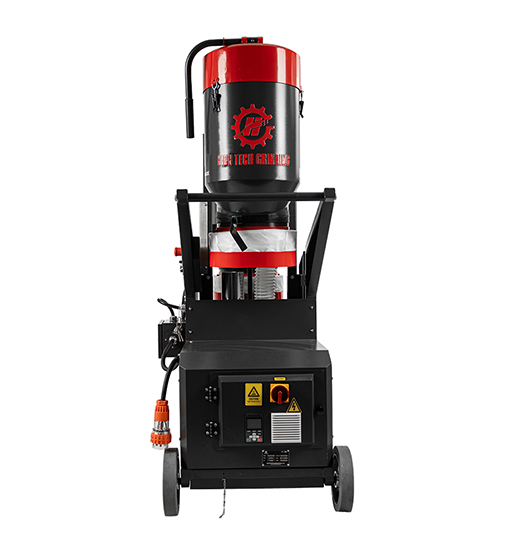

IVC-45L

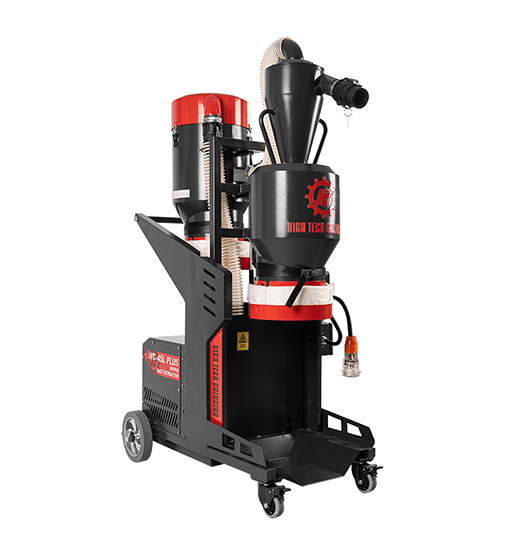

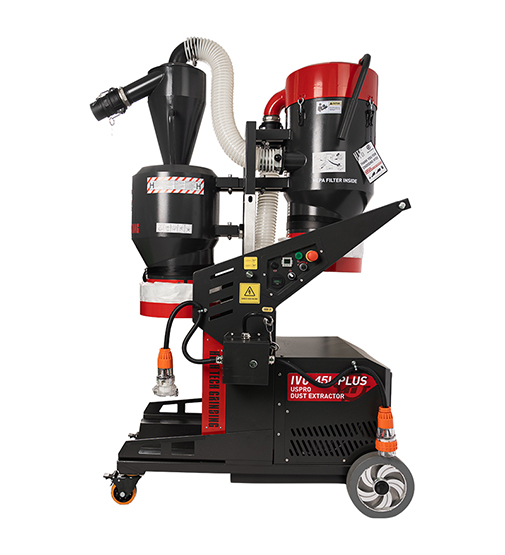

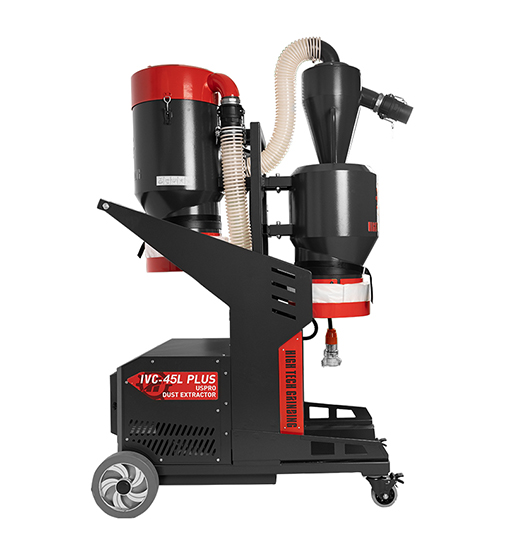

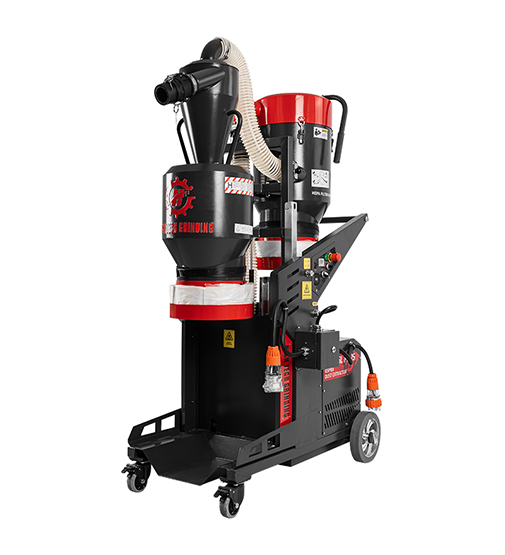

Super Suction Vacuum Cleaner IVC-45L is the key machine for dust-free construction. It is recommended to match 900mm and below model grinders for dust collection in floor grinding, polishing and preparation jobs. It cleverly combines the cyclone separator and the HEPA13 filtration with liftable barrel design, easy to move and transport. The filtering principle: The cyclone separator filters most of the dust particles, while a small part of the light-weight dust is filtered by the HEPA13 filter. Therefore, the filtration efficiency is high and the amount of dust contained in the air is greatly reduced.

‌✓ Hepa Filter
‌✓ Air pulse cleaning
‌✓ Two stages filter
‌✓ Integrated central control panel design
‌✓ Stretchable Design
‌✓ Longopac bag
Instructions pdf
product descriptionFEATURESMachine parametersrelated products

product description

Super Suction Vacuum Cleaner IVC-45L is the key machine for dust-free construction. It is recommended to match 900mm and below model grinders for dust collection in floor grinding, polishing and preparation jobs. It cleverly combines the cyclone separator and the HEPA13 filtration with liftable barrel design, easy to move and transport. The filtering principle: The cyclone separator filters most of the dust particles, while a small part of the light-weight dust is filtered by the HEPA13 filter. Therefore, the filtration efficiency is high and the amount of dust contained in the air is greatly reduced.

FEATURES

Discover all features and learn more about the benefits.

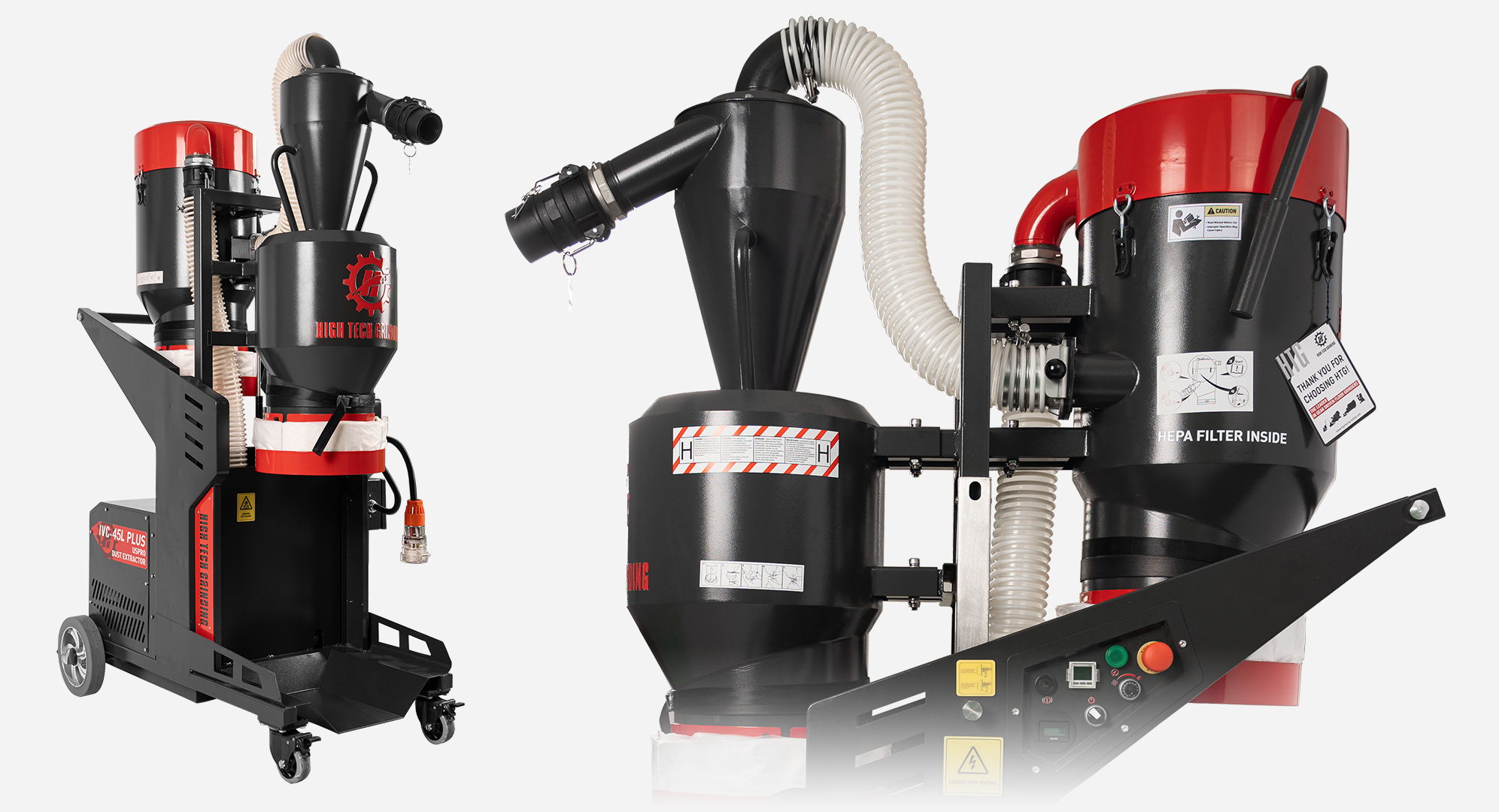

Two stages filter

Two stages vacuum design with cyclone sepration system to keep you away from the invisiable dust. First stage captures the larger particle and collected in the Longopac bag system. Second stage filter separates the unhealthy dust that is invisiable to the eyes.

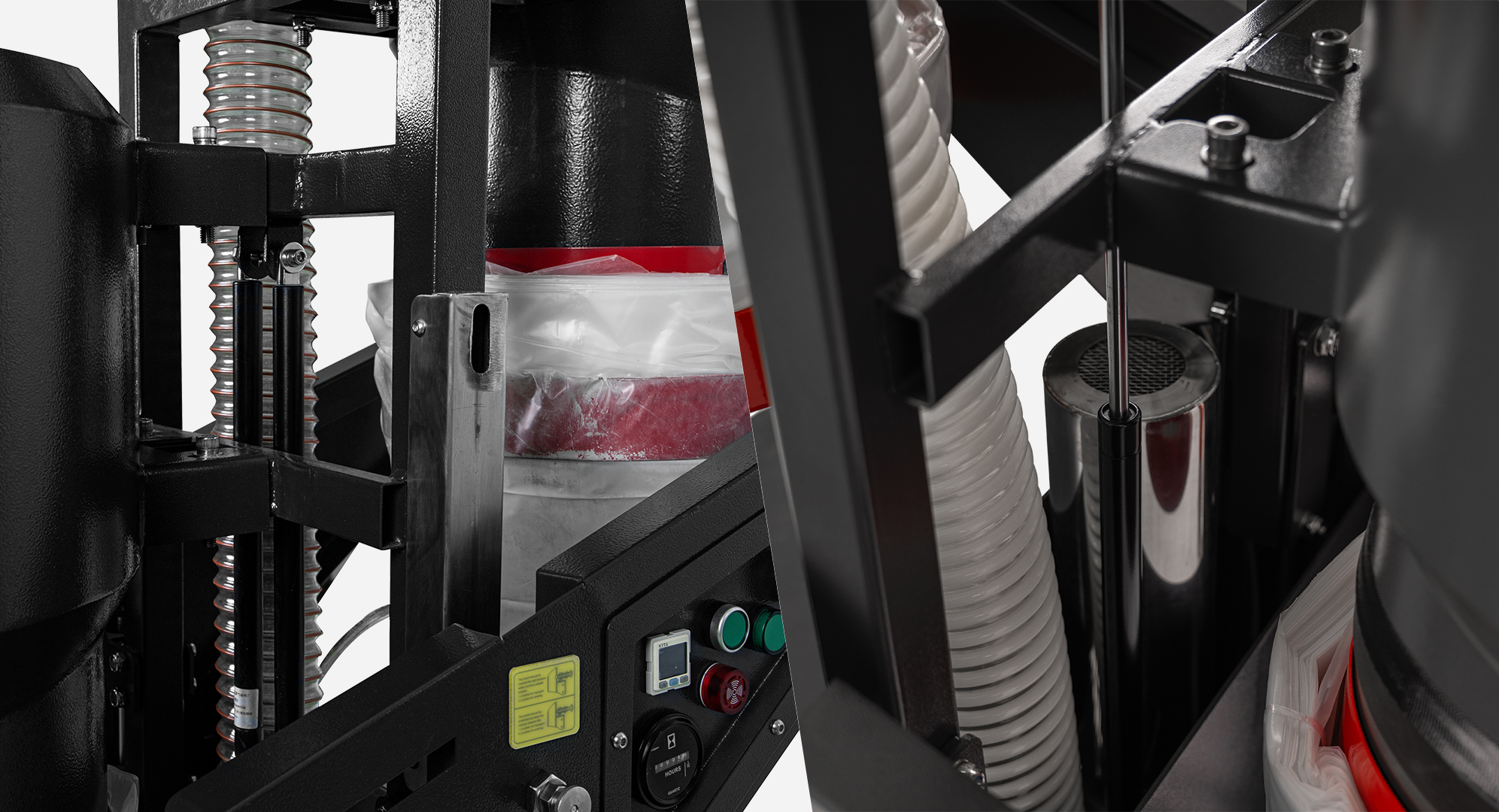

Stretchable Design

Liftable barrel design, easy to move and transport

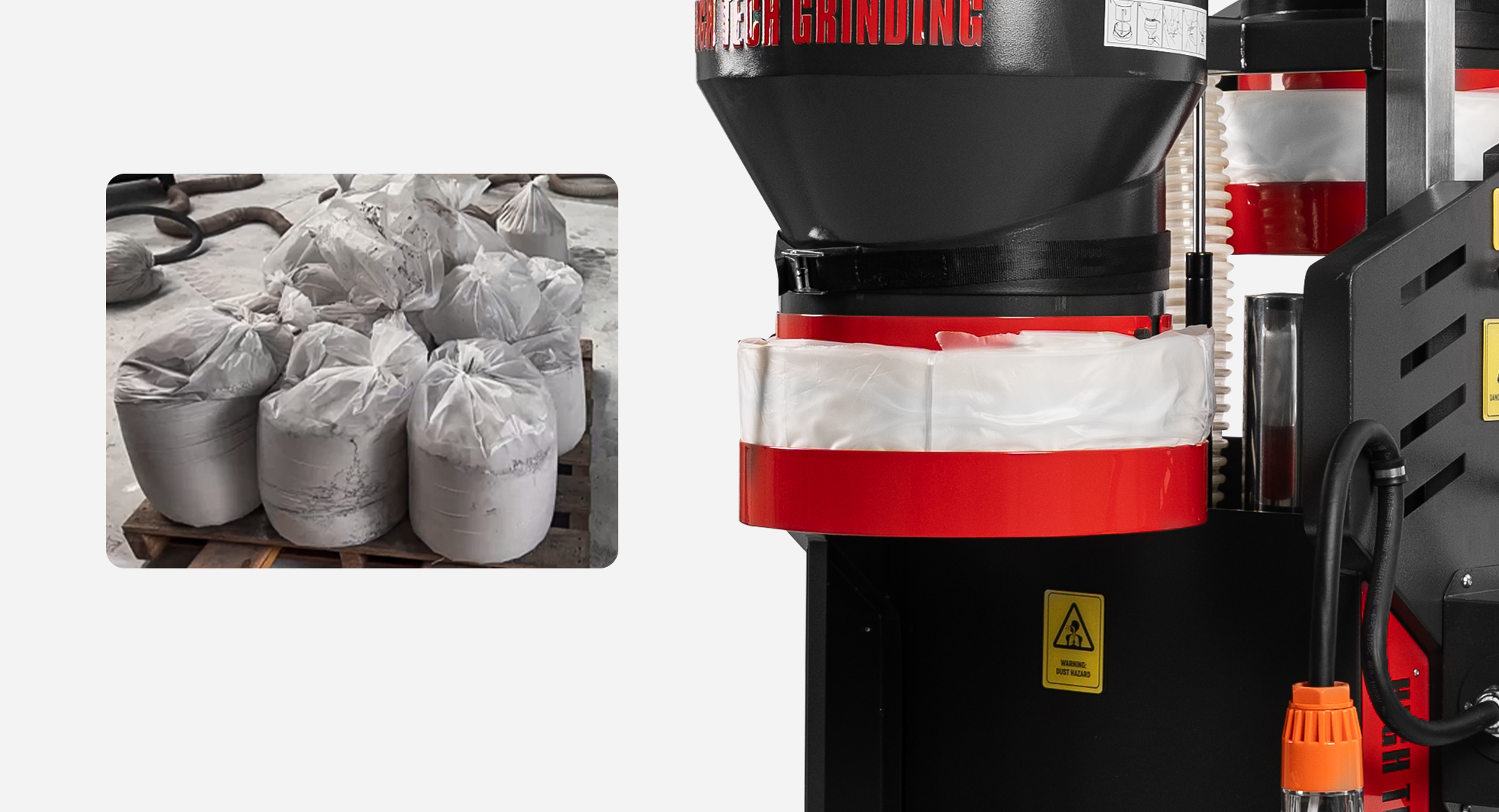

Longopac bag

Continue dust bag system is developed for professional users and optimal in their daily work. It is a more efficient and economical choice than regular waste bags with a combined handling of both waste and packaging

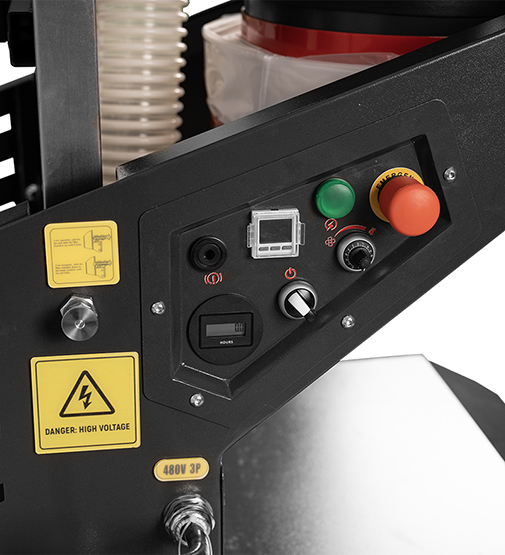

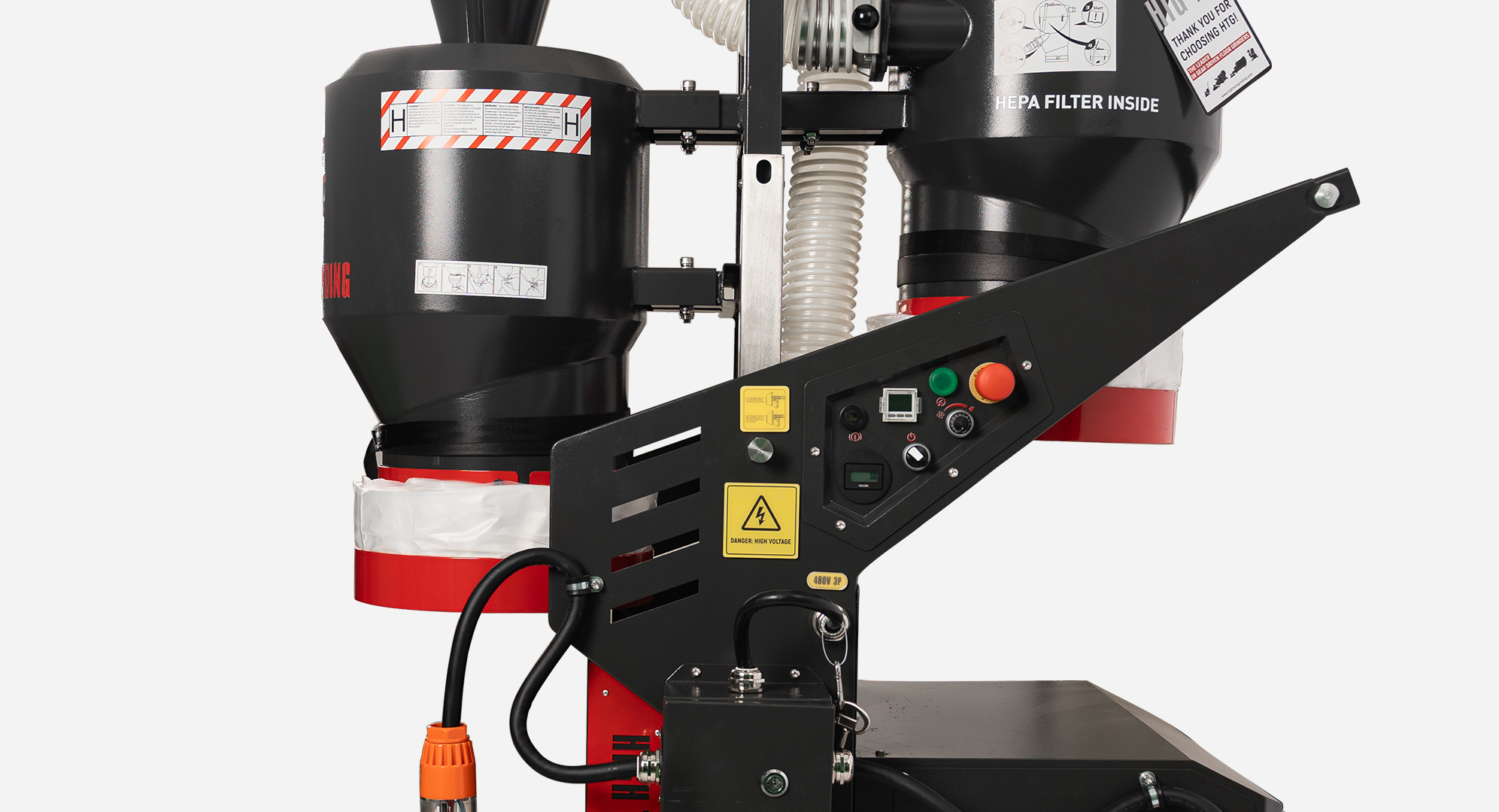

Integrated central control panel design

Easier to operate

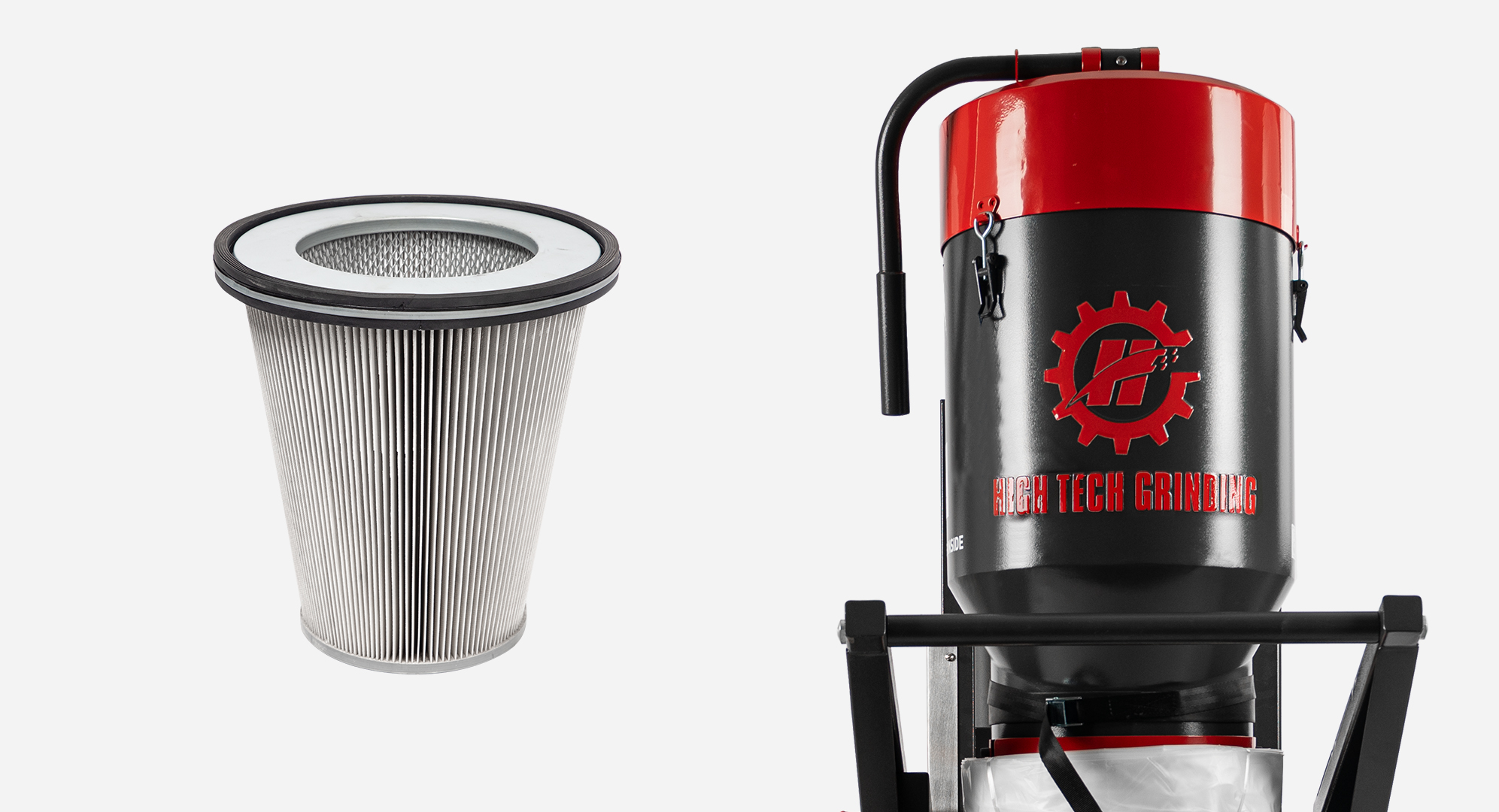

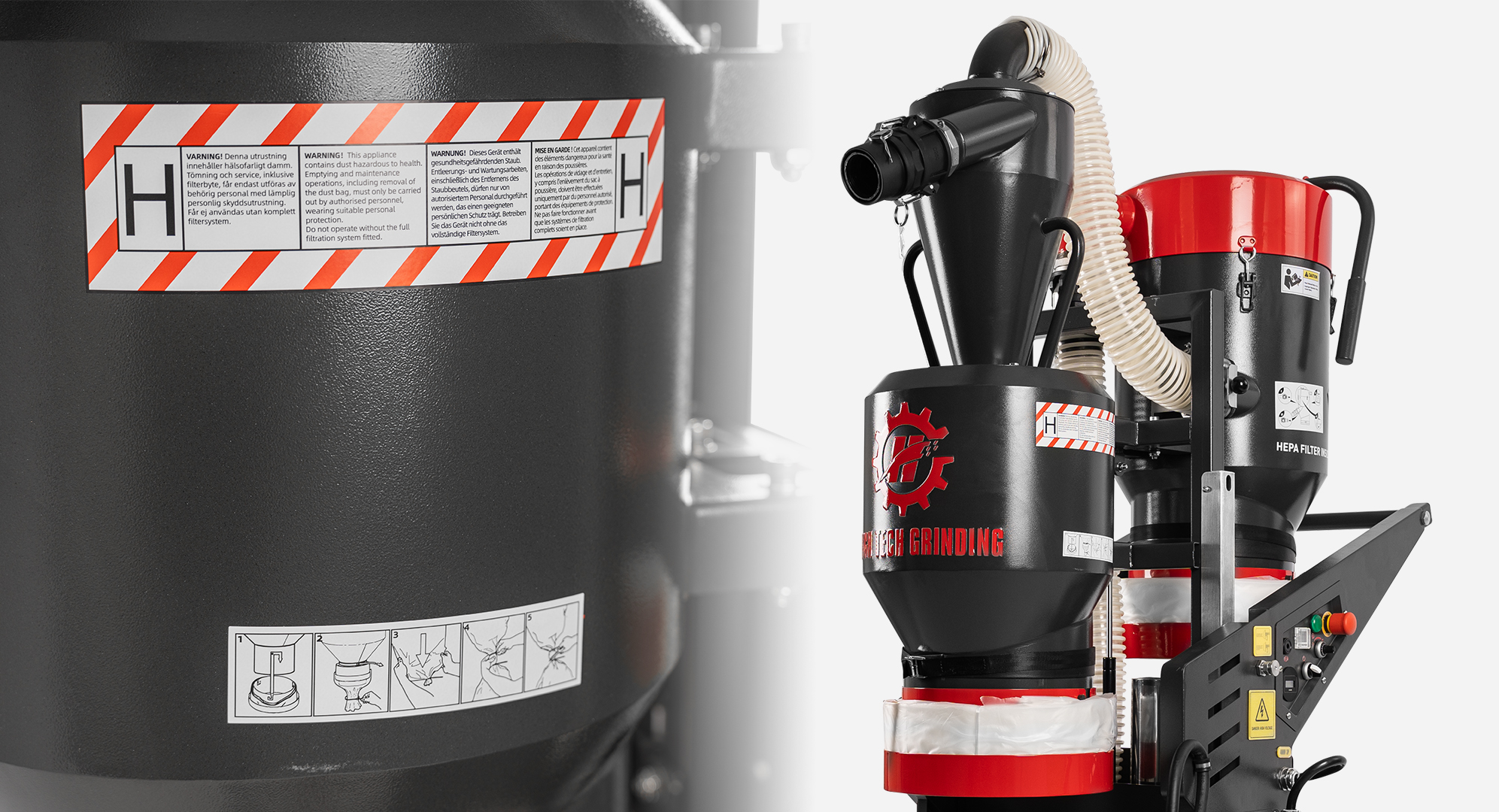

Hepa Filter

Hepa filter for the main filter and the secondary filter to keep our commitment to the air quality which we lives on.

Air pulse cleaning

Through the difference in internal and external air pressure, the pulse back blowing can easily clean the dust on the filter element, which is more friendly to the surface of the filter element and does not cause damages.

feature overview (6)

✓ Hepa Filter

✓ Air pulse cleaning

✓ Two stages filter

✓ Integrated central control panel design

✓ Stretchable Design

✓ Longopac bag

Machine parameters

ALL PRODUCTS SPECIFICATION IVC-45L  PLUS USPRO IVC-45L ULTRA
IVC-45L
ENGINE
Engine Power (As rated by the engine manufacturer) 5.5KW 5.5KW 5.5KW
MOTOR
Power source Corded Corded Corded
Rated input power 5.5KW 5.5KW 5.5KW
Phases 3 ph 3 ph 3 ph
Voltage 200-240V 380-480V 380-480V
Rated current 22A 13A 13A
Frequency 50/60HZ 50/60HZ 50/60HZ
Pins 3P+N+E 3P+N+E 3P+N+E
EQUIPMENT
Suction 30Kpa/200Mbar 30Kpa/200Mbar 30Kpa/200Mbar
Air Flow 600m³/h 600m³/h 600m³/h
Cartridge Grade H13 H13 H13
Filter Area 2.8㎡ 2.8㎡ 2.8㎡
DIMENSIONS
Product size length 1250mm 1250mm 1250mm
Product size width 711mm 711mm 711mm
Product size height 1940mm 1940mm 1940mm
Weight (complete product w/o side packed articles) 245.5kg/541 lbs 245.5kg/541 lbs 223.5kg/492.7 lbs
