Dust Extractor

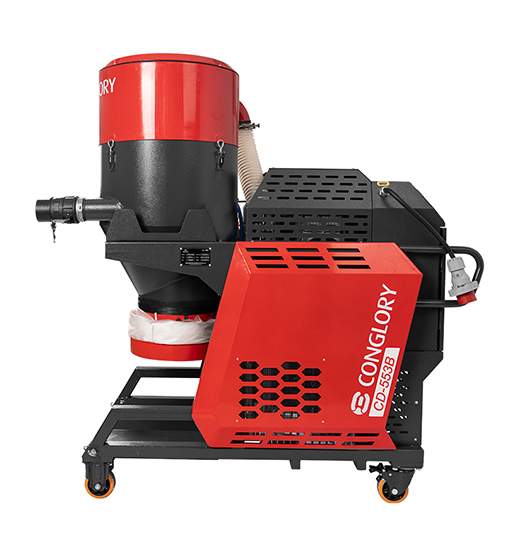

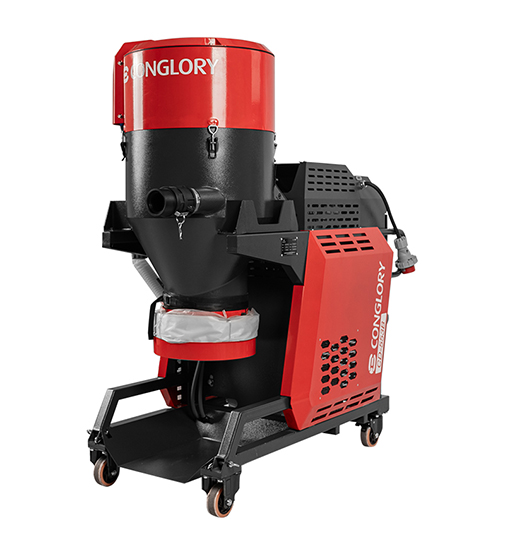

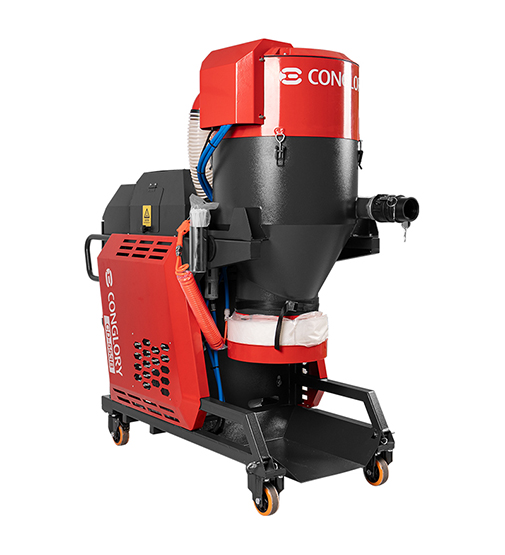

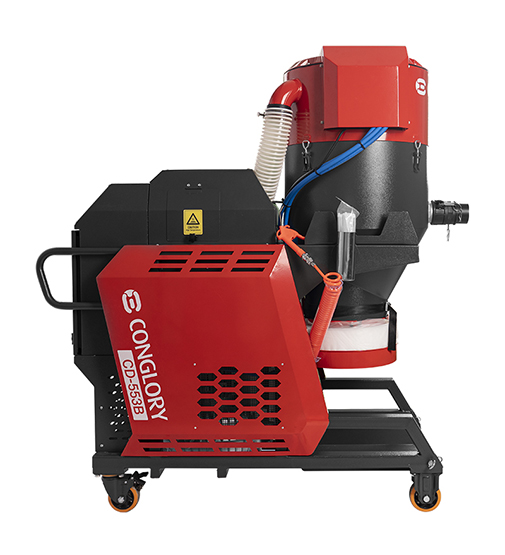

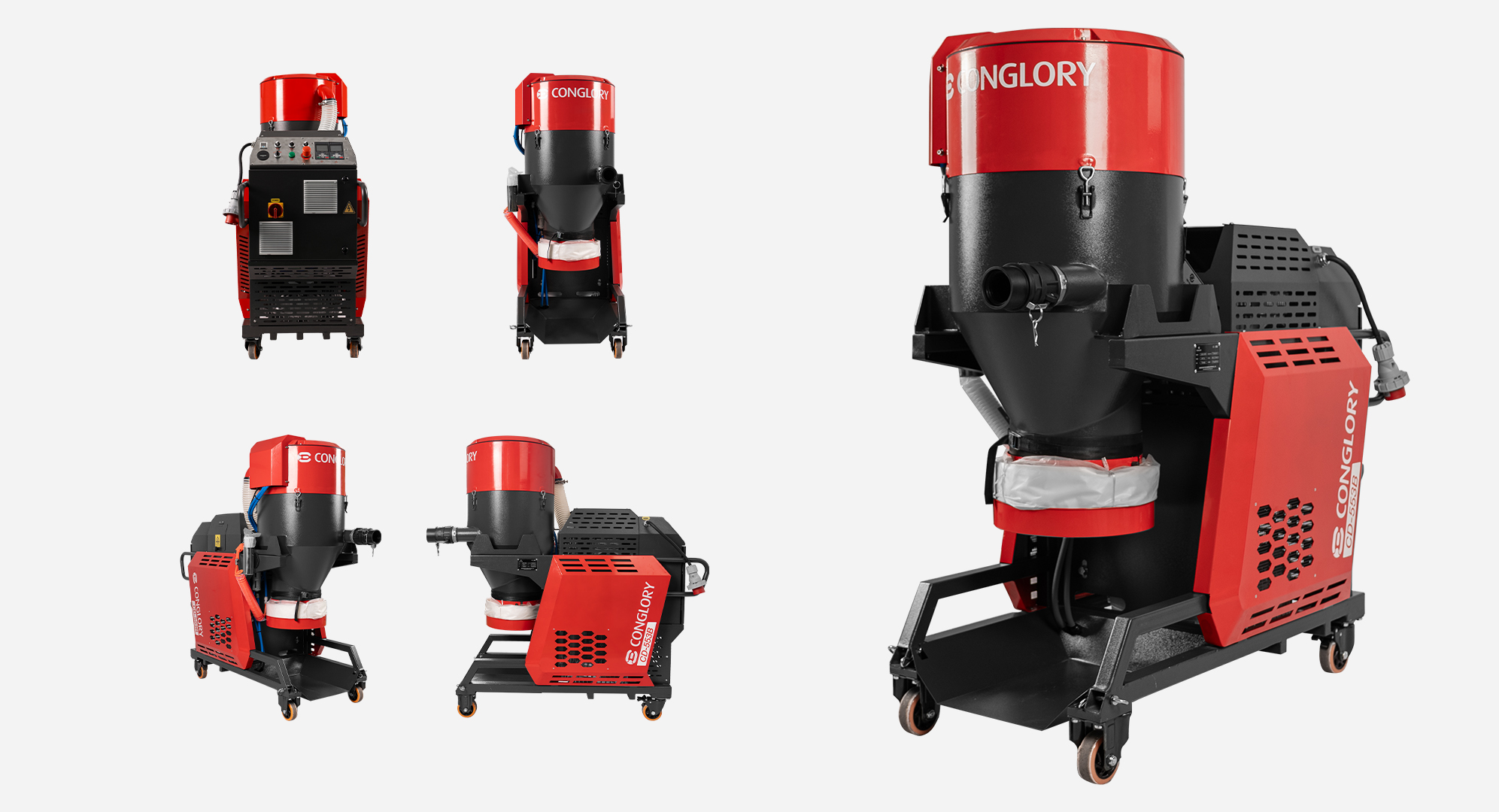

CD-553B

CD-553B is a powerful and highly efficient auto-cleaning industrial vacuum cleaner designed for dust collection in floor grinding, polishing and preparation jobs. The scientific design of the suction and airflow provides excellent suction performance. The HEPA filter ensures a virtually dust-free environment for a healthier and more comfortable work site. The auto jet-pulse cleaning mechanism optimizes filter efficiency, ensuring consistent performance without the need for manual intervention. The continuous drop-down bag enables easy disposal of the collected dust. Highly suggest to add a cyclone separator with IVC-553B.

‌✓ High-Efficiency Filtration System
‌✓ The inverter-controlled
‌✓ Auto clean and Automatic Jet-pulse system
‌✓ Quieter
‌✓ Longopac bag
Instructions pdf
product descriptionFEATURESMachine parametersrelated products

product description

CD-553B is a powerful and highly efficient auto-cleaning industrial vacuum cleaner designed for dust collection in floor grinding, polishing and preparation jobs. The scientific design of the suction and airflow provides excellent suction performance. The HEPA filter ensures a virtually dust-free environment for a healthier and more comfortable work site. The auto jet-pulse cleaning mechanism optimizes filter efficiency, ensuring consistent performance without the need for manual intervention. The continuous drop-down bag enables easy disposal of the collected dust. Highly suggest to add a cyclone separator with IVC-553B.

FEATURES

Discover all features and learn more about the benefits.

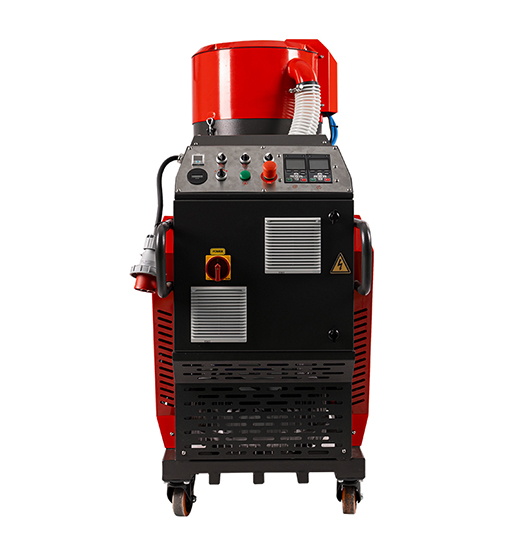

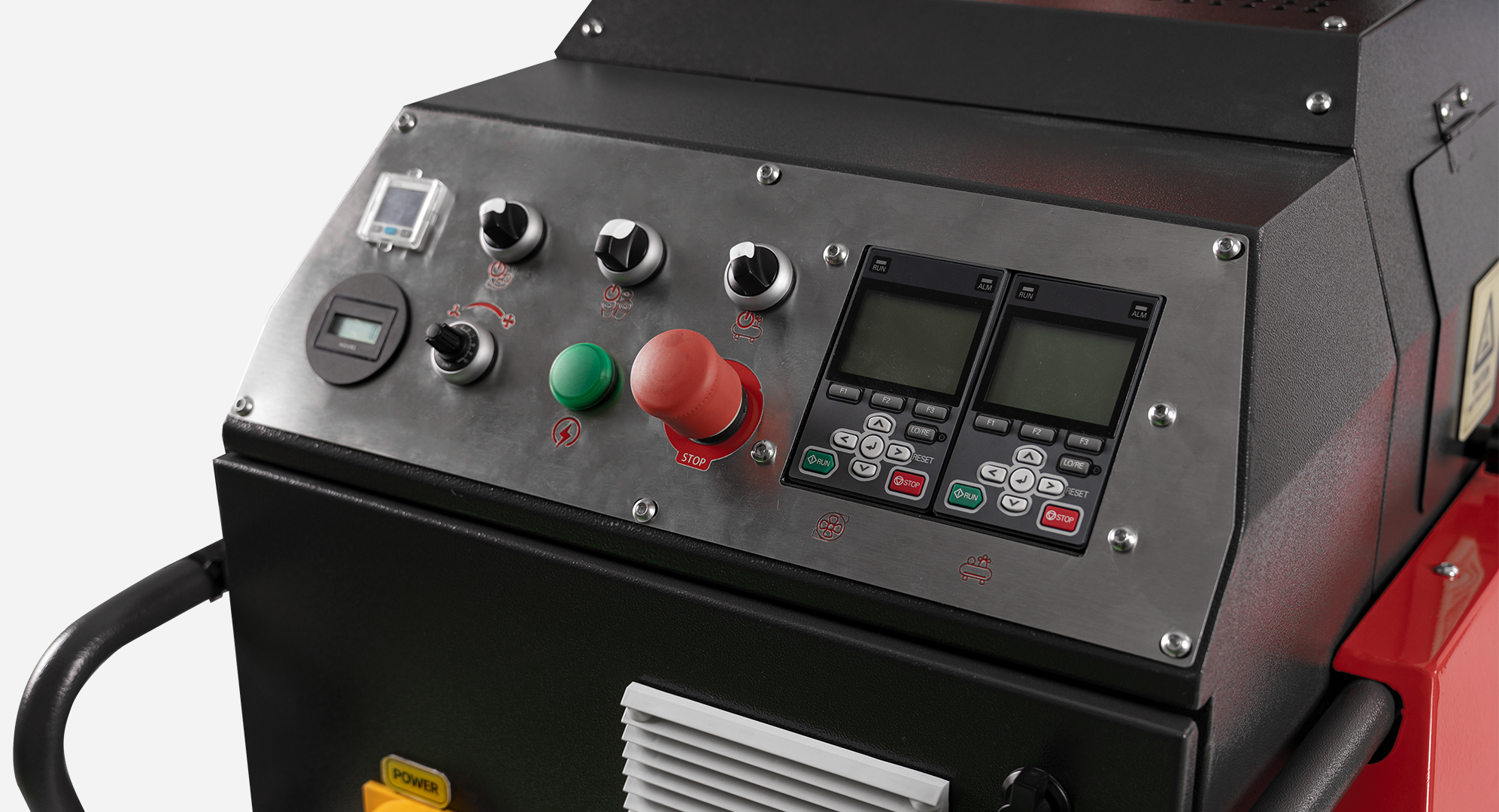

The inverter-controlled

1.Over 40% greater airflow compared to conventional power sources 2.Variable airflow control 3.Soft start control 4.Automatic directional correction 5.Fault information can be fed back through the HMI

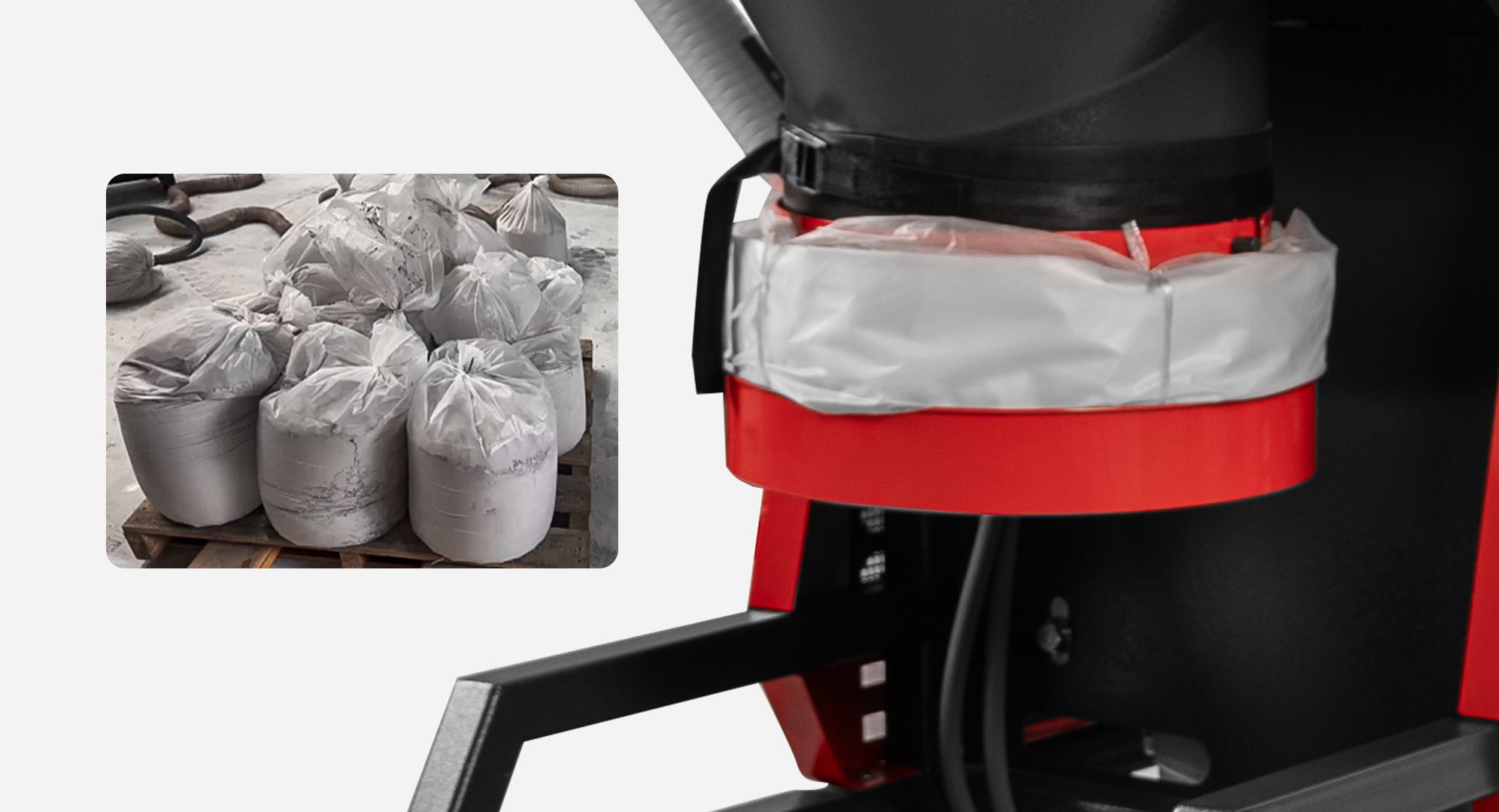

Longopac bag

Continue dust bag system is developed for professional users and optimal in their daily work. It is a more efficient and economical choice than regular waste bags with a combined handling of both waste and packaging

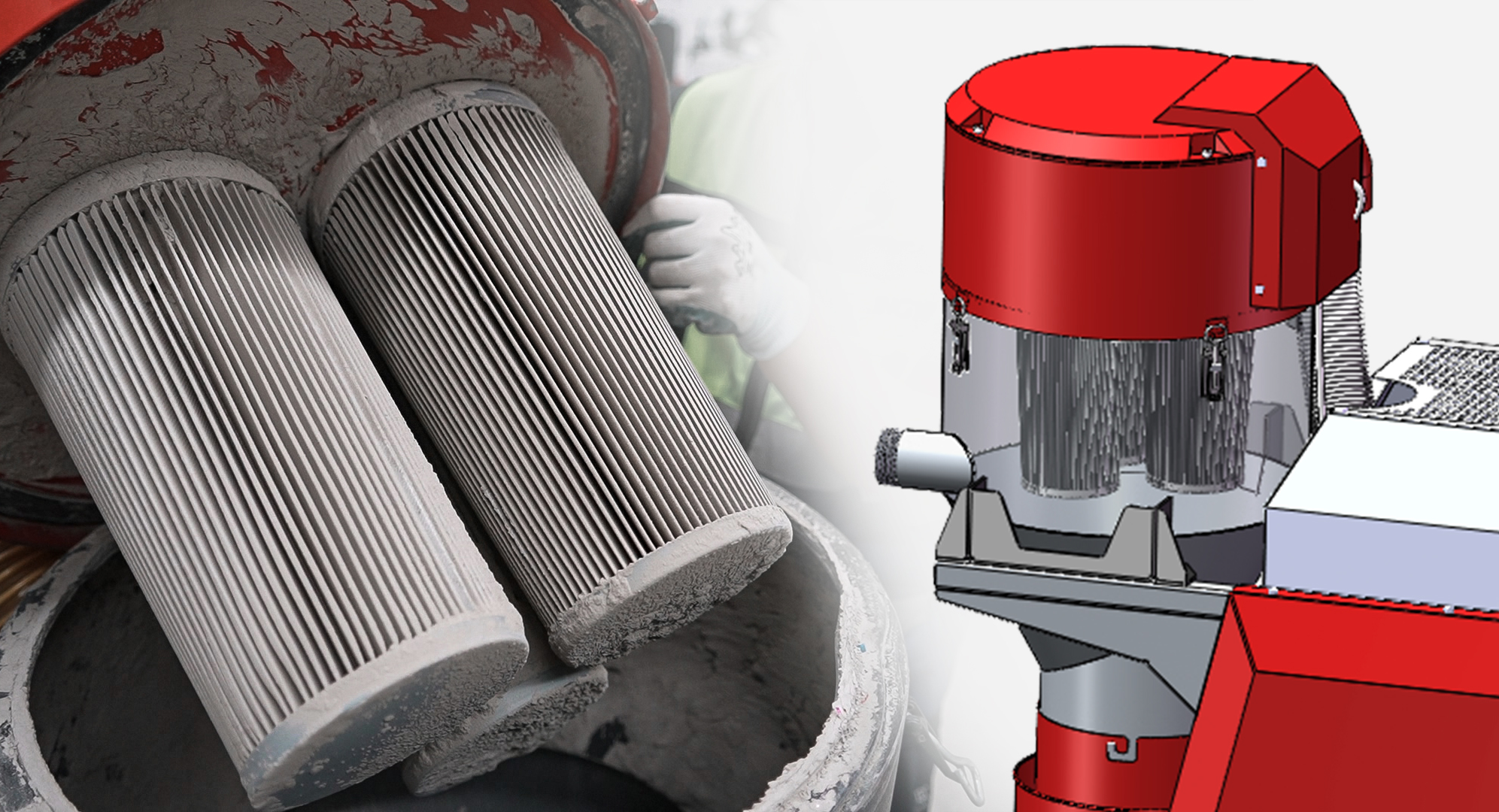

High-Efficiency Filtration System

1.Over 3 square meters of filter area (largest in its class).
2.PETF coated material, with a smoother surface for easier dust cleaning.
3.Washable material.

Auto clean and Automatic Jet-pulse system

Three filter elements automatically perform backflushing every 6 seconds.

feature overview (5)

✓ High-Efficiency Filtration System

✓ The inverter-controlled

✓ Auto clean and Automatic Jet-pulse system

✓ Quieter

✓ Longopac bag

Machine parameters

ALL PRODUCTS SPECIFICATION CD-553B USPRO CD-553B ULTRA
CD-553B
ENGINE
Engine Power (As rated by the engine manufacturer) 7.5KW 7.5KW 7.5
MOTOR
Power source Corded Corded Corded
Rated input power 7.5KW 7.5KW 5.5KW
Phases 3 ph 3 ph 3 ph
Voltage 200-240V 380-480V 380-480V
Rated current 30A 15A 13.3A
Frequency 50/60HZ 50/60HZ 50/60HZ
Pins 3P+E 3P+E 3P+N+E
EQUIPMENT
Suction 40Kpa/400Mbar 40Kpa/400Mbar 40Kpa/400Mbar
Air Flow 0-1000m³/h 0-1000m³/h 0-600m³/h
Cartridge Grade H13 H13 H13
Filter Area 3.36㎡ 3.36㎡ 3.36㎡
DIMENSIONS
Product size length 1370mm 1370mm 1370mm
Product size width 645mm 645mm 645mm
Product size height 1490mm 1490mm 1490mm
Weight (complete product w/o side packed articles) 269kg/593lbs 269kg/593lbs 269kg/593lbs
