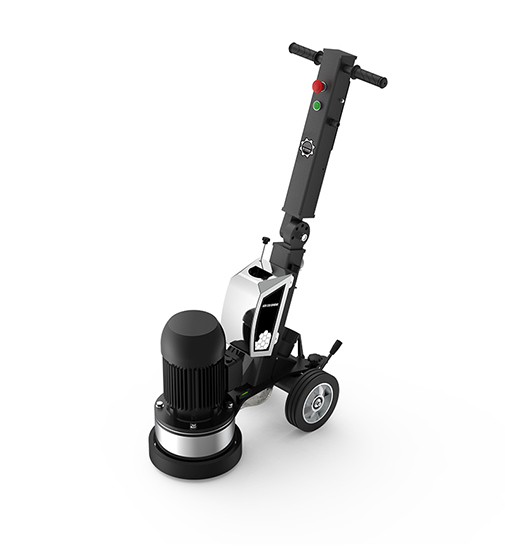

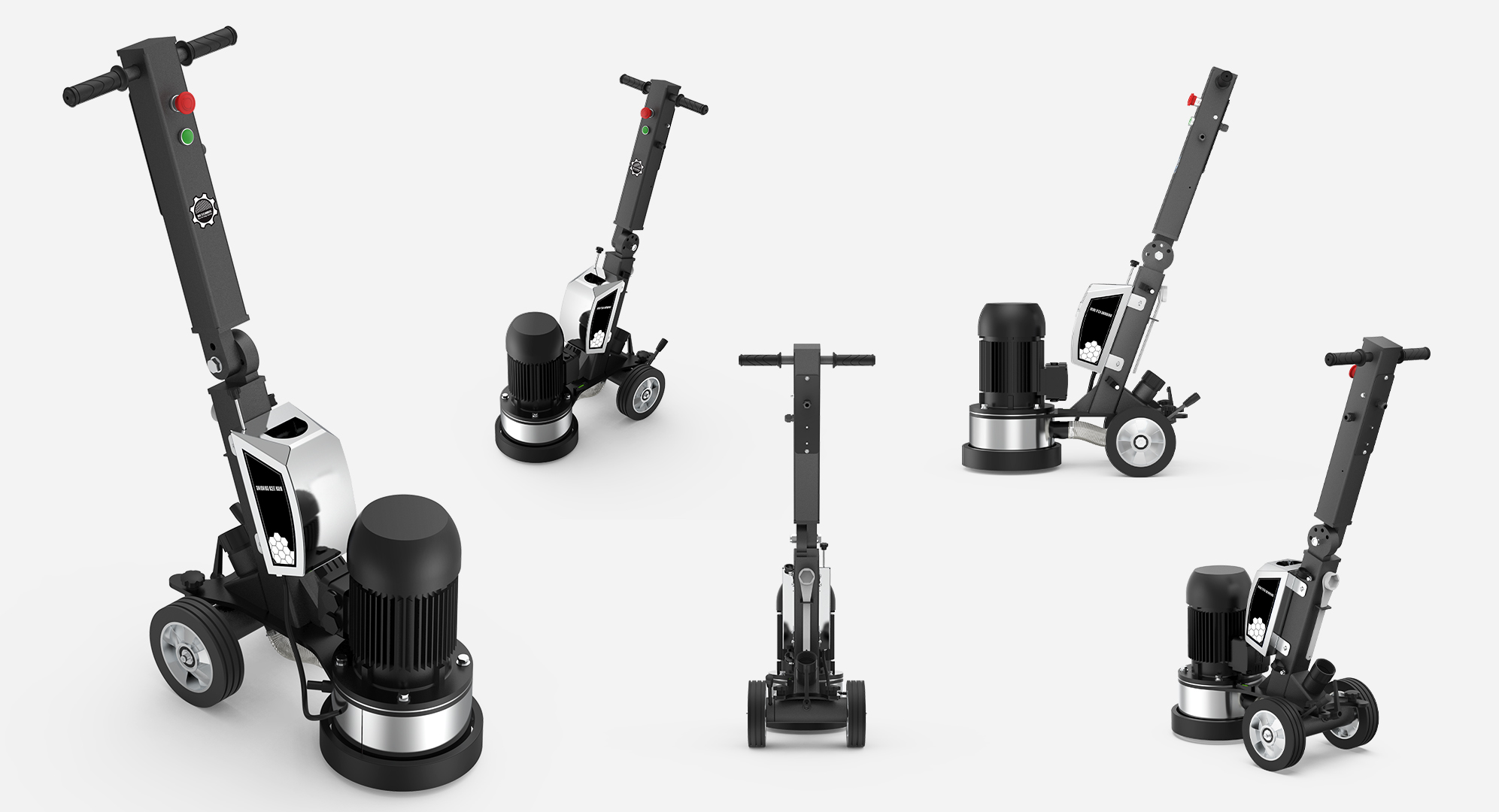

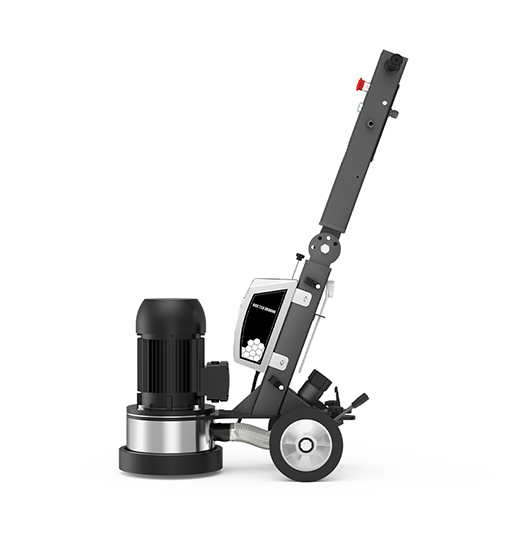

Single Head Grinder
HTG-250D
✓ Dust Cover Switch
✓ Multi-functional Plate.
✓ Sleek Design
✓ Equipped with a Water Tank
✓ Compact Design
✓ Cost-effective
✓ Adjustable Horizontal Angle
product description

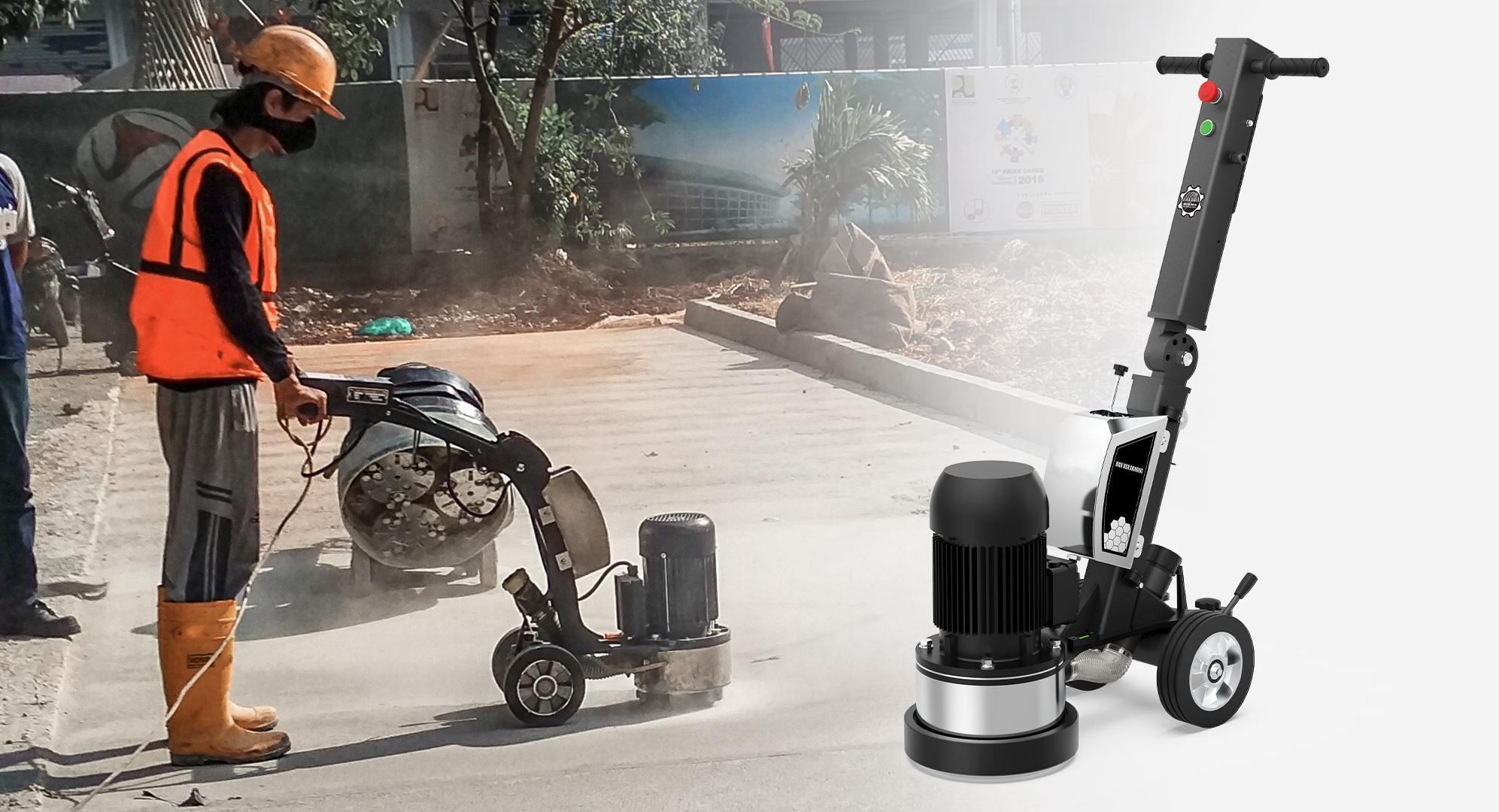

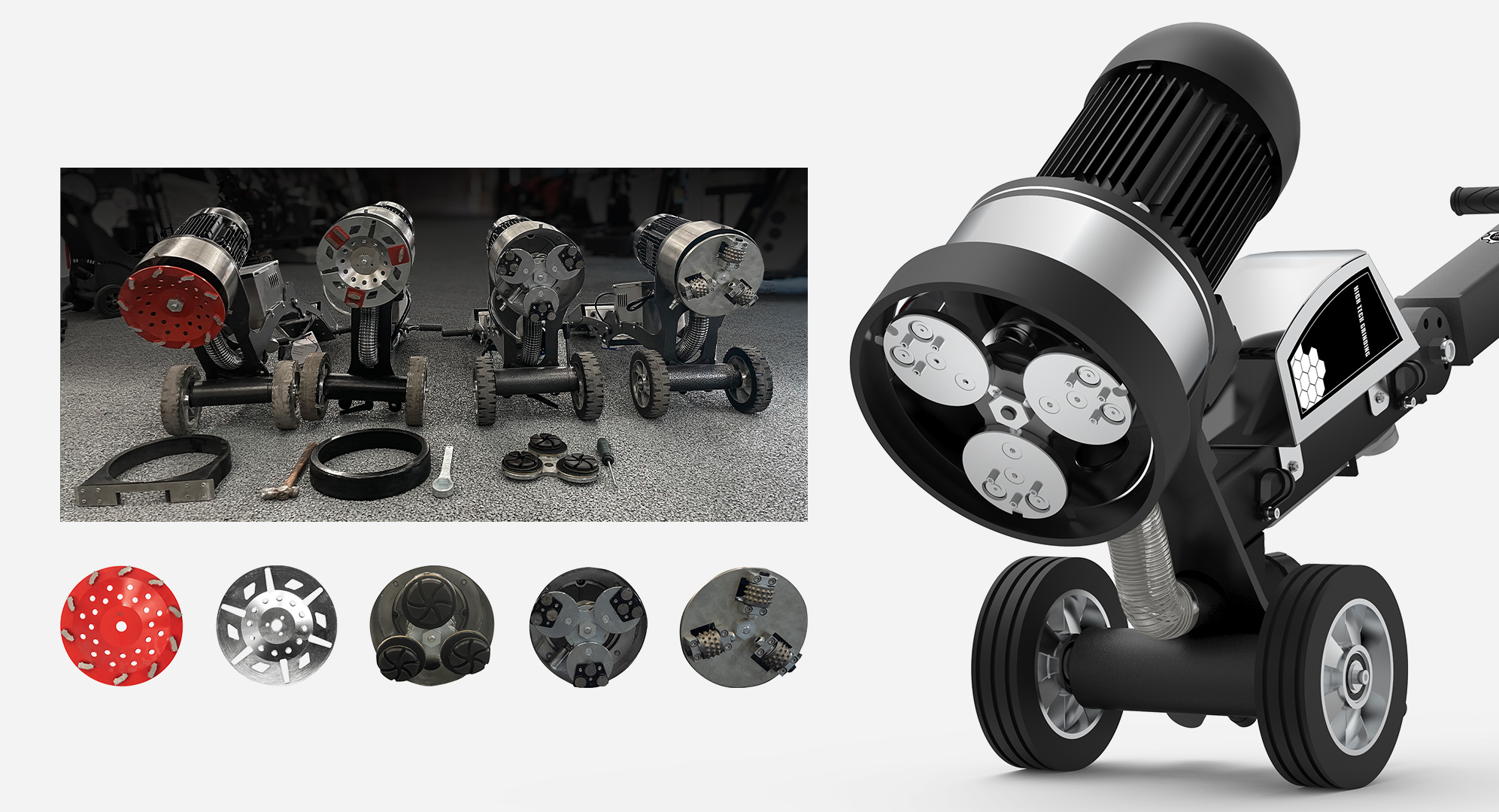

This is an entry-level small grinder designed for edge and adjacent work, polymer coating preparation, or localized repairs. It is lightweight and compact, making transportation and setup very easy. It can be equipped with cup wheels, metal grinding discs, resin grinding discs, and bush hammer heads for scarifying, grinding, and polishing.
FEATURES
Discover all features and learn more about the benefits.
-

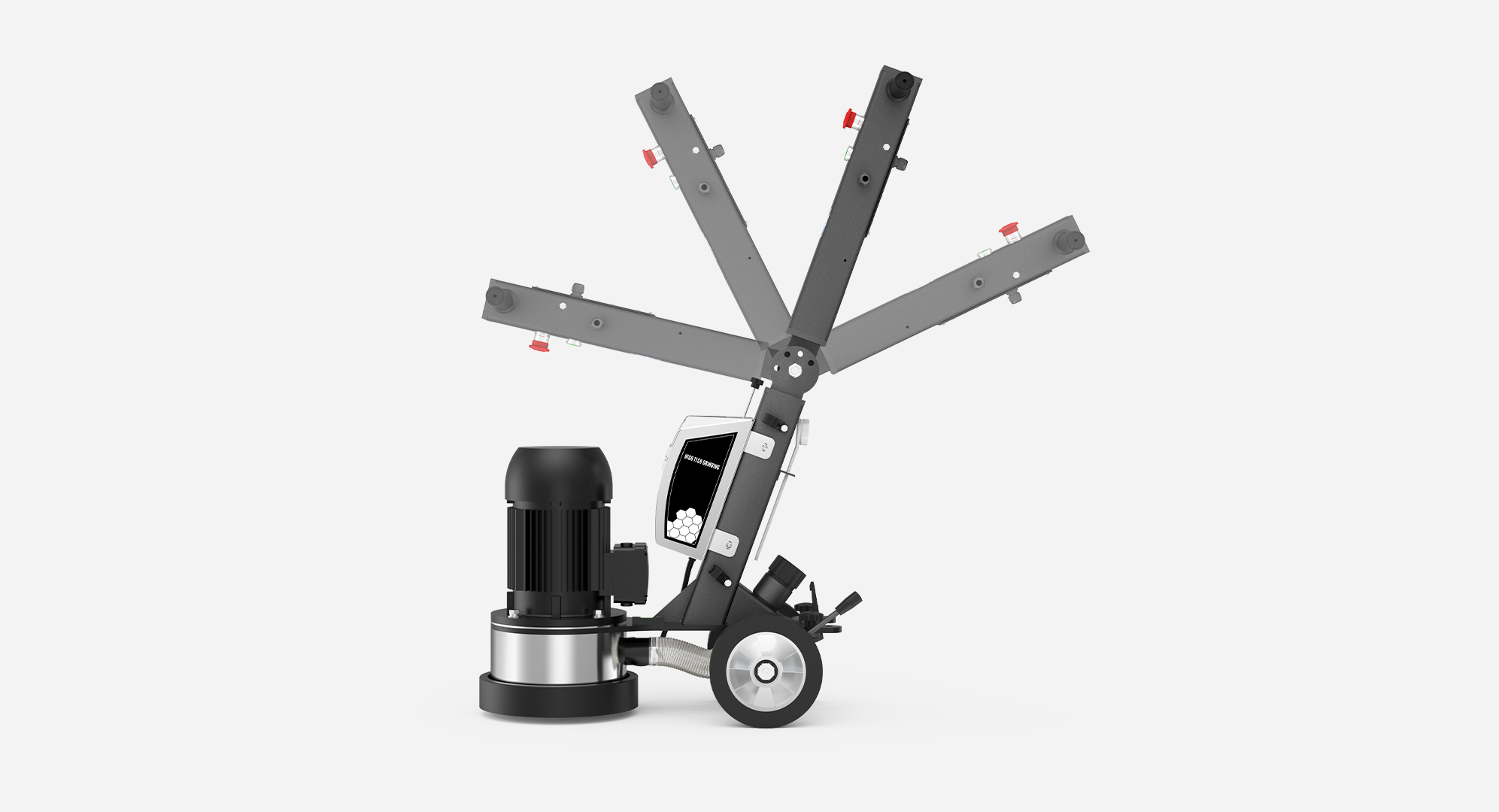

Adjustable Horizontal Angle
Features an adjustable horizontal angle, making it convenient for working on different floor surfaces.
-
-
Compact Design
Lightweight for easy transport and installation.
-
-

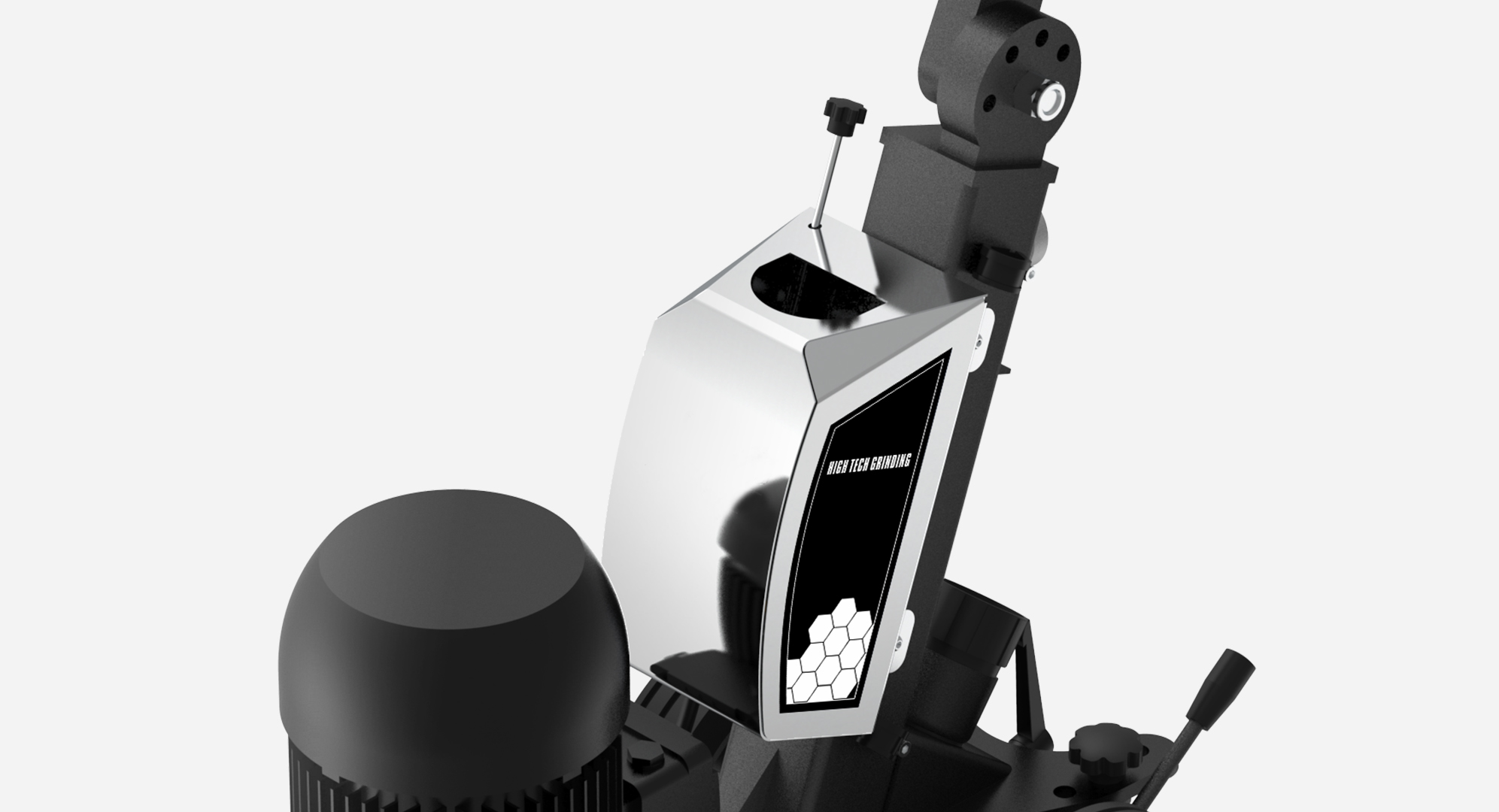

Equipped with a Water Tank
Suitable for wet grinding.
-
-
Cost-effective
Easy to operate and budget-friendly, making it ideal for beginners.
-
-
Sleek Design
Boasts a compact and attractive appearance.
-
-

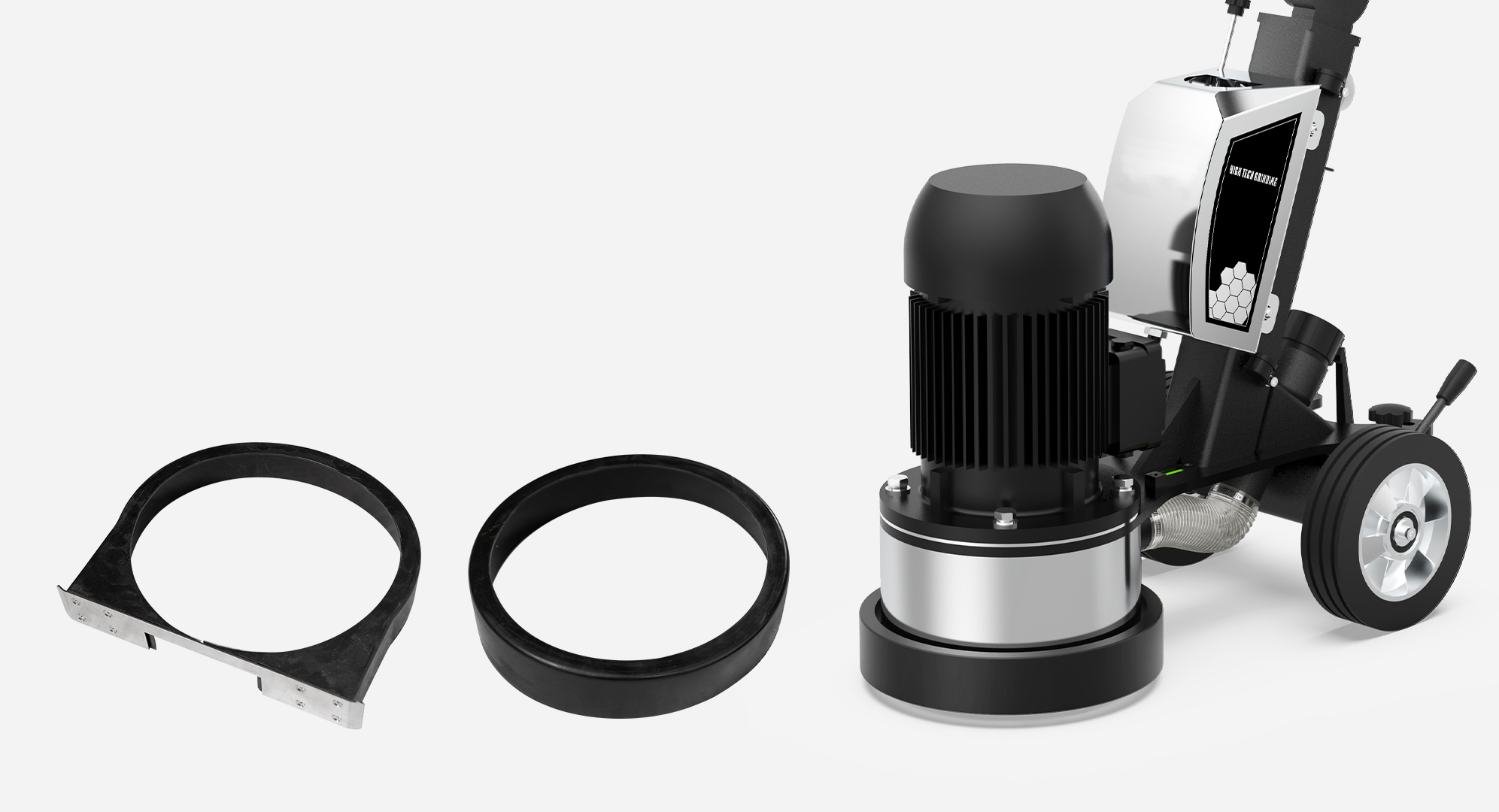

Dust Cover Switch
The dust cover can be changed to either a round or square shape based on the floor conditions.
-
-

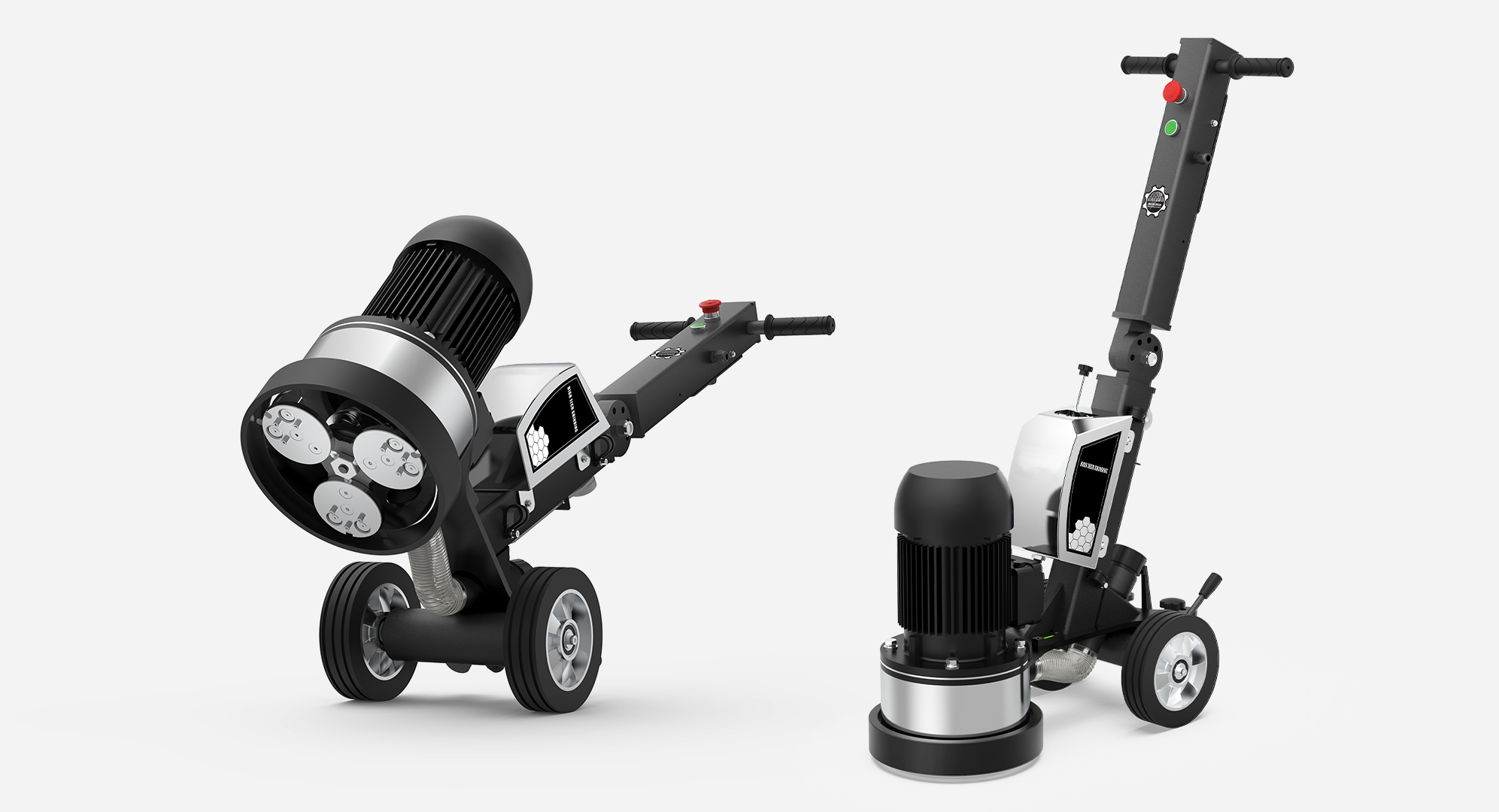

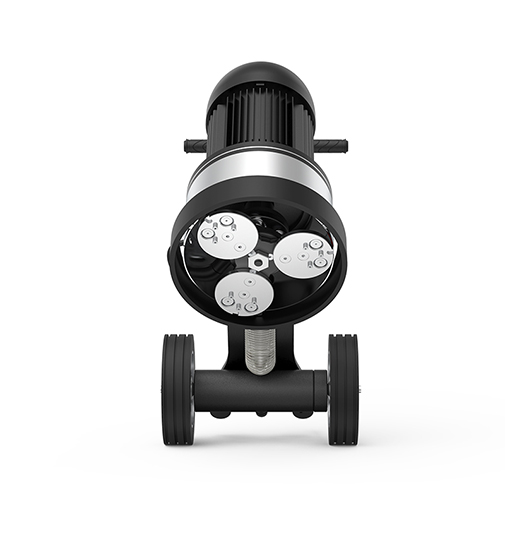

Multi-functional Plate.
Capable of accommodating various types of grinding tools to achieve scarifying, grinding, and polishing outcomes.
-
feature overview (7)
✓ Dust Cover Switch
✓ Multi-functional Plate.
✓ Sleek Design
✓ Equipped with a Water Tank
✓ Compact Design
✓ Cost-effective
✓ Adjustable Horizontal Angle
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-250D USPRO | HTG-250D ULTRA | |
| HTG-250D | |||
| ENGINE | |||
| Engine Power (As rated by the engine manufacturer) | 2.2KW | 2.2KW | 2.2KW |
| MOTOR | |||
| Power source | Corded | Corded | Corded |
| Rated input power | 2.2KW | 2.2KW | 2.2KW |
| Phases | 1ph | 1ph | 1ph |
| Voltage | 110V | 220v | 110V |
| Rated current | 12.7A | 12.7A | |
| Frequency | 60 Hz | 50 or 60 | 50 Hz |
| Pins | 1P+N+E | ||
| EQUIPMENT | |||
| Grinding width | 250 mm | 250 mm | |
| Number of grinding discs | 1 | 1 | |
| Direction of rotation | One direction | One direction | |
| Grinding disc diameter | 250 mm | 250 | |
| Grinding disc speed min | 1680 | 1460 | |
| Grinding disc speed max | 1680 | 1680 | 1460 |
| Grinding pressure, max | 43kg/94.8 lbs | 43kg/94.8 lbs | 45kg/99lbs |
| TRANSMISSION | |||
| Type of operation | Walk-behind | Walk-behind | Walk-behind |
| DIMENSIONS | |||
| Product size length | 1100mm | 1100mm | 1217mm |
| Product size width | 386mm | 386mm | 405mm |
| Product size height | 1190mm | 1190mm | 1178mm |
| Weight (complete product w/o side packed articles) | 74kg/163 lbs | 74kg/163 lbs | 100.5kg/221.6lbs |
