Single Head Grinder

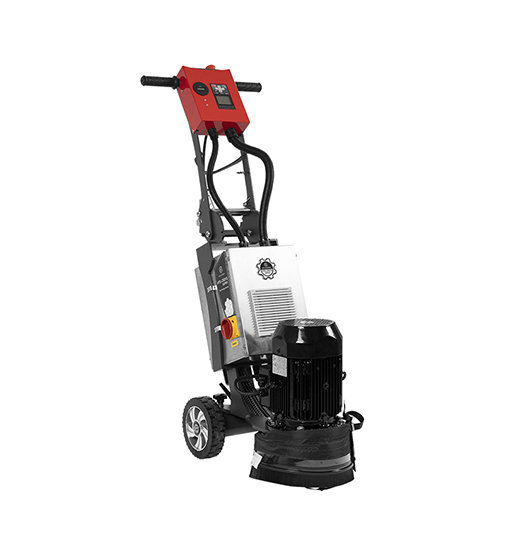

HTG-250VS

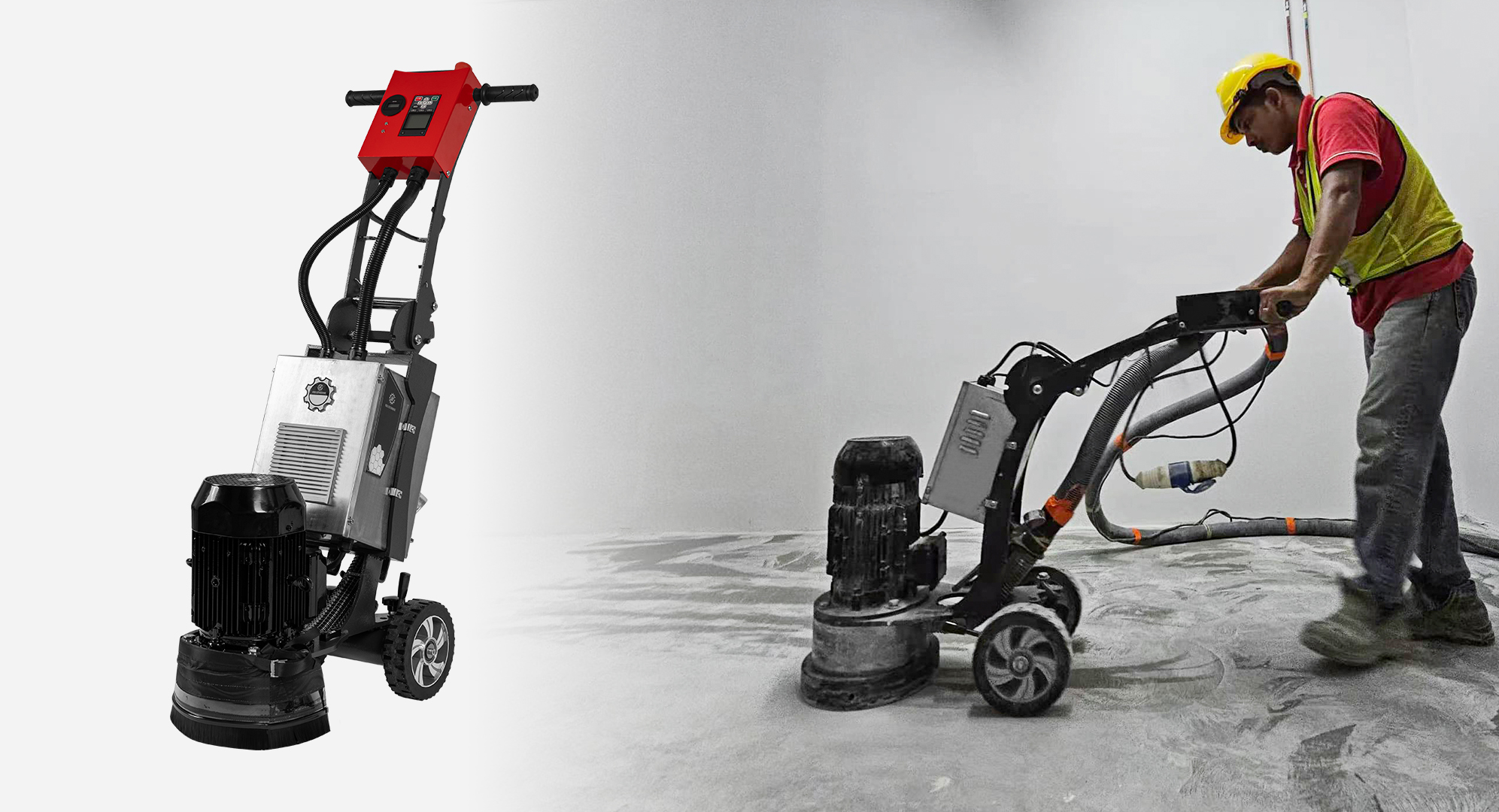

This small grinder is primarily used for polishing the edges and corners of concrete floors. It is also suitable for grinding in tight spaces and small areas on construction sites. It can be equipped with cup wheels, metal grinding discs, resin grinding discs, and bush hammer for scarifying, grinding, and polishing.

‌✓ Dust Cover Switch
‌✓ Variable Speed Control
‌✓ Foldable Handle
‌✓ Damping System
‌✓ Lightweight and P ortable.
‌✓ Multi-functional Plate.
‌✓ Adjustable Horizontal Angle
Instructions pdf
product descriptionFEATURESMachine parametersrelated products

product description

This small grinder is primarily used for polishing the edges and corners of concrete floors. It is also suitable for grinding in tight spaces and small areas on construction sites. It can be equipped with cup wheels, metal grinding discs, resin grinding discs, and bush hammer for scarifying, grinding, and polishing.

FEATURES

Discover all features and learn more about the benefits.

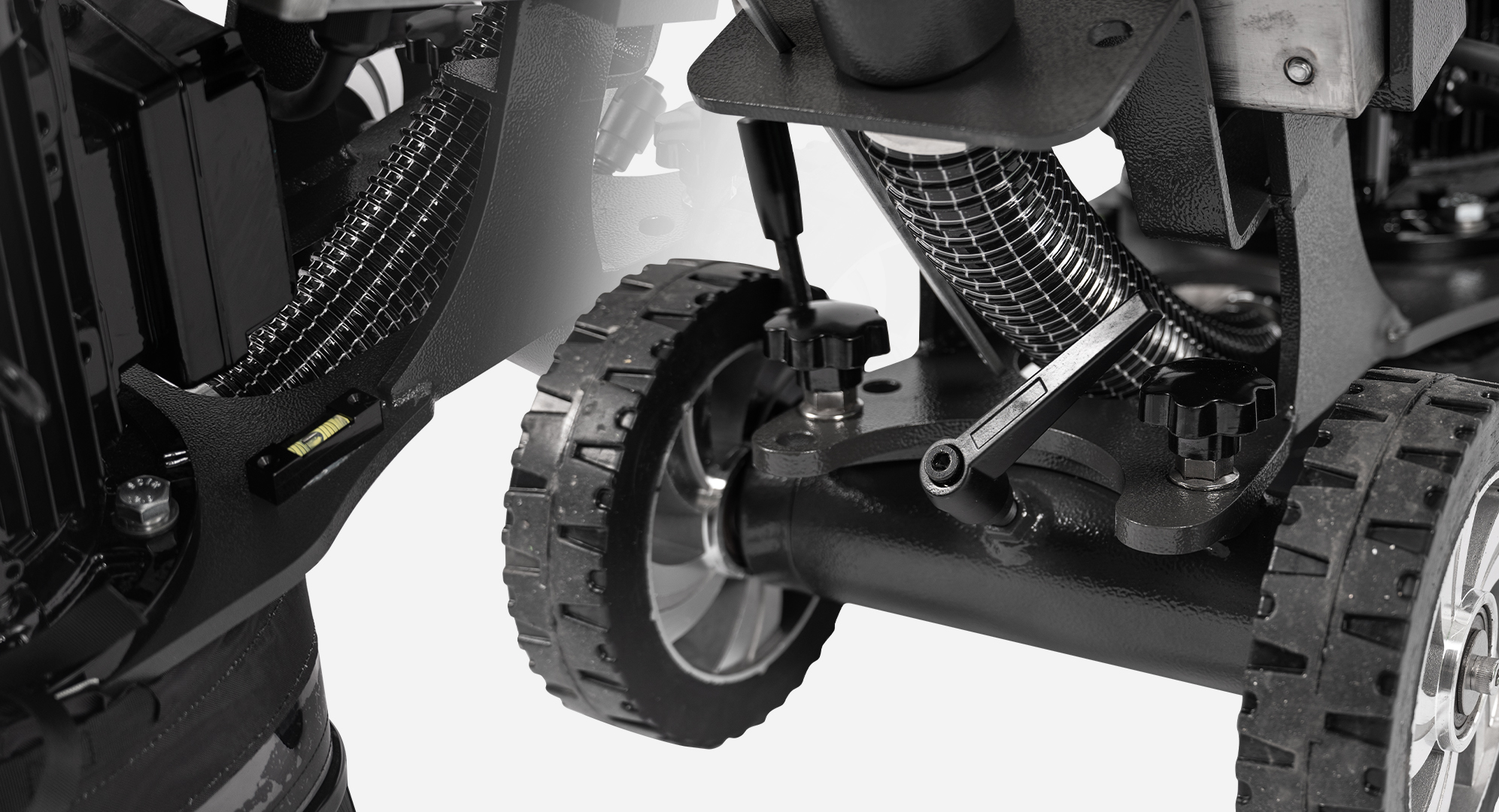

Adjustable Horizontal Angle

Features an adjustable horizontal angle, making it convenient for working on different floor surfaces.

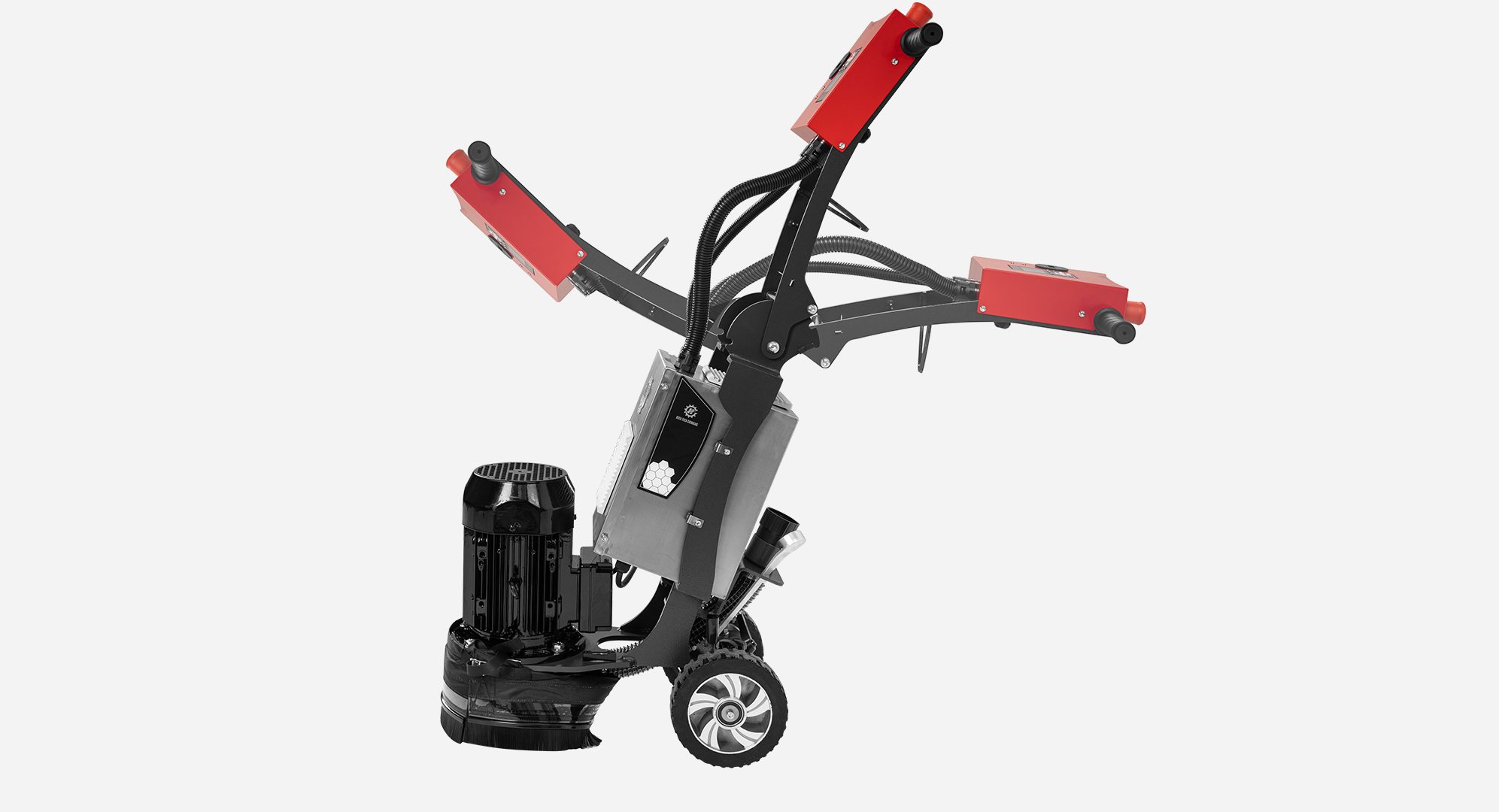

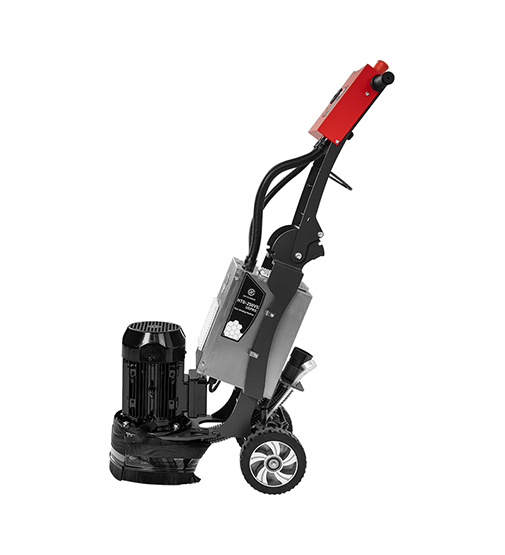

Foldable Handle

The foldable handle allows workers to operate from different angles with ease.

Lightweight and P ortable.

Weighing only 70 kilograms, it is easy to transport.

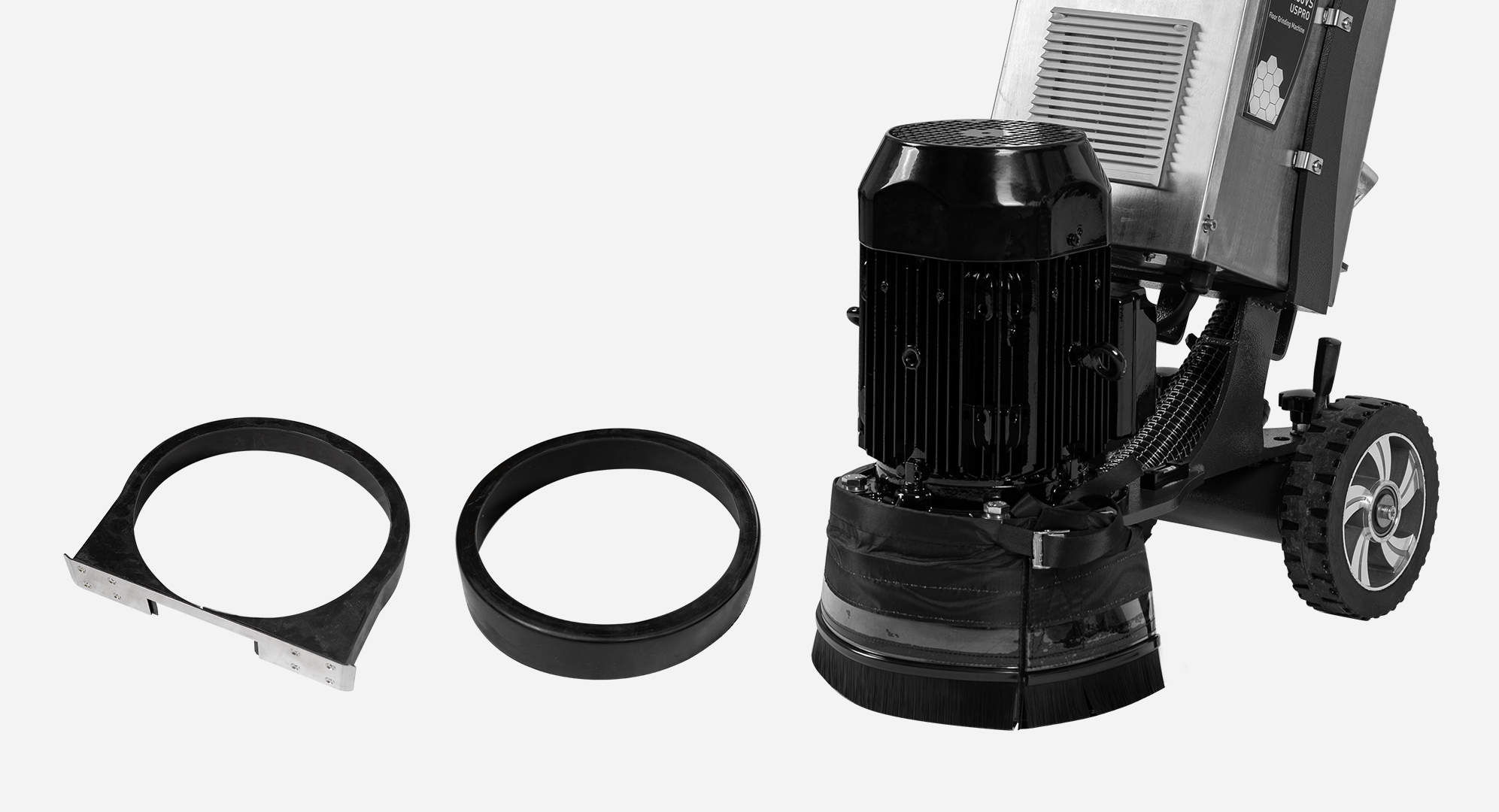

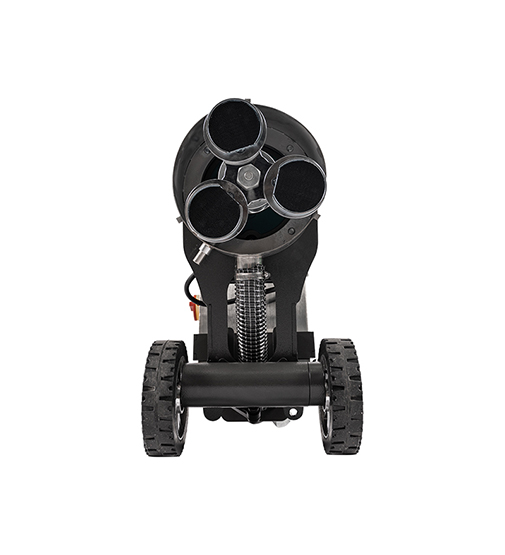

Dust Cover Switch

You can select either a universal or edge-sealing dust cover based on floor conditions, allowing for placement as close as 3mm from the wall.

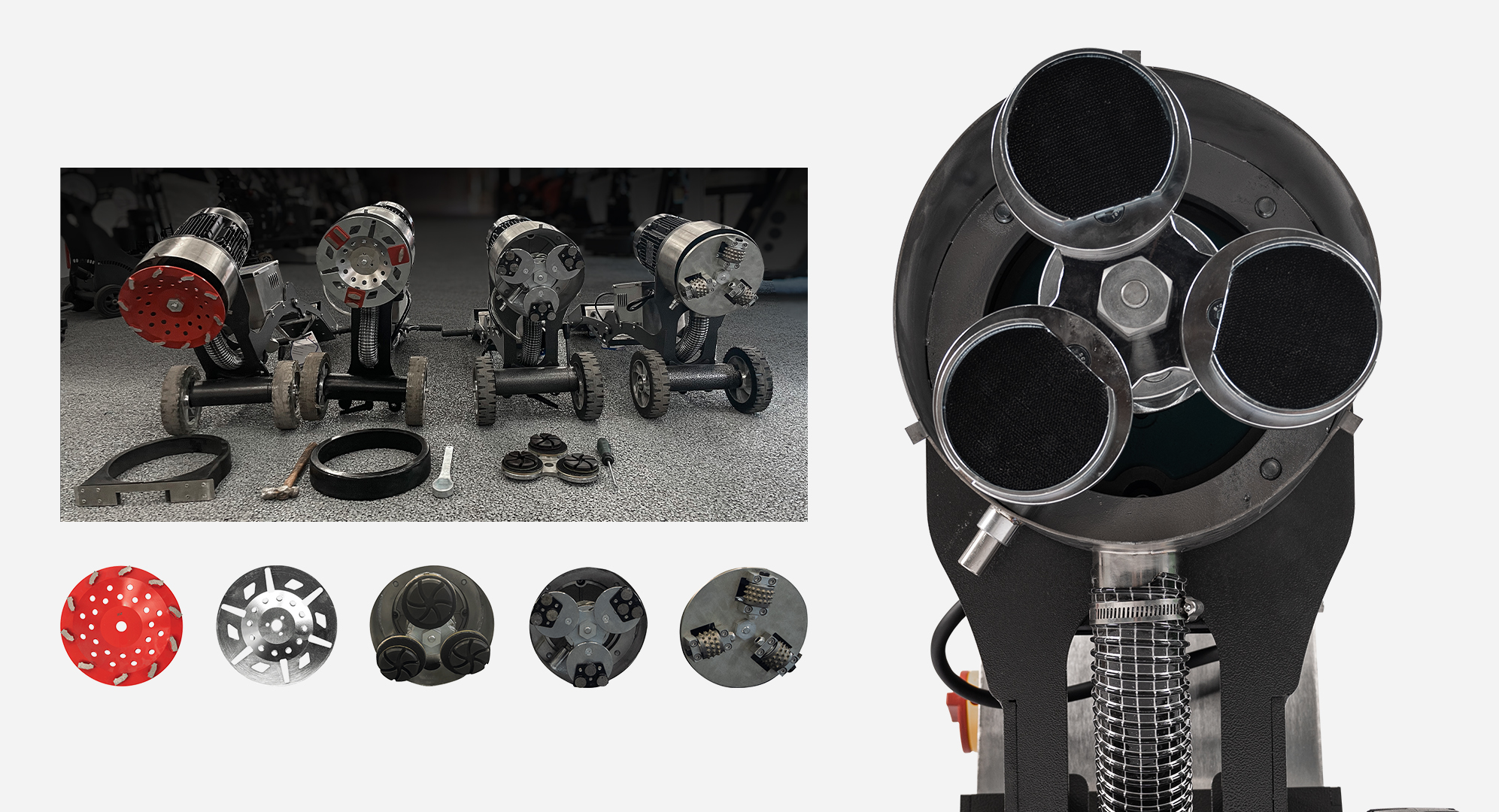

Multi-functional Plate.

Capable of accommodating various types of grinding tools to achieve scarifying, grinding, and polishing outcomes.

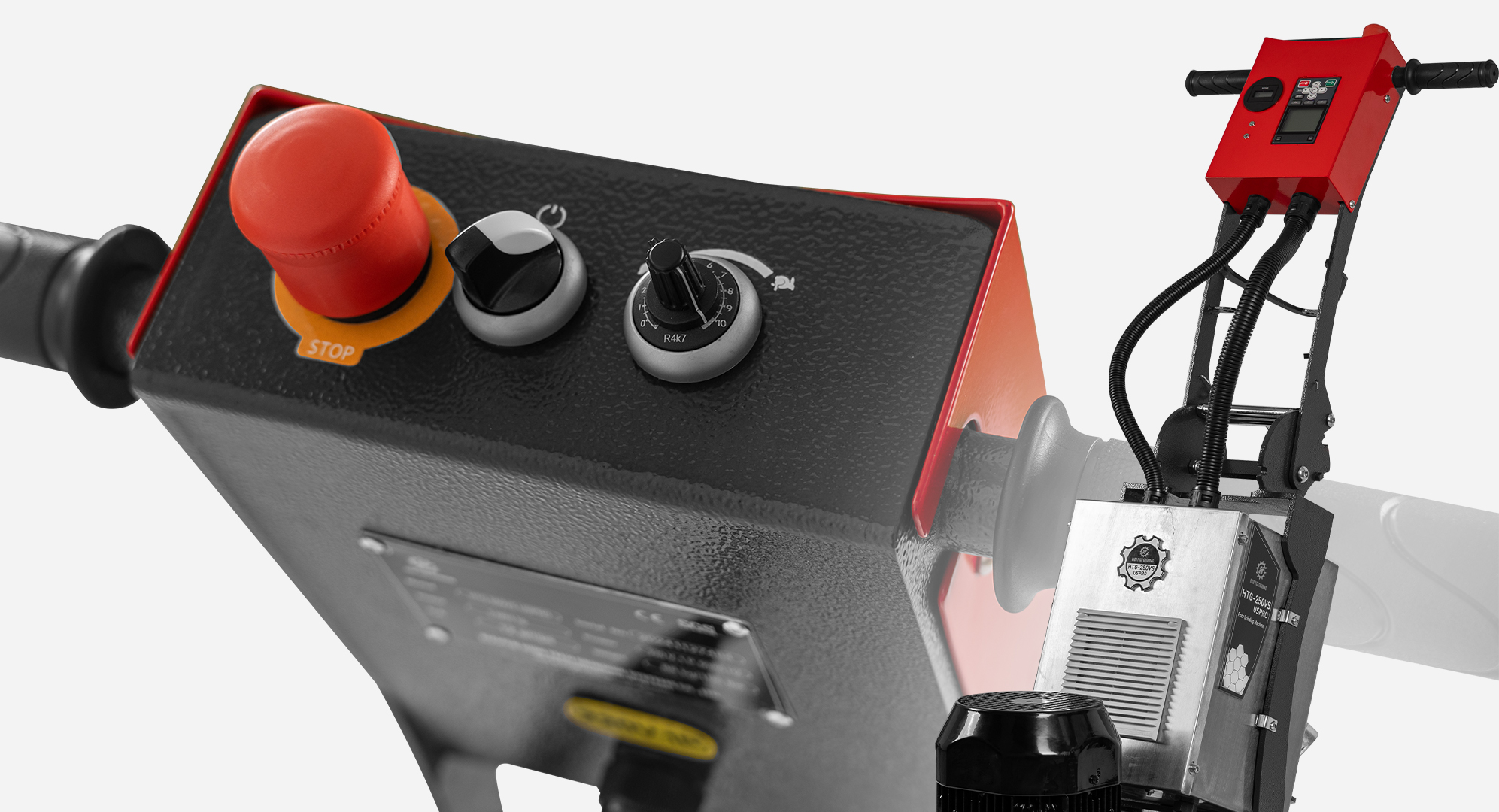

Variable Speed Control

Features variable speed control, allowing adjustable speeds with three settings for edge grinding, ensuring precise polishing.

feature overview (7)

✓ Dust Cover Switch

✓ Variable Speed Control

✓ Foldable Handle

✓ Damping System

✓ Lightweight and P ortable.

✓ Multi-functional Plate.

✓ Adjustable Horizontal Angle

Machine parameters

ALL PRODUCTS SPECIFICATION HTG-250VS USPRO HTG-250VS ULTRA
HTG-250VS
ENGINE
Engine Power (As rated by the engine manufacturer) 3KW 3KW
MOTOR
Power source Corded Corded
Rated input power 3KW 3KW
Phases 1ph 1ph
Voltage 200-240V 200-240V
Rated current 11 A 11A
Frequency 50-60 Hz 50-60 Hz
Pins 1P+N+E 1P+N+E
EQUIPMENT
Grinding width 250 250
Number of grinding discs 1 1
Direction of rotation One direction One direction
Grinding disc diameter 250 mm 250 mm
Grinding disc speed min 350 350
Grinding disc speed max 1500 1500
Grinding pressure, max 41kg/90.4 lbs
TRANSMISSION
Type of operation Walk-behind Walk-behind
DIMENSIONS
Product size length 1160mm
Product size width 460mm
Product size height 1060mm
Weight (complete product w/o side packed articles) 88.5 kg/195 lbs
