GBD Grinder
HTG-1680 GBD
GBD stands for Gear Bi-Directional, offering two groundbreaking features.
Firstly, it allows for adjustable gear ratios between the gearbox and the plate.
Secondly, it enables the direction between them to be switched, either in the same or counter-wise direction. This pioneering technology empowers operators to tailor the machine s performance to their specific job requirements and desired finish within a gear-driven system. It is a innovation to the flatness, cutting depth, and efficiency of floor grinding, ideal for medium to large size of polished concrete and surface preparation.
✓ Exclusive gear bi-direction technology.
✓ SWIFT LARGE-AREA GRINDING
✓ SEAMLESS FLAT FLOORS
✓ INTEGRATED REMOVABLE VACUUM
✓ CUTTING-EDGE EFFICIENCY
✓ 3D hovering technology
✓ HMI SYSTEM
✓ Automatic dustcollection system
product description
In the world of floor grinding, innovation intersects with productivity through our latest breakthrough: GBD technology.
GBD stands for Gear Bi-Directional, offering two groundbreaking features.
Firstly, it allows for adjustable gear ratios between the gearbox and the plate.
Secondly, it enables the direction between them to be switched, either in the same or counter-wise direction. This pioneering technology empowers operators to tailor the machine s performance to their specific job requirements and desired finish within a gear-driven system. It is a innovation to the flatness, cutting depth, and efficiency of floor grinding, ideal for medium to large size of polished concrete and surface preparation.
FEATURES
Discover all features and learn more about the benefits.
-

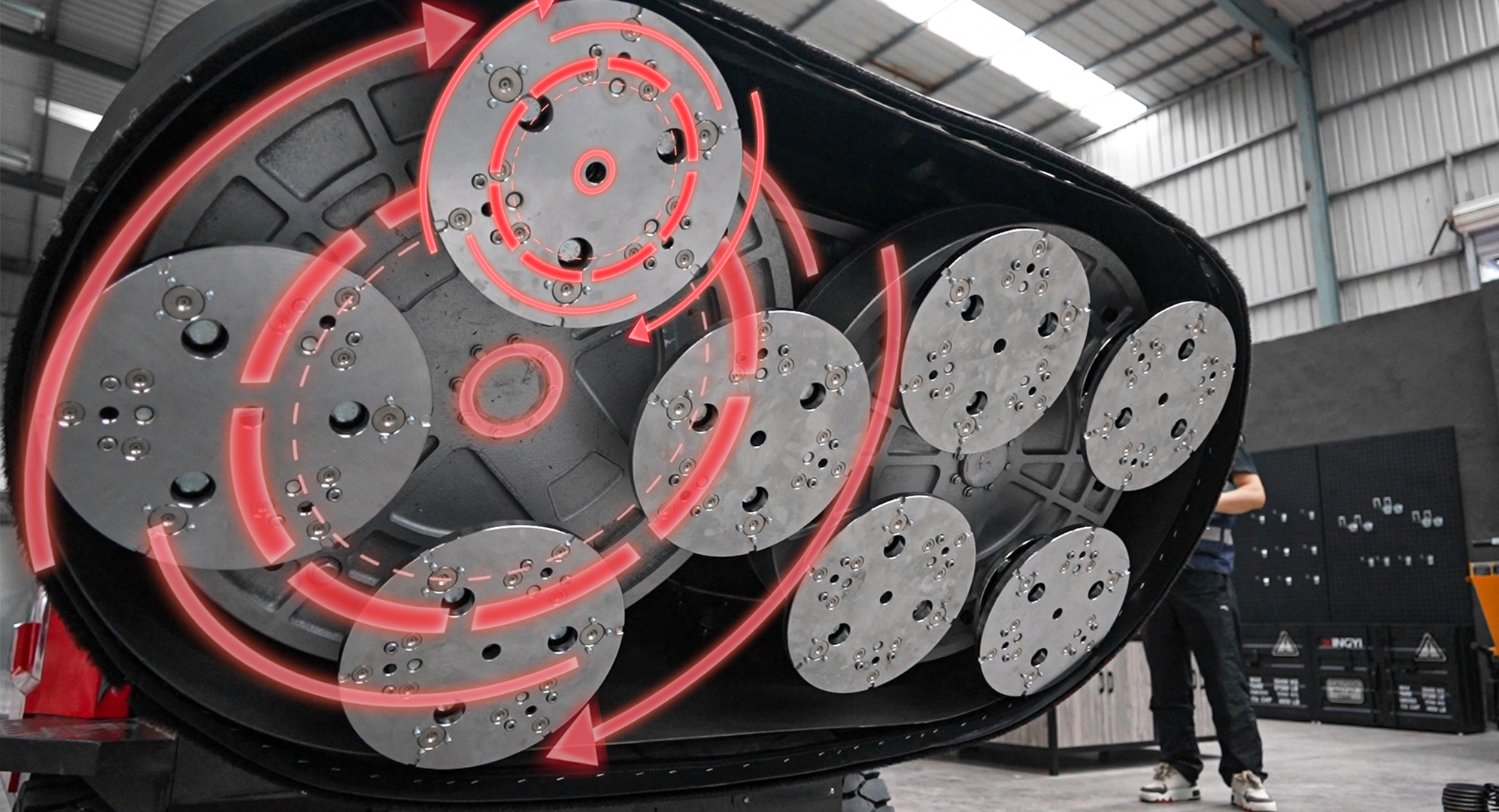

Exclusive gear bi-direction technology.
Exclusive gear bi-direction technology enables you to adjust both the gearratio and plate direction for professional-grade applications. Achieve deeper cutsand smoother finishes for a more polished result.
-
-

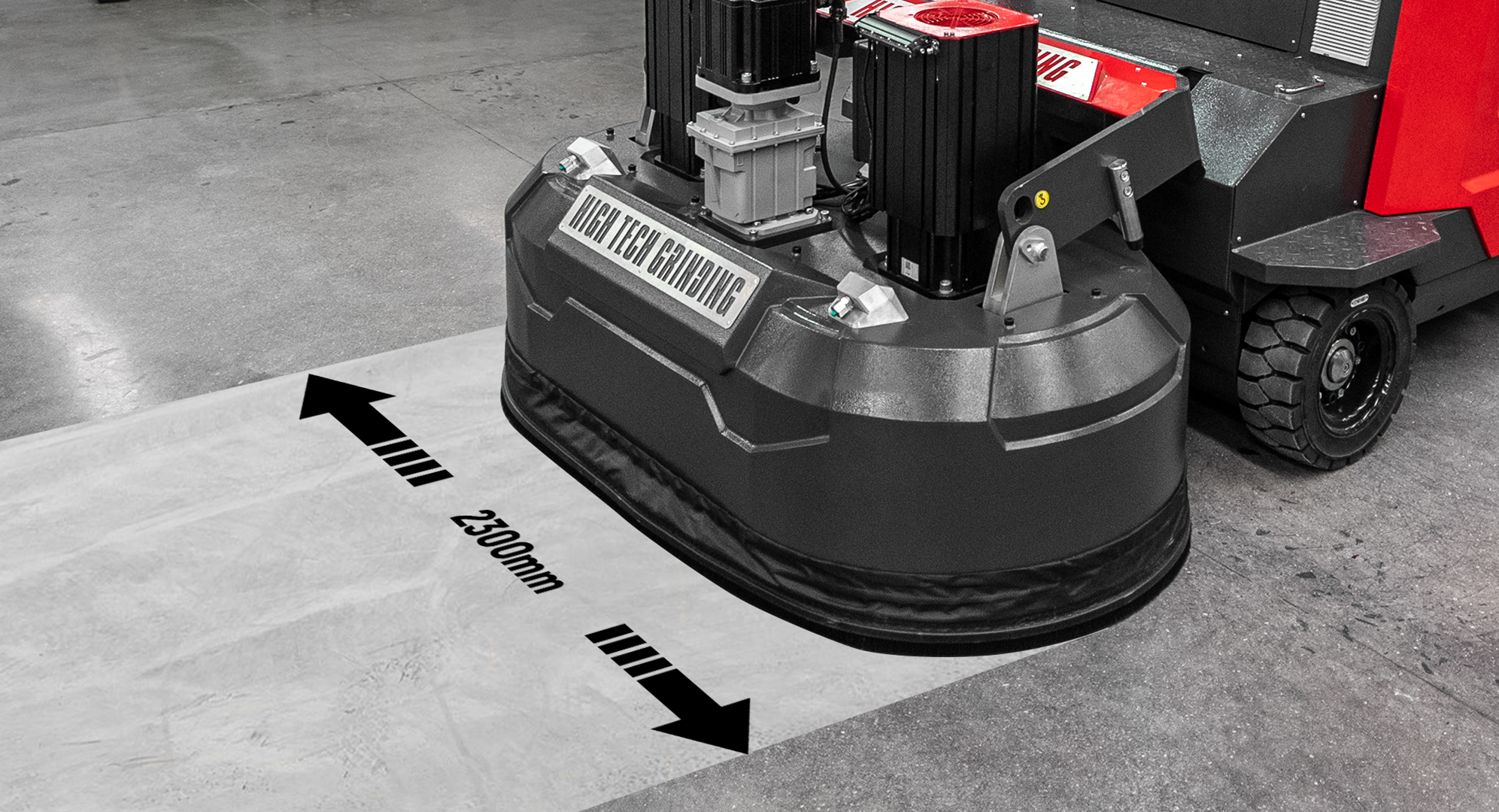

SWIFT LARGE-AREA GRINDING

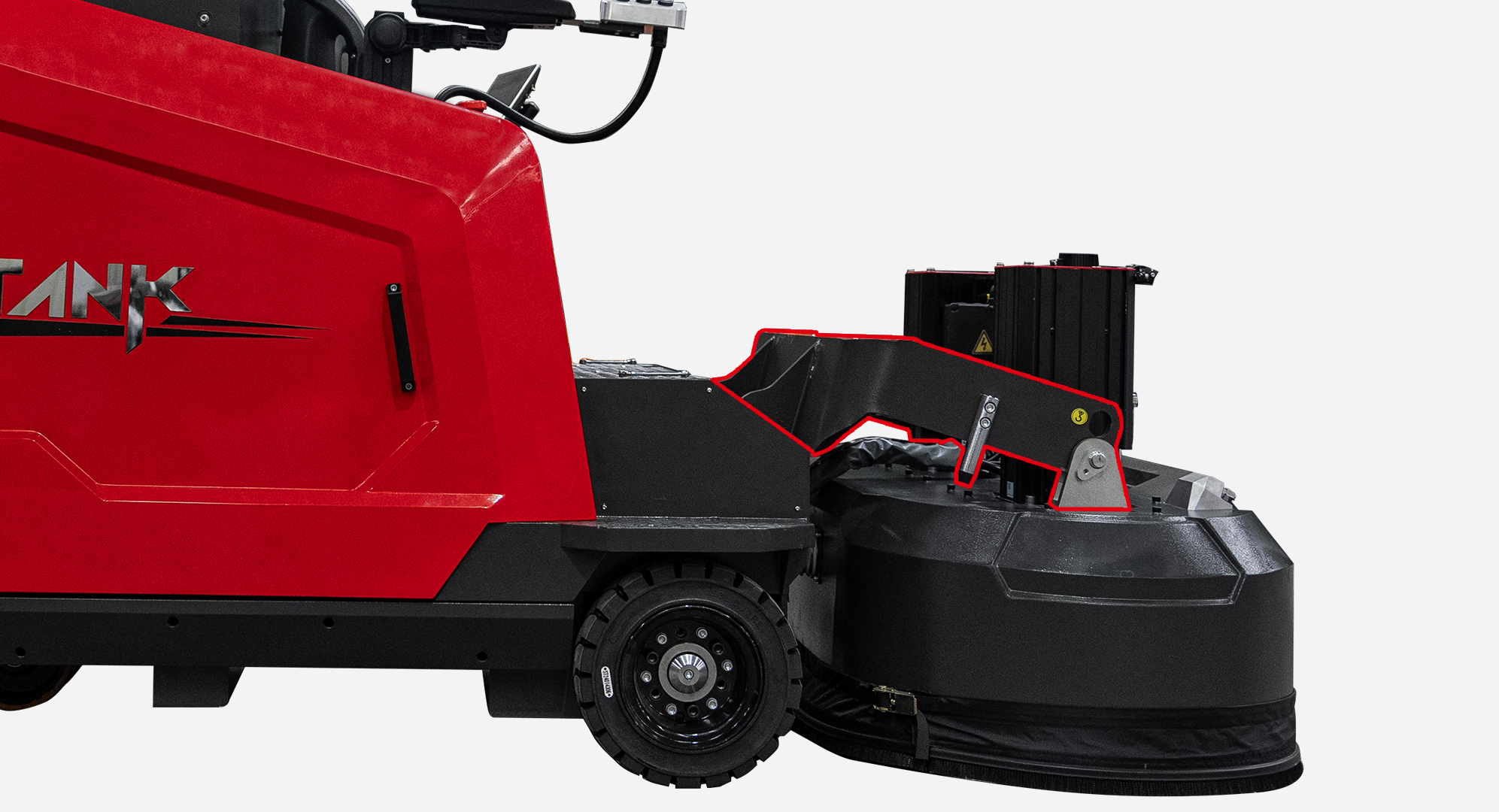

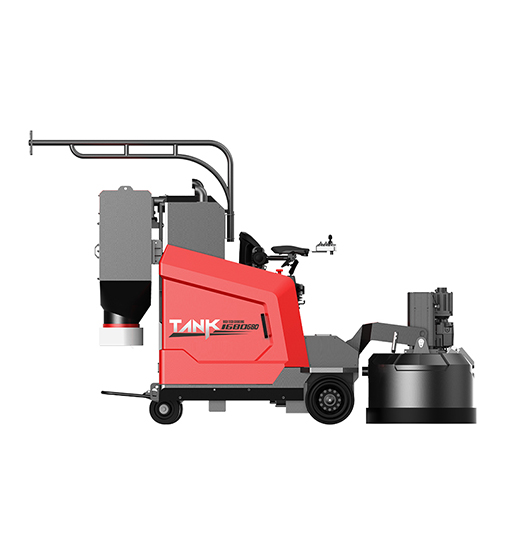

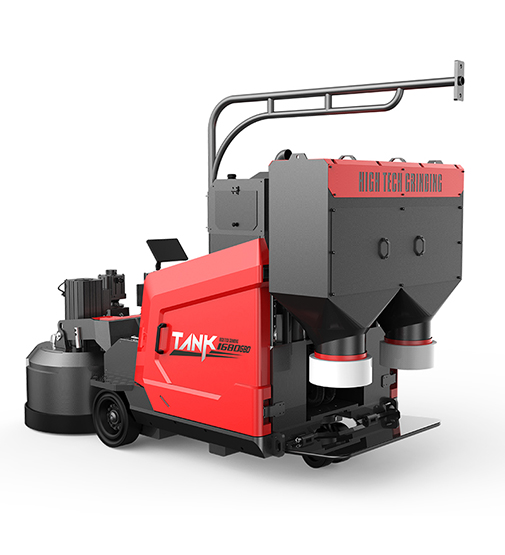

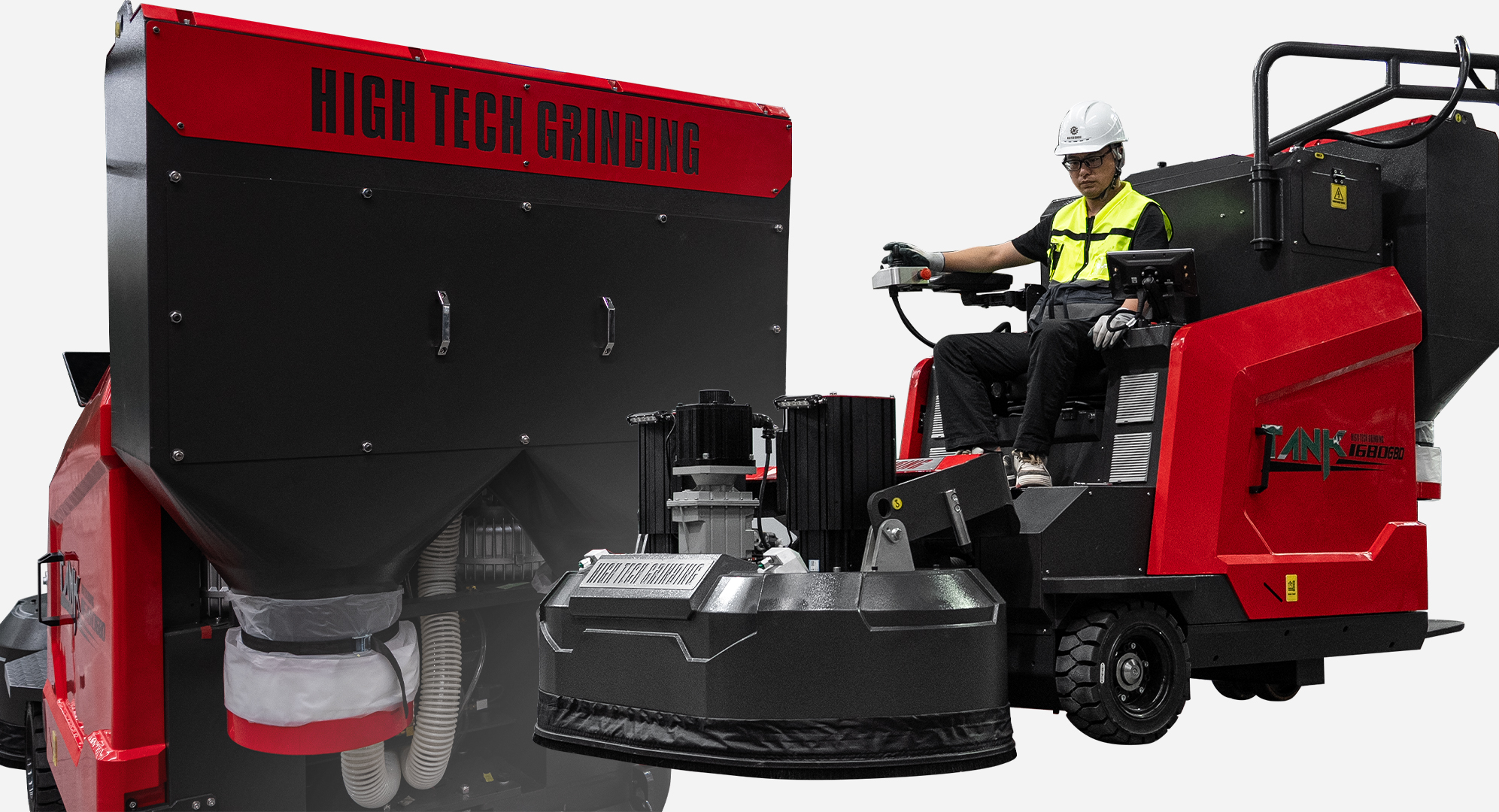

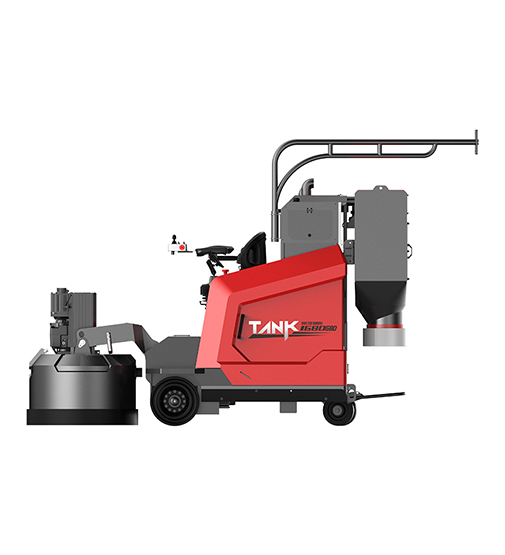

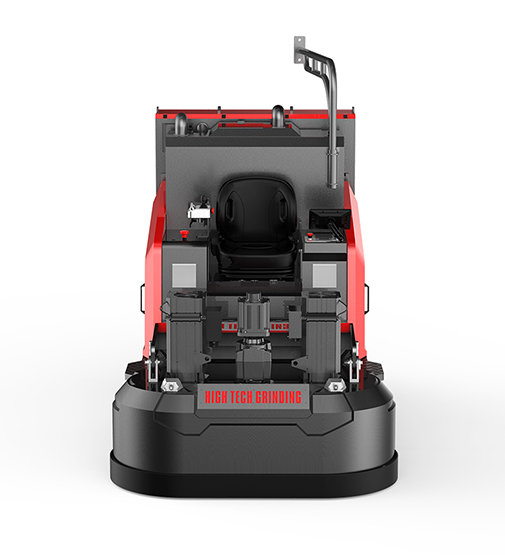

Tank 1680GBD, a ride-on concrete grinder with two heads, ensures efficient operation for extensive areas.
-
-
SEAMLESS FLAT FLOORS

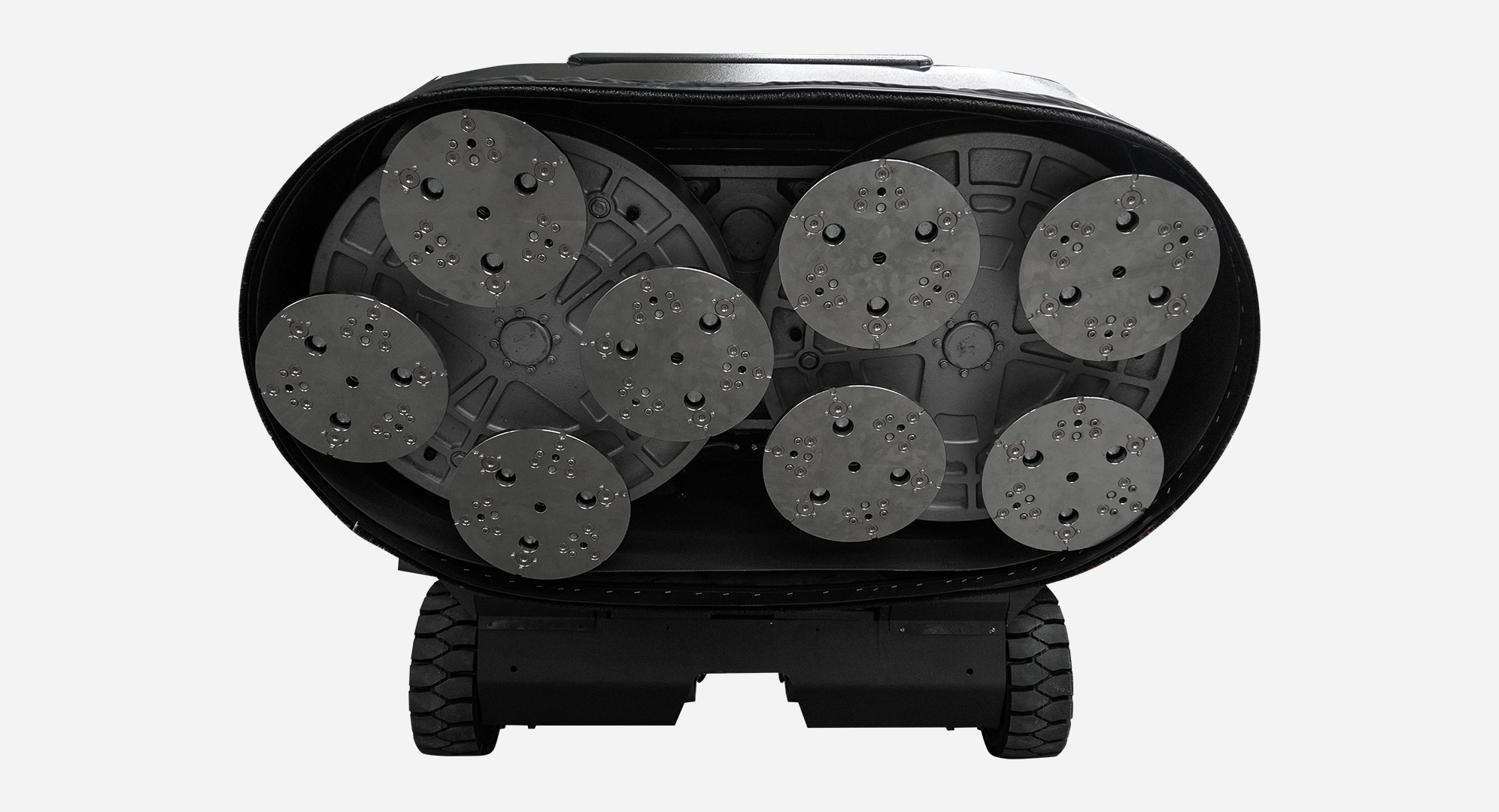

Two planetary gearboxes provide seamless performance, delivering impeccably flat floors after grinding.
-
-
INTEGRATED REMOVABLE VACUUM
Enhance efficiency with a built-in vacuum for dust control and easy cleanup during the grinding process.
-
-

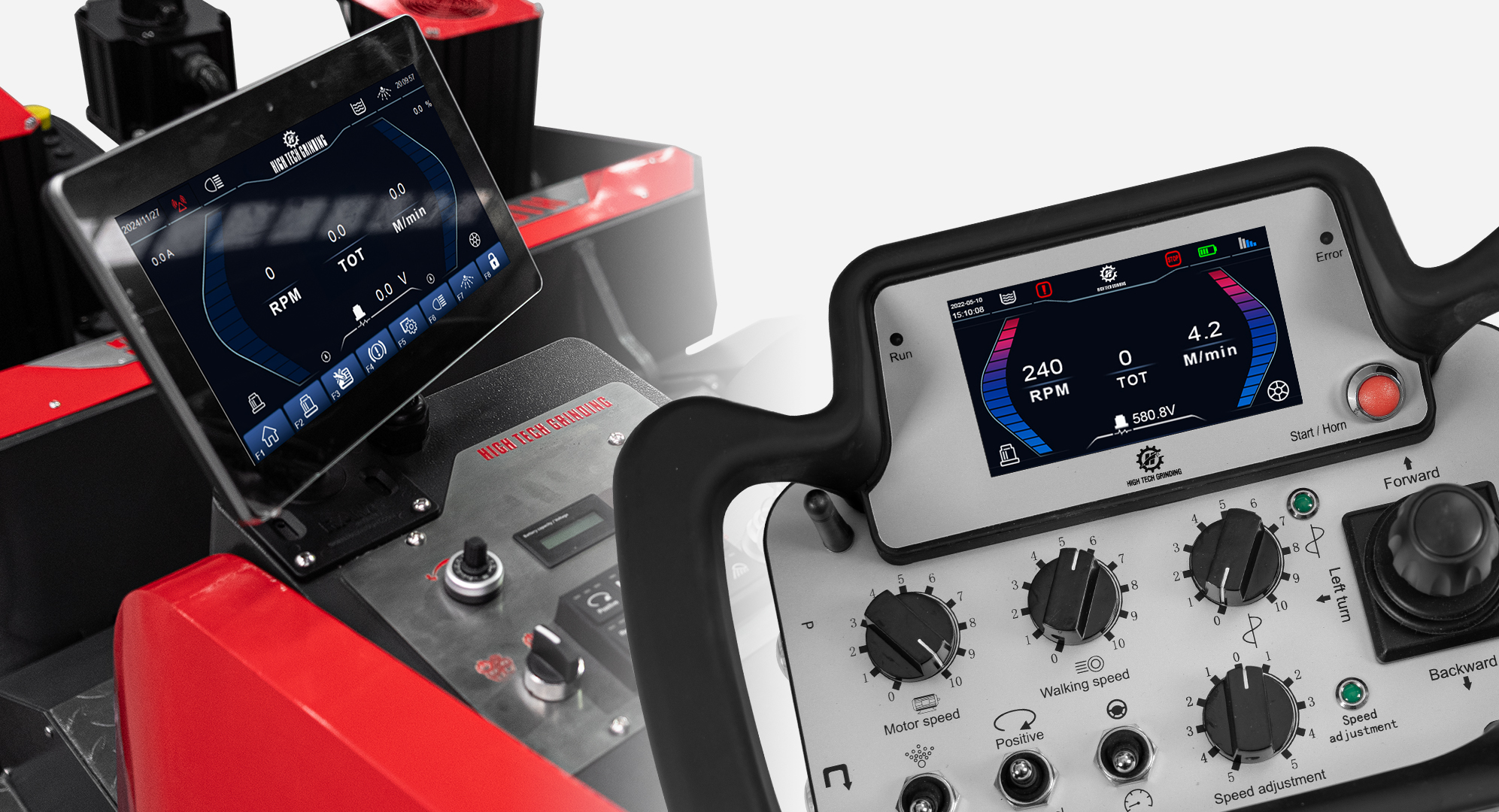

HMI SYSTEM
The HMl screen on a Xingyi floor grinder enhances user experience, control, andefficiency, contributing to improved productivity and quality of floor grindingoperations: Ease of Operation, Enhanced Control, Real-time Monitoring,Diagnostic Information.Making it is more clearer and intuitive toknow the fault and running information.
-
-

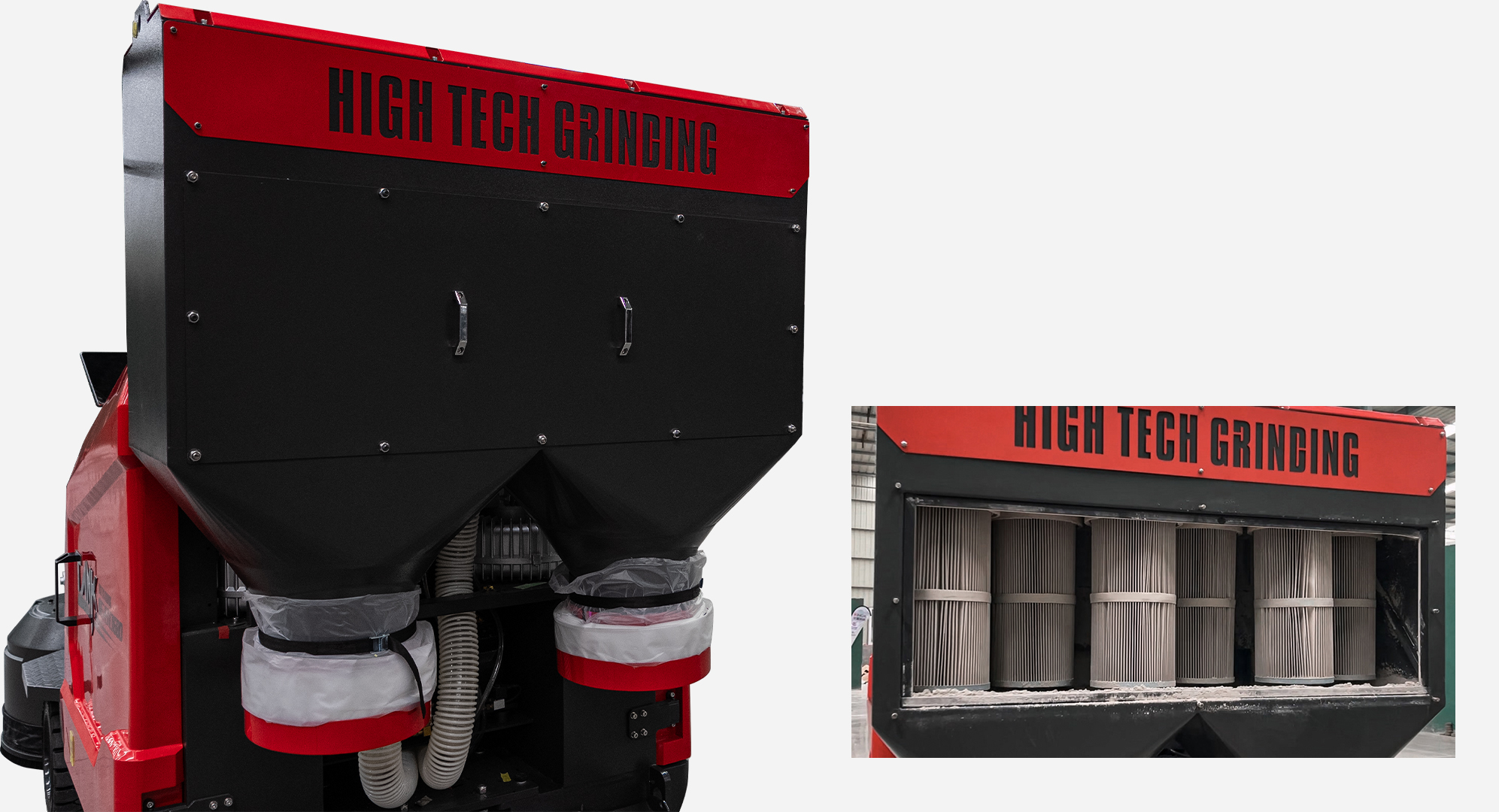

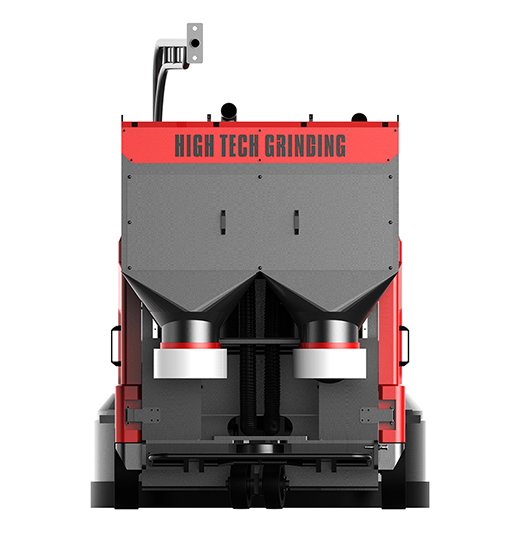

Automatic dustcollection system
Equipped with a detachable automaticdust-cleaning vacuum cleaner, makingthe construction site closer to dust-free
-
-
3D hoveringtechnology
PlD control from the hydraulicsvstem and pressure sensor, keepsthe grinding pressures consistent.
-
feature overview (7)
✓ Xingyi exclusive gear bi-direction technology.
✓ SWIFT LARGE-AREA GRINDING
✓ SEAMLESS FLAT FLOORS
✓ INTEGRATED REMOVABLE VACUUM
✓ CUTTING-EDGE EFFICIENCY
✓ 3D hoveringtechnology
✓ HMI SYSTEM
✓ Automatic dustcollection system
Machine parameters
| ALL PRODUCTS SPECIFICATION | Tank1680GBD （22.4KW*2+4.4） |
| Tank1680GBD | |
| ENGINE | |
| Engine Power (As rated by the engine manufacturer) | 22.4*2KW+3KW*2+3.7KW |
| MOTOR | |
| Power source | Corded |
| Rated input power | 54.5KW |
| Phases | 3 ph |
| Voltage | 380-480V |
| Rated current | |
| Frequency | 50-60 Hz |
| Pins | |
| EQUIPMENT | |
| Grinding width | 1688mm |
| Number of grinding discs | 8 |
| Direction of rotation | Gear Bi-Direction Floor Grinder |
| Grinding disc diameter | 315mm |
| Grinding disc speed min | 450rpm |
| Grinding disc speed max | 1950rpm |
| Grinding pressure, max | 1123.5kg |
| TRANSMISSION | |
| Type of operation | Remote-controlled/Semi-autu pilot |
| DIMENSIONS | |
| Product size length | 3073mm |
| Product size width | 1628mm |
| Product size height | 2396mm |
| Weight (complete product w/o side packed articles) | 3050kg |
| ALL PRODUCTS SPECIFICATION | TK1680GBD Vacuum |
| TK1680GBDVacuum(the vacuum cannot be used separately) | |
| ENGINE | |
| Engine Power (As rated by the engine manufacturer) | 15KW |
| MOTOR | |
| Power source | Corded |
| Rated input power | 15KW |
| Phases | 3 ph |
| Voltage | 380-480V |
| Rated current | |
| Frequency | 50/60HZ |
| Pins | 3P+E |
| EQUIPMENT | |
| Suction | 40Kpa/400Mbar |
| Air Flow | 0-2000m³/h |
| Cartridge Grade | H13 |
| Filter Area | 14.7㎡ |
| Maximum Flow | 2000m³/h |
| Filter Cleaning | Pulse Dust Cleaning |
| Hose | φ80mm |
| DIMENSIONS | |
| Product size length | 1363mm |
| Product size width | 587mm |
| Product size height | 1830mm |
| Weight (complete product w/o side packed articles) | 267kg |
