GBD Grinder

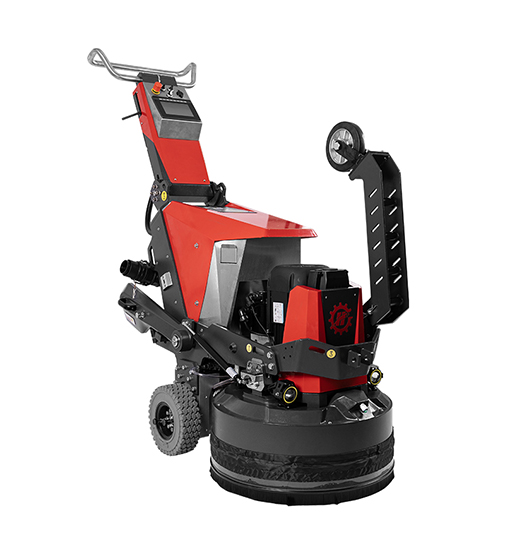

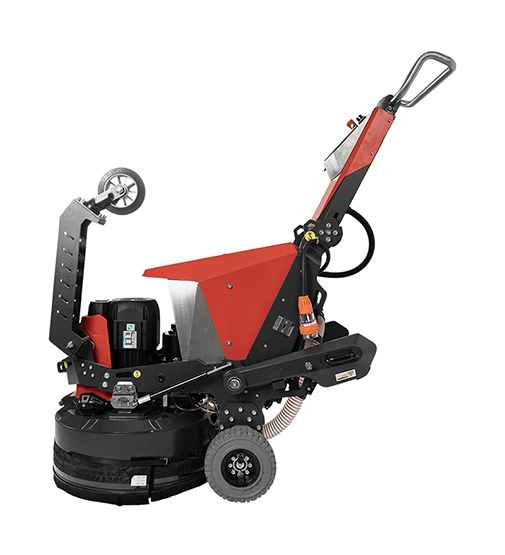

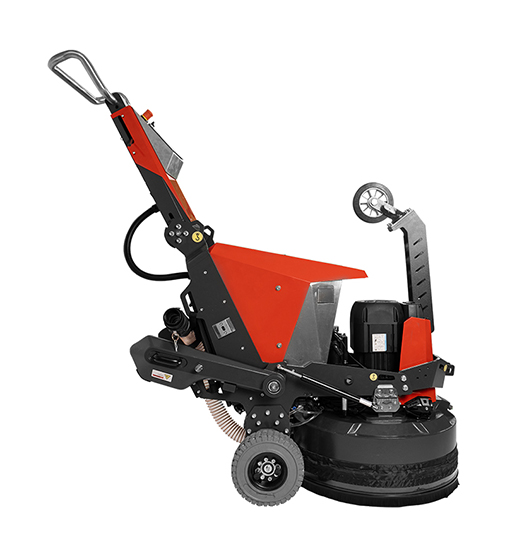

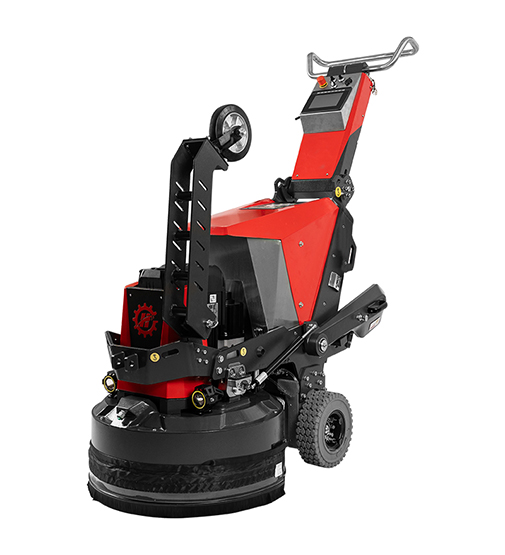

HTG-800 GBD
GBD stands for Gear Bi-Directional, offering two groundbreaking features.
Firstly, it allows for adjustable gear ratios between the gearbox and the plate.
Secondly, it enables the direction between them to be switched, either in the same or counter-wise direction. This pioneering technology empowers operators to tailor the machine is performance to their specific job requirements and desired finish within a gear-driven system. It is a innovation to the flatness, cutting depth, and efficiency of floor grinding, ideal for medium to large size of polished concrete and surface preparation.
✓ HTG exclusive remote control technology
✓ Two motor drive technology
✓ Maintenance-free gearbox designed for lifetime use
✓ Energy efficient and environmentally friendly PM motor
✓ Maintenance-free vector-balanced servo drive
✓ HMI screen on the machine handle & Remote Unit
✓ Sealed dust skirt for dry grinding
✓ Front and rear lights
✓ Easy transportation
product description
In the world of floor grinding, innovation intersects with productivity through our latest breakthrough: GBD technology.
GBD stands for Gear Bi-Directional, offering two groundbreaking features.
Firstly, it allows for adjustable gear ratios between the gearbox and the plate.
Secondly, it enables the direction between them to be switched, either in the same or counter-wise direction. This pioneering technology empowers operators to tailor the machine is performance to their specific job requirements and desired finish within a gear-driven system. It is a innovation to the flatness, cutting depth, and efficiency of floor grinding, ideal for medium to large size of polished concrete and surface preparation.
FEATURES
Discover all features and learn more about the benefits.
-

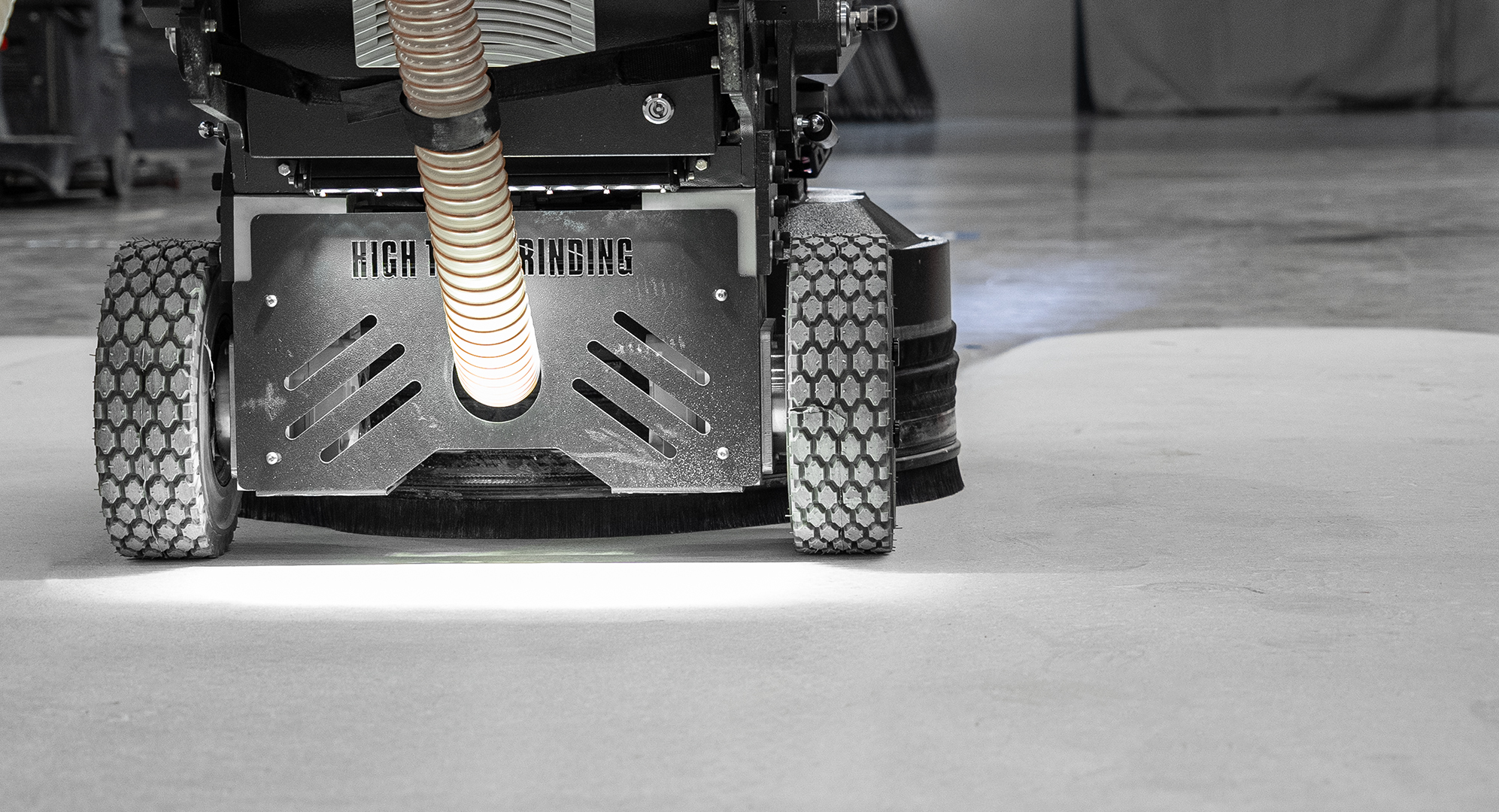

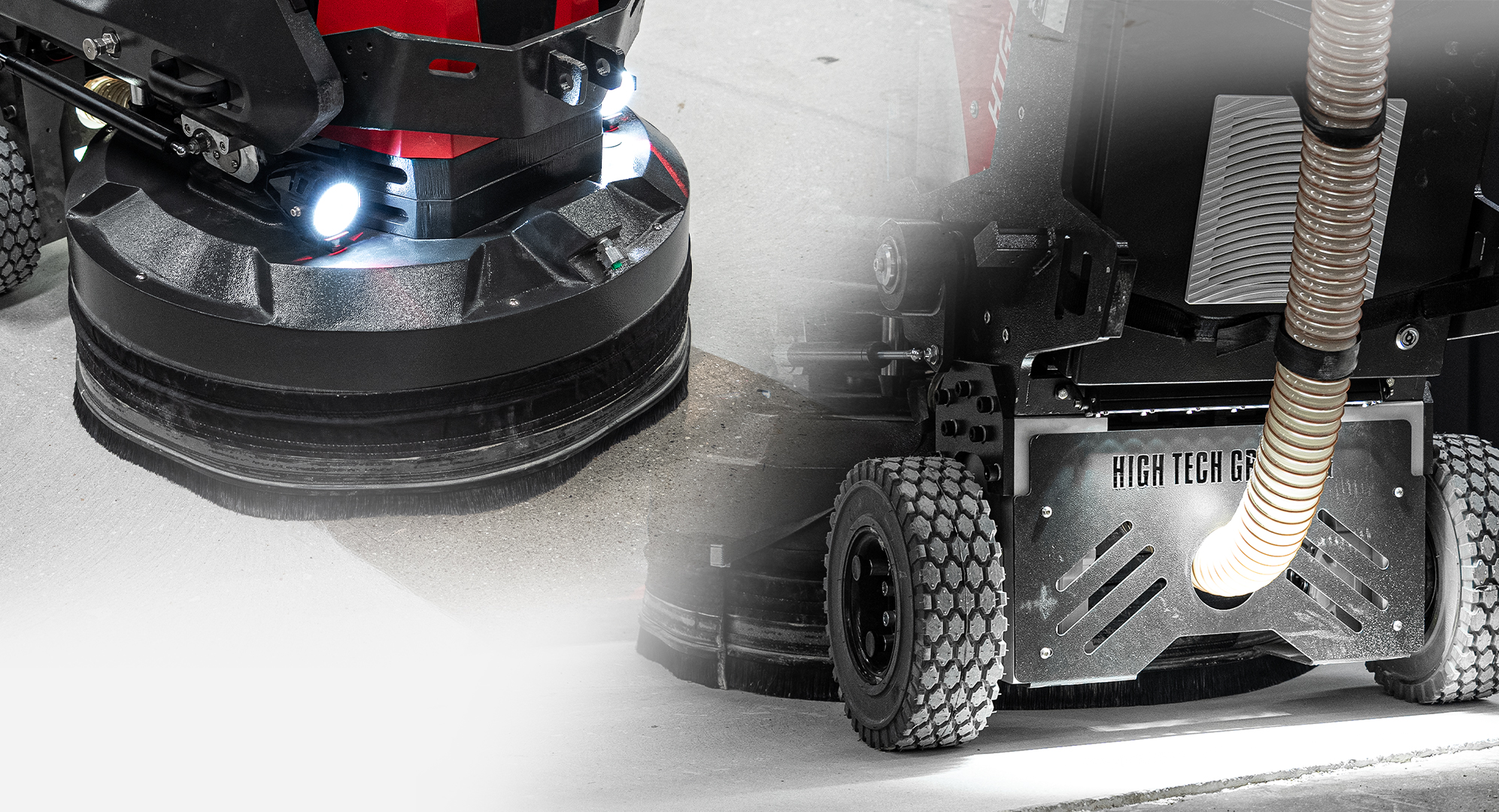

Front and rear lights
Front and rear lights assist with observation in low-light conditions, improving floor visibility and enhancing safety during application.
-
-

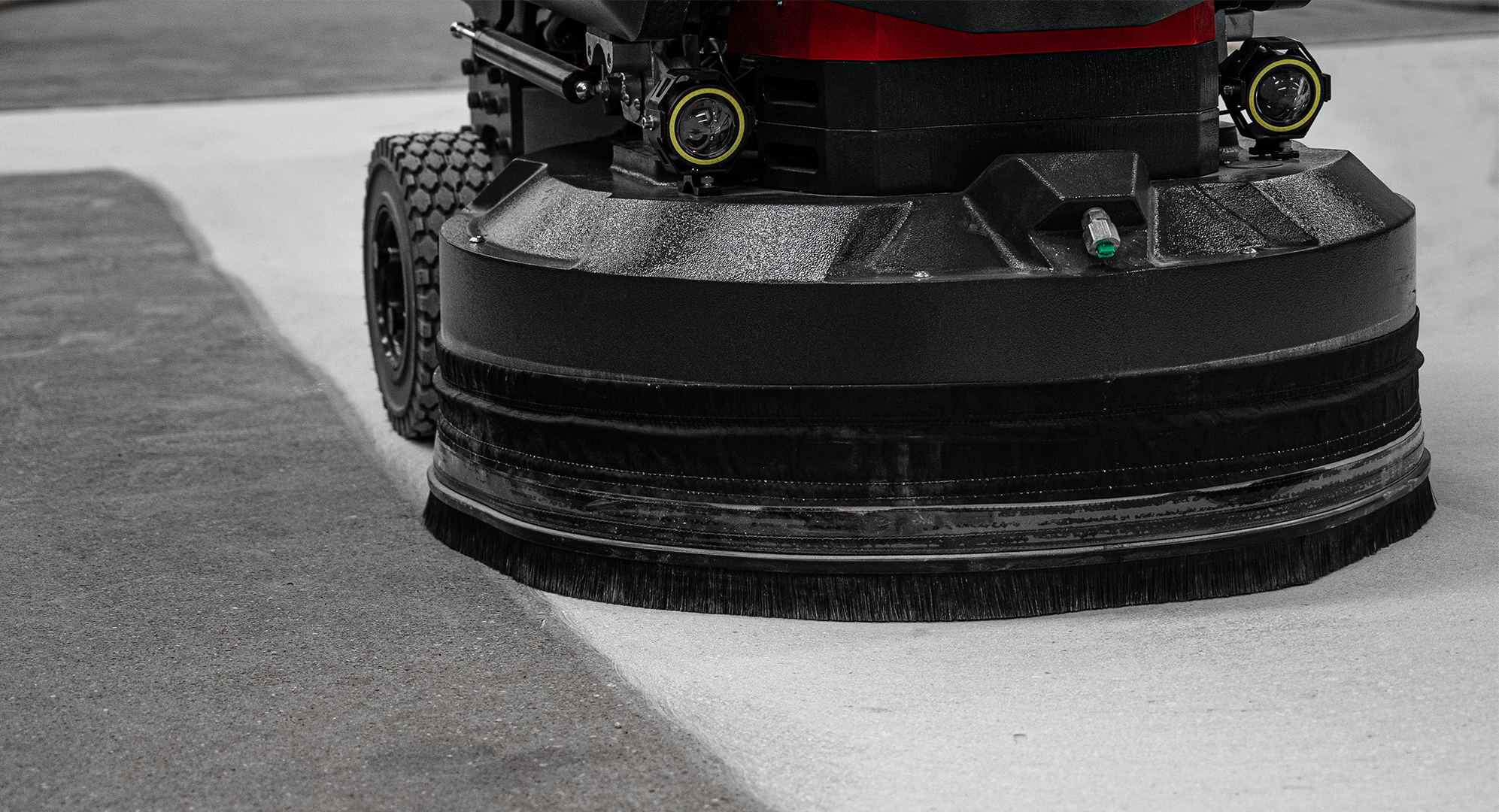

Sealed dust skirt for dry grinding
The enhanced dust skirt seals dust under the gearbox, improving vacuum dust extraction. This reduces downtime for collecting dust left on the floor, enhances scratch observation, and provides better health protection.
-
-

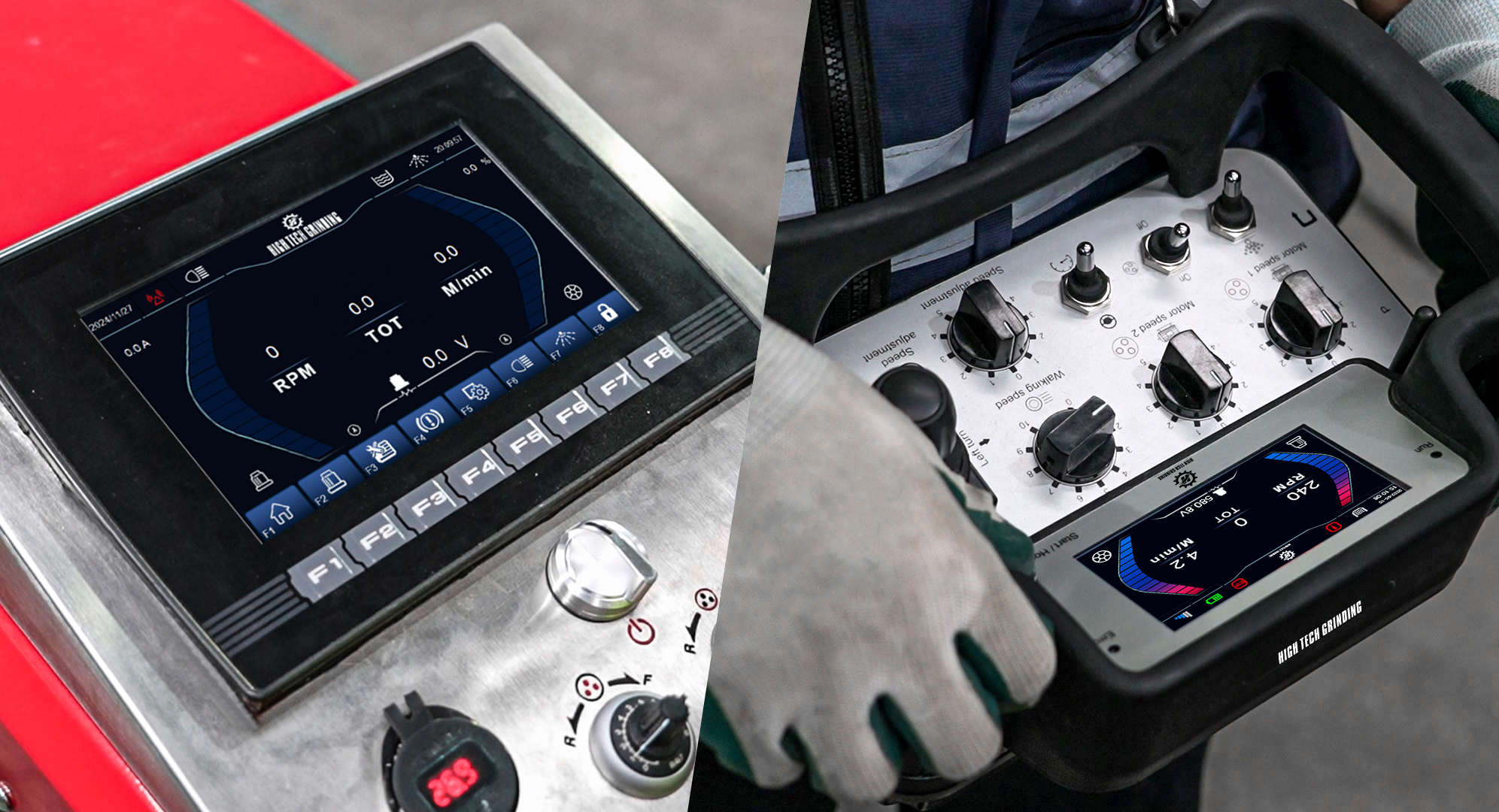

HMI screen on the machine handle & Remote Unit
The HMI screen on a Xingyi floor grinder enhances user experience, control, and efficiency, contributing to improved productivity and quality of floor grinding operations: Ease of Operation, Enhanced Control, Real-time Monitoring, Diagnostic Information.
-
-
Maintenance-free vector-balanced servo drive
The maintenance-free vector-balanced servo drive offers improved reliability and reduced downtime, it is uptime, precision, and efficiency critical.
-
-
Energy efficient and environmentally friendly PM motor
The use of a PM motor can effectively save approximately 25% of energy consumption and does not impact grid stability during startup.
-
-

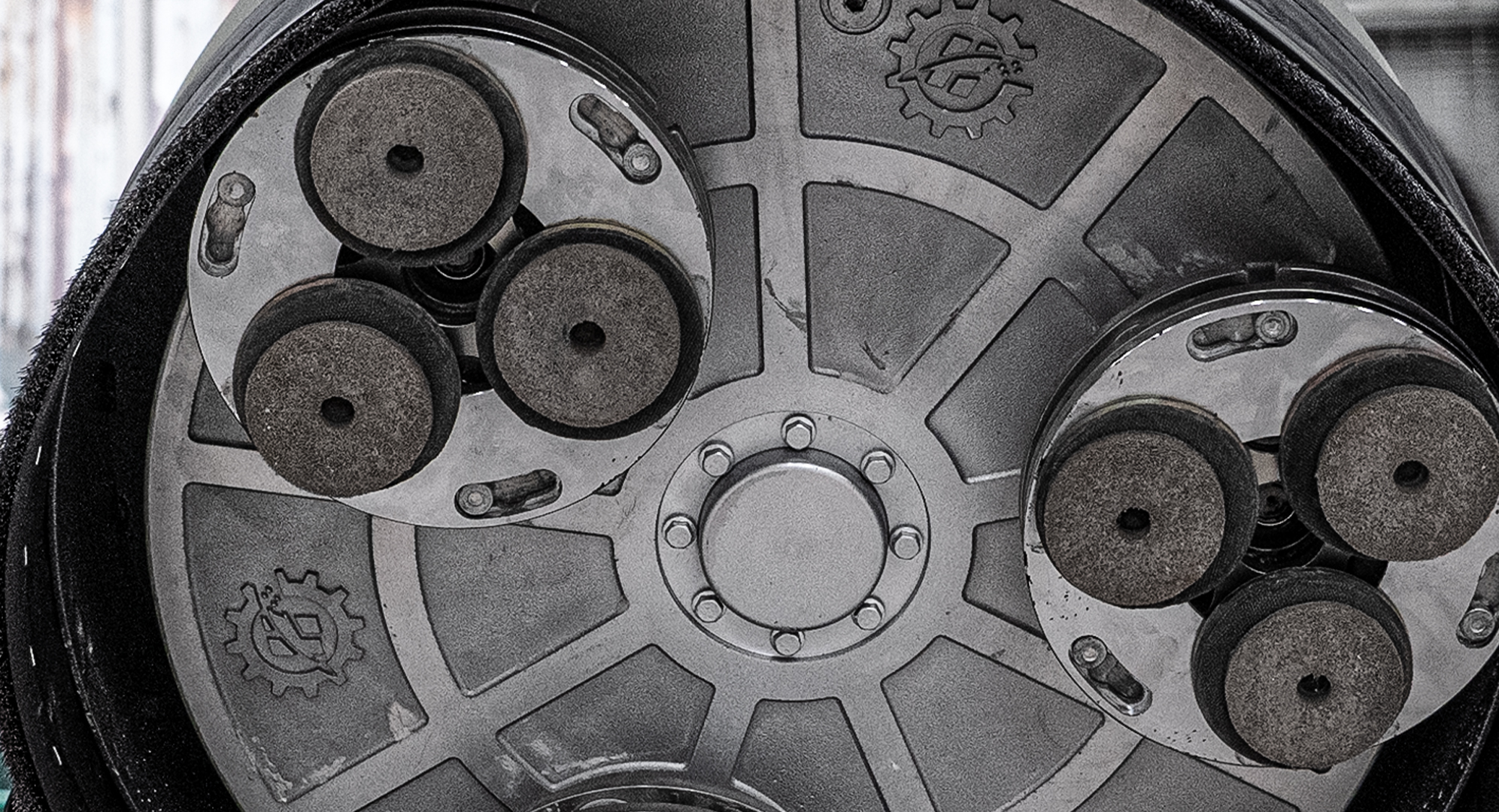

Maintenance-free gearbox designed for lifetime use
Durable and fully sealed gearbox with high-precision gears, featuring Xingyi is patented gear-transmission design for added protection. Additional invention patents include steel casting in an aluminum gearbox housing, mag-cleaning, breather valve etc.
-
-

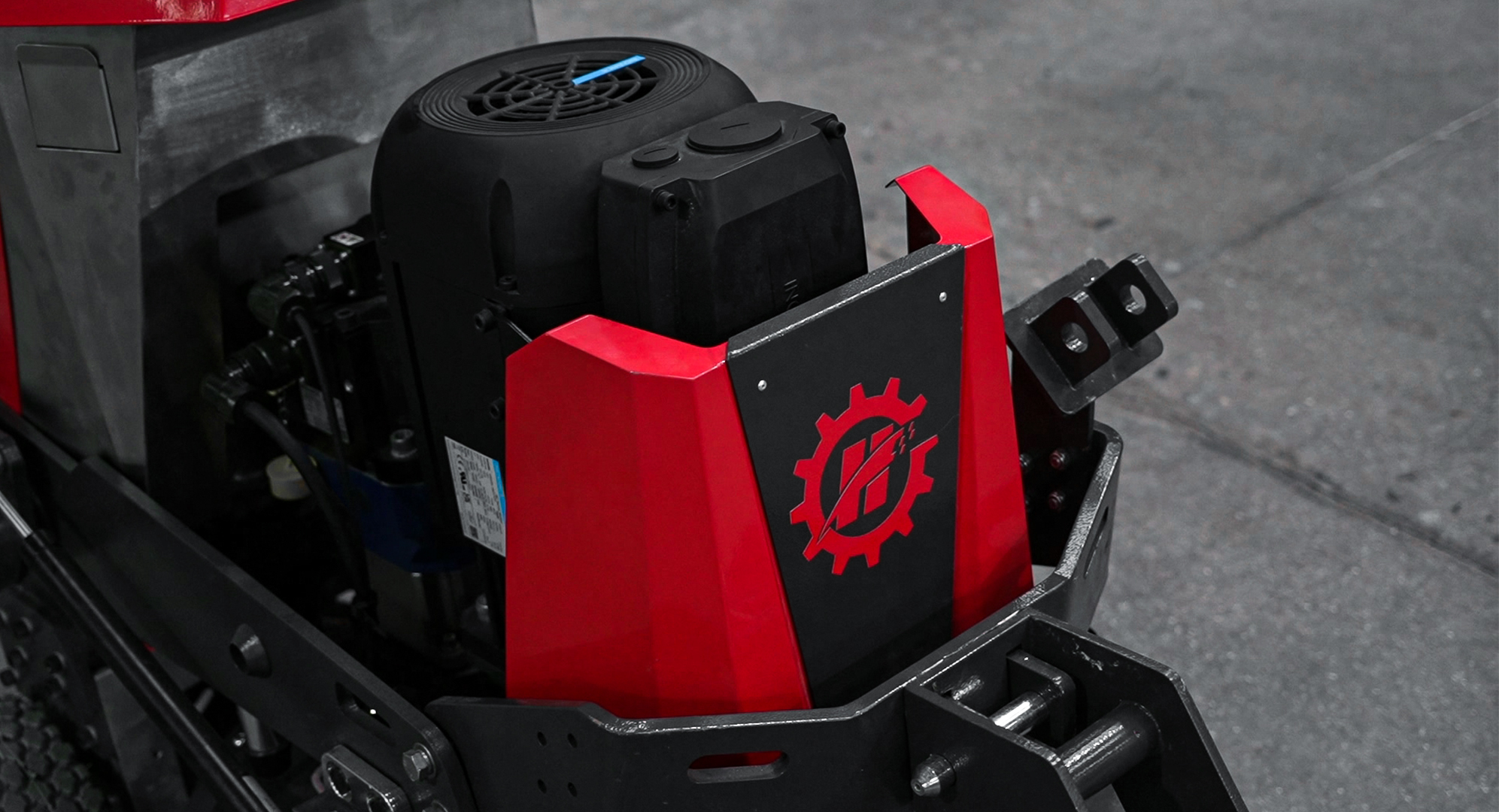

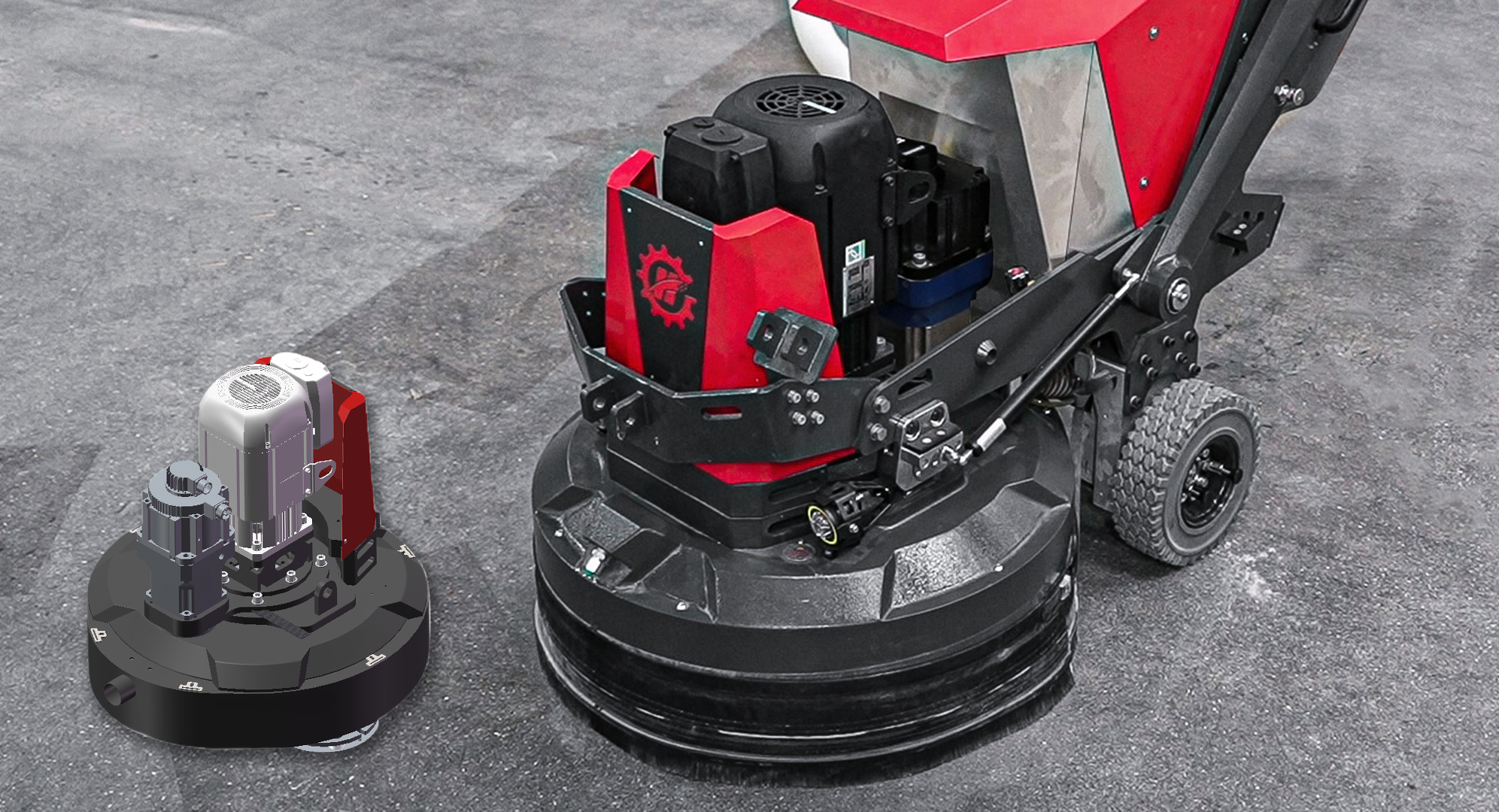

Two motor drive technology
The main motor is responsible for the operation of the planetary disc, while a smaller motor with EAS duty torque protection controls the operation of the large disc.
-
-

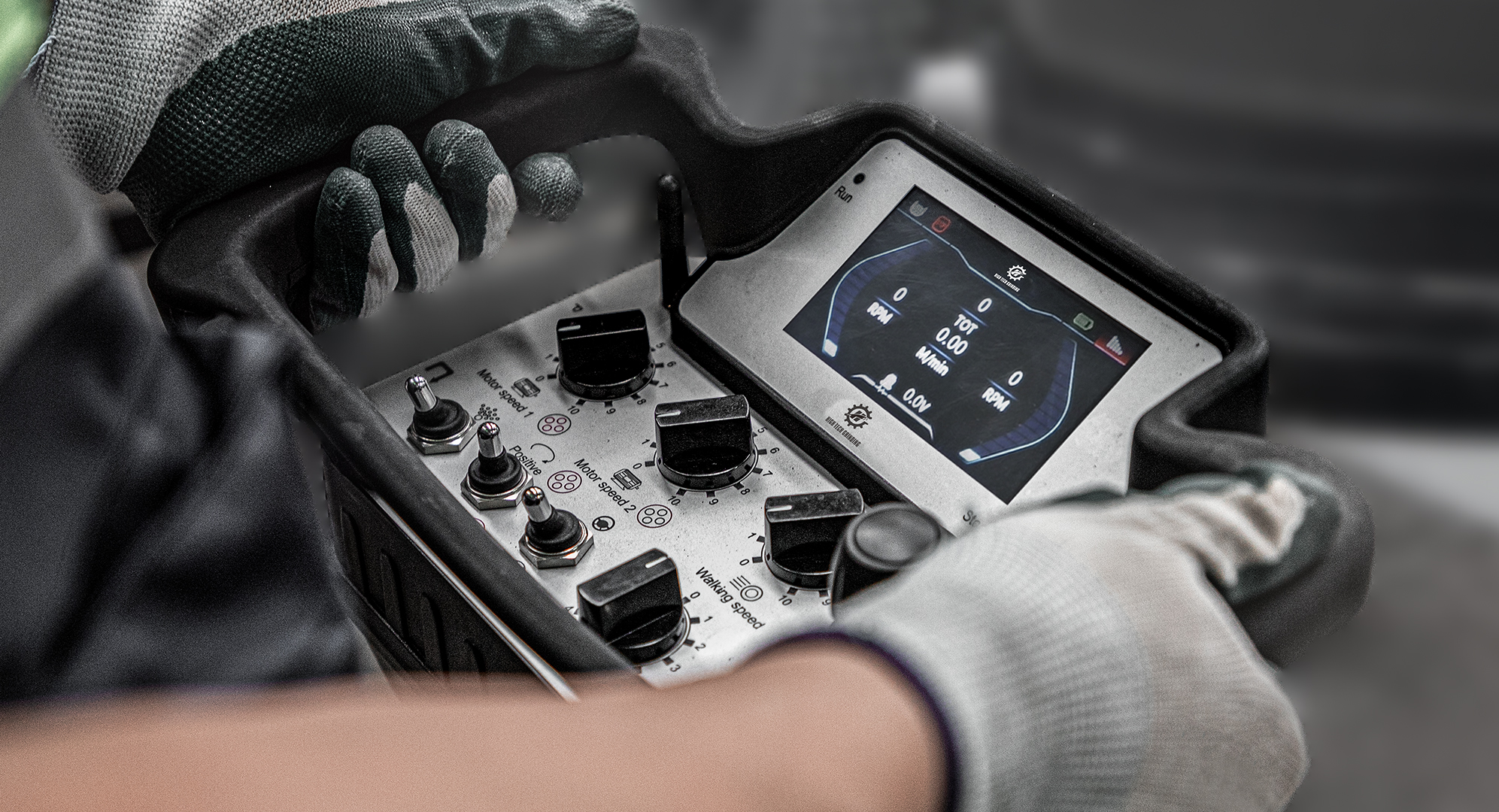

HTG exclusive remote control technology
The remote control system is entirely developed by Xingyi. The HMI screen on the remote unit provides clear insight into the machine is operating parameters, enabling more precise adjustments and control. The centralized motor, wheel, water, LED light, and ON/OFF switch on the unit streamline your operation. The infinite steering joystick adjusts the machine is direction based on the pressure applied to the joystick, providing a tactile feel. It is a testament to Xingyi is Proud technology.
-
feature overview (9)
✓ HTG exclusive remote control technology
✓ Two motor drive technology
✓ Maintenance-free gearbox designed for lifetime use
✓ Energy efficient and environmentally friendly PM motor
✓ Maintenance-free vector-balanced servo drive
✓ HMI screen on the machine handle & Remote Unit
✓ Sealed dust skirt for dry grinding
✓ Front and rear lights
✓ Easy transportation
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG800GBD | HTG800GBD （19KW+2.9KW） |
| HTG-800 GBD | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 21.9KW | 21.9KW |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 21.9KW | 21.9KW |
| Phases | 3 ph | 3 ph |
| Voltage | 380-480V | 380-480V |
| Frequency | 50-60 Hz | 50-60 Hz |
| EQUIPMENT | ||
| Grinding width | 793mm | 793mm |

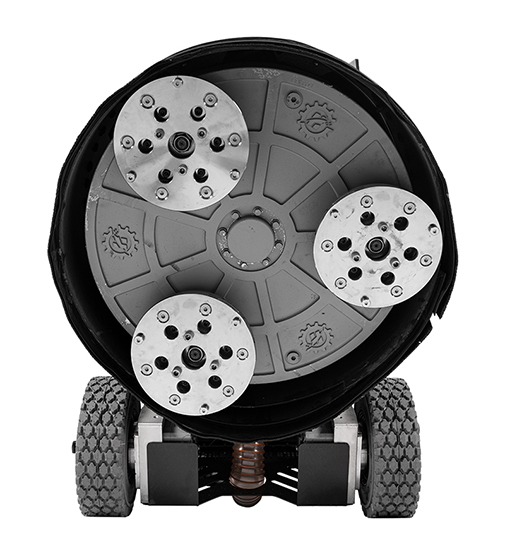

| Number of grinding discs | 3 | 3 |
| Direction of rotation | Gear Bi-Direction Floor Grinder | Gear Bi-Direction Floor Grinder |
| Grinding disc diameter | 256 | 256 |
| Grinding disc speed min | 350 | 350 |
| Grinding disc speed max | 1500 | 1950 |
| TRANSMISSION | ||
| Type of operation | Remote-controlled/Walk-behind | Remote-controlled/Walk-behind |
