Planetary Grinder

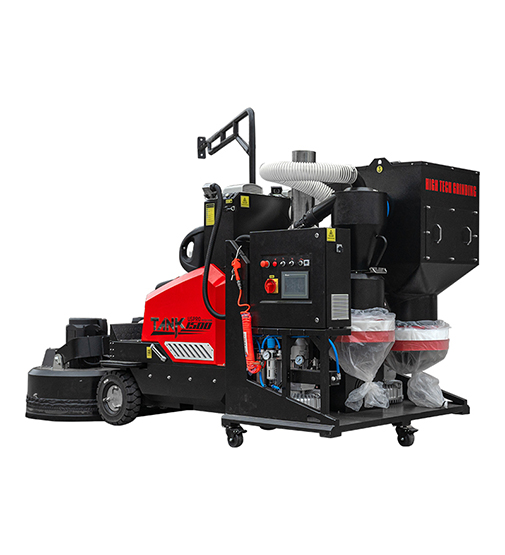

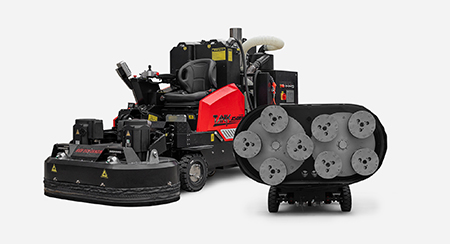

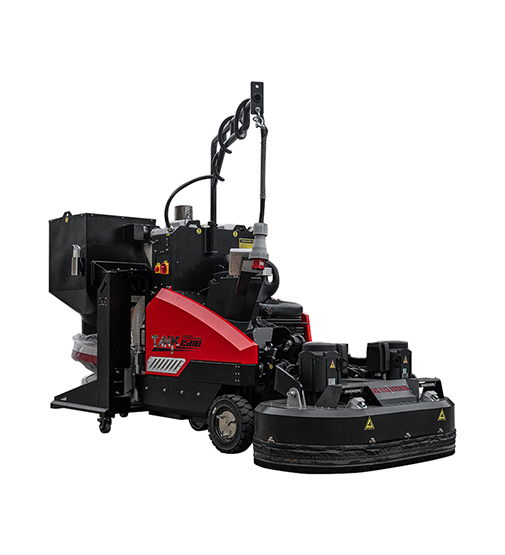

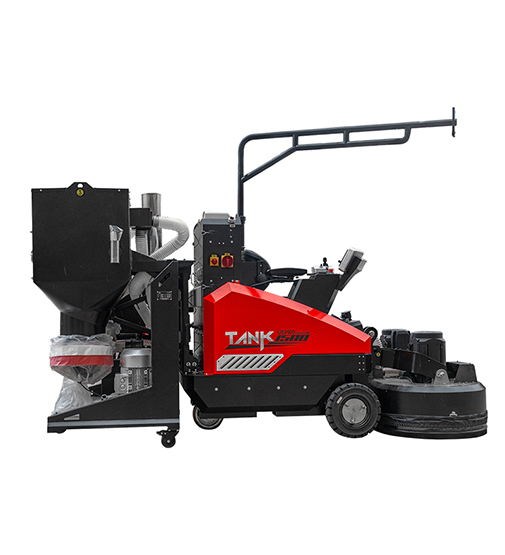

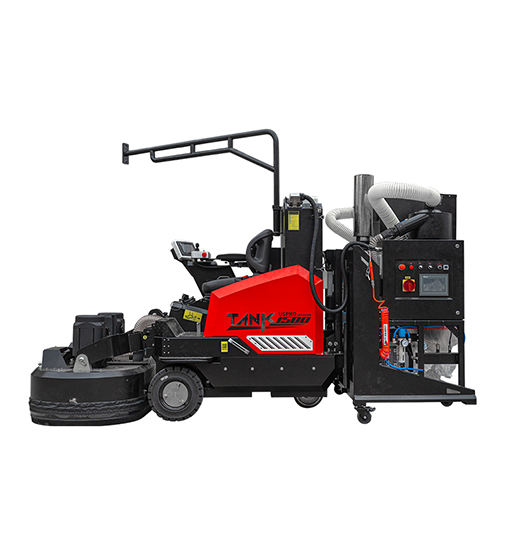

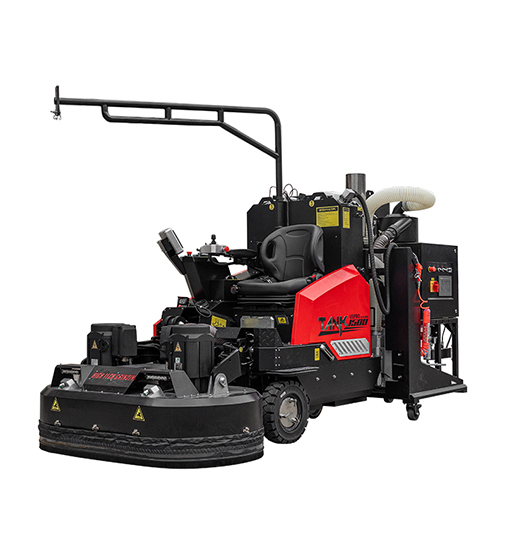

Tank1500

‌The TANK 1500 grinding machine is a great leap forward in the flooring industry. It completely combines machines with people and gets rid of the constraints of traditional remote control machines. The HTG TANK1500 grinding machine adopts a double gearboxes and remote control driving design, as well as an automatic dust suction and cleaning system, which greatly improves the efficiency of the machine and increases the user is operating pleasure. Operating the machine is like driving a car. It is particularly suitable for super-large projects, such as floor renovation and grinding and polishing of airports and other large factories.

✓ Integrated gear box
‌✓ Builtin battery
‌✓ Big grinding pressure
‌✓ Automatic dust collection system
‌✓ Large crossing between disks
‌✓ 3D hovering technology
‌✓ New Generation HMI system
Instructions pdf
product descriptionFEATURESMachine parametersrelated products

product description

‌The TANK 1500 grinding machine is a great leap forward in the flooring industry. It completely combines machines with people and gets rid of the constraints of traditional remote control machines. The HTG TANK1500 grinding machine adopts a double gearboxes and remote control driving design, as well as an automatic dust suction and cleaning system, which greatly improves the efficiency of the machine and increases the user is operating pleasure. Operating the machine is like driving a car. It is particularly suitable for super-large projects, such as floor renovation and grinding and polishing of airports and other large factories.

FEATURES

Discover all features and learn more about the benefits.

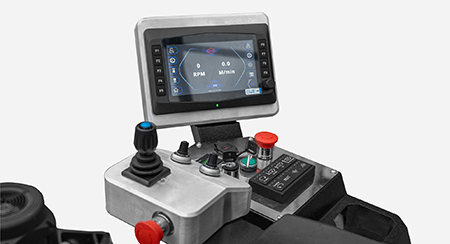

New Generation HMI system

Equipped with the voice broadcast function, making it is more clearer and intuitive to know the fault and running information.

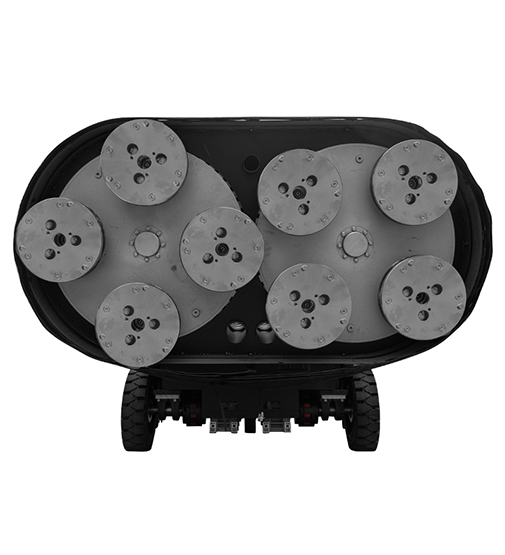

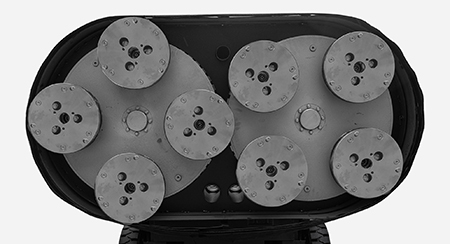

Large crossing between disks

The grinding discs cross up to 86mm, so that there is no middle gap during grinding.

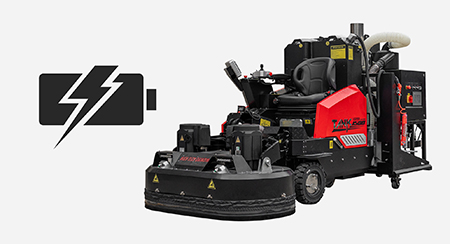

Builtin battery

Equipped with a rechargeable battery, which is easy for transportation when without a power supply.

Big grinding pressure

The machine is more than 2000kg with super grinding pressure on each working head, hydualic lifting system can make the pressure up to 980kg.

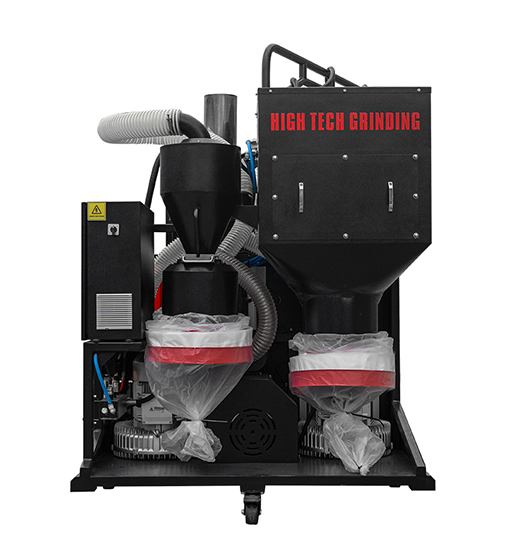

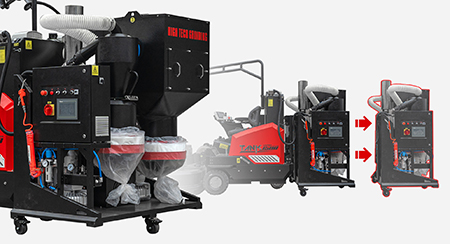

Automatic dust collection system

Equipped with a detachable automatic dust-cleaning vacuum cleaner, making the construction site closer to dust-free.

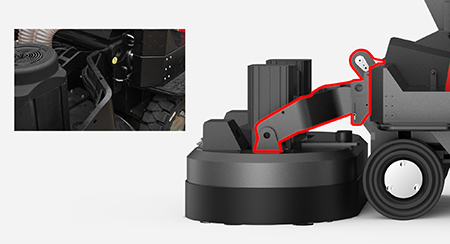

3D hovering technology

PID control from the hydraulic system and pressure sensor, keeps the grinding pressures consistent.

feature overview (7)

✓ Integrated gear box

✓ Builtin battery

✓ Big grinding pressure

✓ Automatic dust collection system

✓ Large crossing between disks

✓ 3D hovering technology

✓ New Generation HMI system

Machine parameters

ALL PRODUCTS SPECIFICATION Tank1500  USPRO   （22.4KW*2+4.4KW） Tank1500  ULTRA（19KW+2.9KW）
Tank1500
ENGINE
Engine Power (As rated by the engine manufacturer) 44KW 44KW
MOTOR
Power source Corded Corded
Rated input power 44KW 44KW
Phases 3 ph 3 ph
Voltage 380-480V 380-480V
Rated current 90A 90A
Frequency 50-60 Hz 50-60 Hz
Pins 3P+N+E 3P+N+E
EQUIPMENT
Grinding width 1545mm 1545mm
Number of grinding discs 8 8
Direction of rotation Planetary Floor Grinder Planetary Floor Grinder
Grinding disc diameter 278mm
Grinding disc speed min 450rpm
Grinding disc speed max 1950rpm
Grinding pressure, max 753kg/1660 lbs
TRANSMISSION
Type of operation Remote-controlled/Semi-autu pilot Remote-controlled/Semi-autu pilot
DIMENSIONS
Product size length 3453mm
Product size width 1590mm
Product size height 757mm
Weight (complete product w/o side packed articles) 2754kg/6071.5 lbs
