Planetary Grinder
HTG800-3 GP
The key benefit of propane grinding machines is their quick setup without the need for wiring or power, making them ideal for locations without electricity, though they require regular maintenance like other propane equipment, it is best combination to connect to HTG propane vacuums.
✓ Integrated gear box
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Easy to tile up
✓ Three grinding pressures
✓ Various grinding heads
✓ Break free from constraints
product description

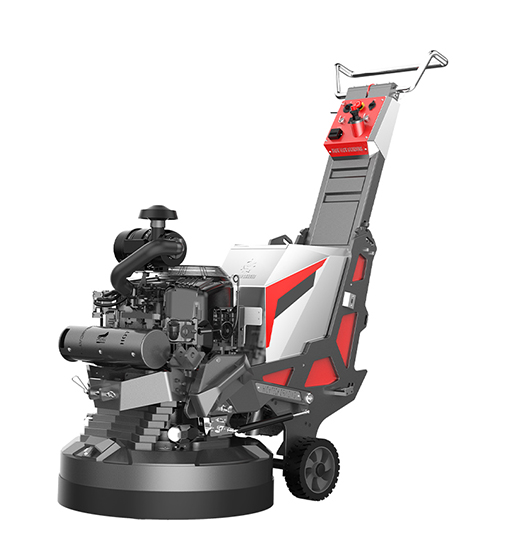

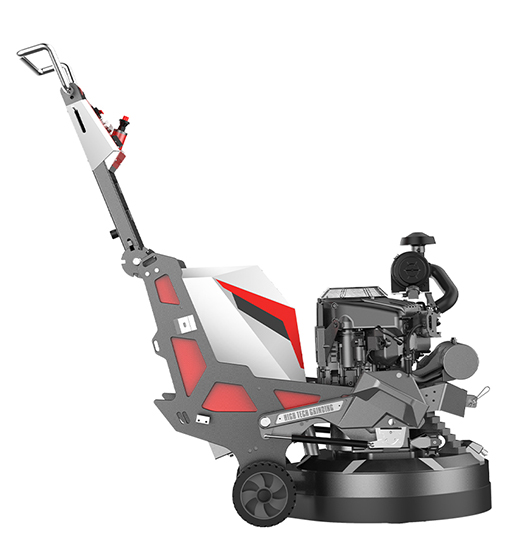

The 32 inch grinder is suitable for most big projects. It is high efficiency, and is easy to transport and maintain. The HTG 800 series has an integrated cutting frame and ergonomic design to achieve a perfect balance.
The key benefit of propane grinding machines is their quick setup without the need for wiring or power, making them ideal for locations without electricity, though they require regular maintenance like other propane equipment, it is best combination to connect to HTG propane vacuums.
FEATURES
Discover all features and learn more about the benefits.
-
Three grinding pressures
Through the swinging type weight irons, the user can easily switch its working state and adjust the machine grinding pressure.
-
-

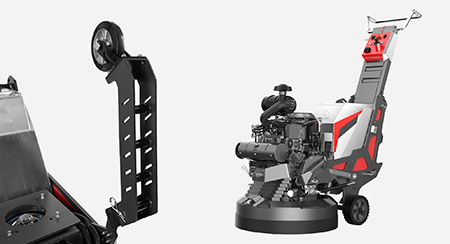

Builtin battery-front wheel
Equipped with a rechargeable battery and detachable front wheel, which is easy for transportation when without a power supply.(SP and RC models)
-
-

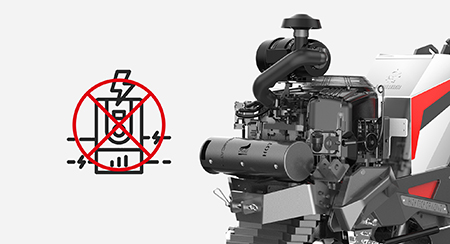

Break free from constraints
No constraints from wires and power souses, more widely used sites
-
-

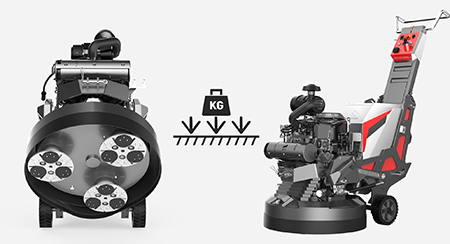

Big grinding pressure
The machine is more than 600kg with super grinding pressure on each working head.
-
feature overview (7)
✓ Integrated gear box
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Easy to tile up
✓ Three grinding pressures
✓ Various grinding heads
✓ Break free from constraints
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG800-3 GP | HTG800-3 GP |
| HTG-800-3GP | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 31HP | 31HP |
| MOTOR | ||
| Power source | Propane | Propane |
| Rated input power | 23kw/31HP | 31HP |
| EQUIPMENT | ||
| Grinding width | 800mm | 800mm |
| Number of grinding discs | 3 | 3 |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder |
| Grinding disc diameter | 278 | 278 |
| Grinding disc speed min | 2100 | 2100 |
| Grinding disc speed max | 3600 | 3600 |
| Grinding pressure, max | 258kg-344kg(include motor)/569-758lbs | |
| Walking Speed | ||
| TRANSMISSION | ||
| Type of operation | Walk-behind | Walk-behind |
| DIMENSIONS | ||
| Product size length | 2352mm | |
| Product size width | 825mm | |
| Product size height | 1905mm | |
| Weight (complete product w/o side packed articles) | 633kg/1395 lbs |
