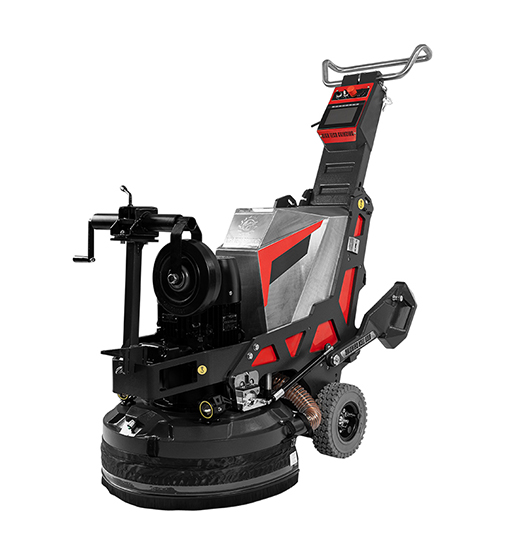

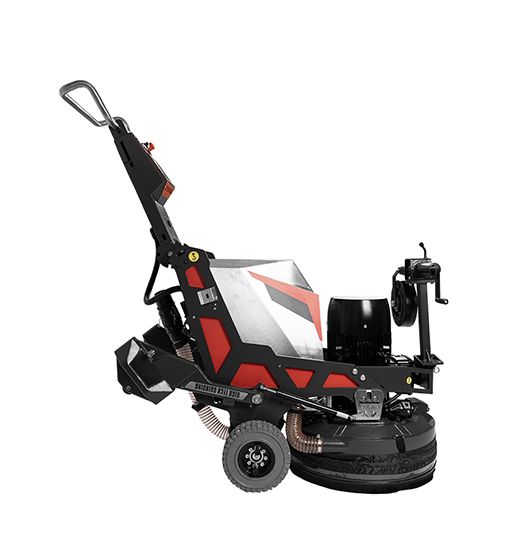

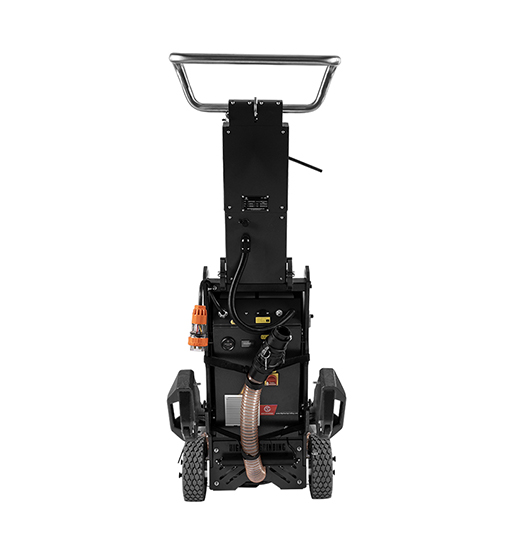

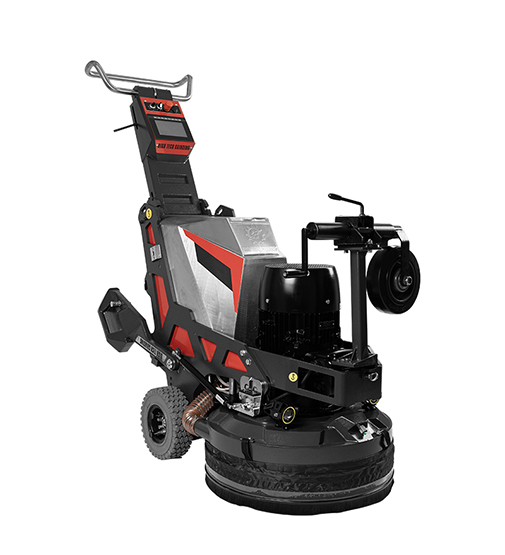

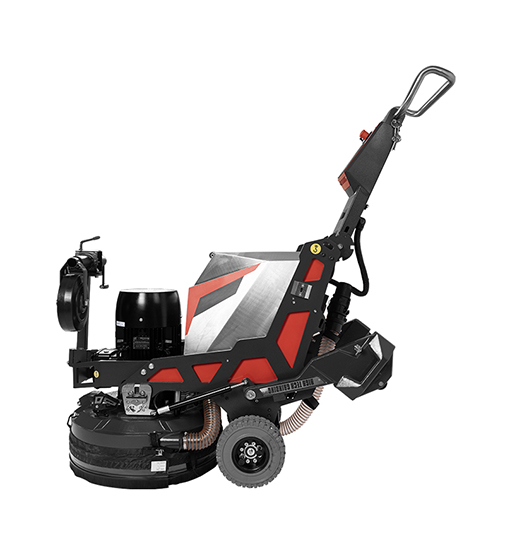

Planetary Grinder
HTG-680-3/-4 RC
✓ GEAR-DRIVEN RELIABILITY
✓ EFFICIENT SERVO MOTOR
✓ VERSATILE PERFORMANCE
✓ EFFORTLESS TRANSPORTATION
✓ HMI SYSTEM
product description
The HTG-680RC is a high-powered remote control grinder uniquely designed with a compact size of 680mm, allowing it to easily pass through standard doors. This versatility makes it an ideal unit for medium to large jobs for polished concrete and coating flooring. Recommend to work with auto va
FEATURES
Discover all features and learn more about the benefits.
-

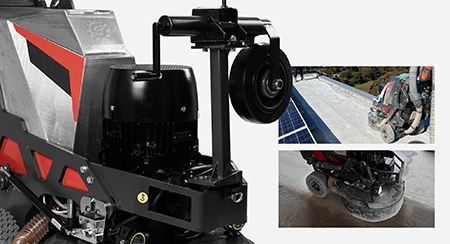

VERSATILE PERFORMANCE

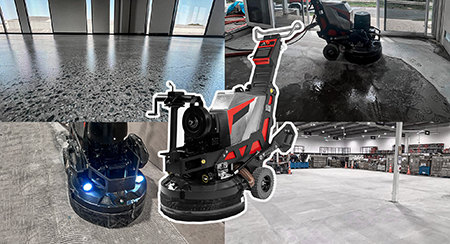

The HTG-680RC excels in concrete floor preparation and polishing applications — both wet and dry.
-
-

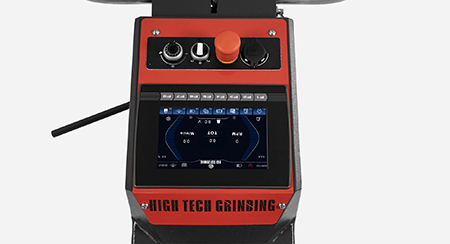

HMI SYSTEM
Colorful 7" display screen display all operation information and fault states of the machine
-
-
EFFORTLESS TRANSPORTATION

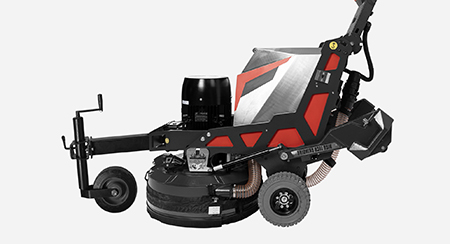

Effortless transportation with battery operation, the HTG-680RC is offering mobility across various workspaces.
-
-
EFFICIENT SERVO MOTOR
Equipped with a high-efficiency servo motor, providing precise control and consistent power for optimal grinding performance.
-
feature overview (5)
✓ GEAR-DRIVEN RELIABILITY
✓ EFFICIENT SERVO MOTOR
✓ VERSATILE PERFORMANCE
✓ EFFORTLESS TRANSPORTATION
✓ HMI SYSTEM
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG680-3/-4 RC USPRO | HTG680-3/-4 RC ULTRA | ||||
| HTG 680-3/-4RC | ||||||
| ENGINE | ||||||
| Engine Power (As rated by the engine manufacturer) | 11KW | 11KW | 11KW | 11KW | 11KW | 11KW |
| MOTOR | ||||||
| Power source | Corded | Corded | Corded | Corded | Corded | Corded |
| Rated input power | 11KW | 11KW | 11KW | 11KW | 11KW | 11KW |
| Phases | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph | 3 ph |
| Voltage | 200-240V | 200-240V | 380-480V | 380-480V | 380-415 V | 380-415 V |
| Rated current | 39.7A | 39.7A | 23.0A | 23.0A | 23.0A | 23.0A |
| Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Pins | 3P+E | 3P+E | 3P+E | 3P+E | 3P+E | 3P+E |
| EQUIPMENT | ||||||
| Grinding width | 660mm | 678mm | 660mm | 678mm | 660mm | 678mm |

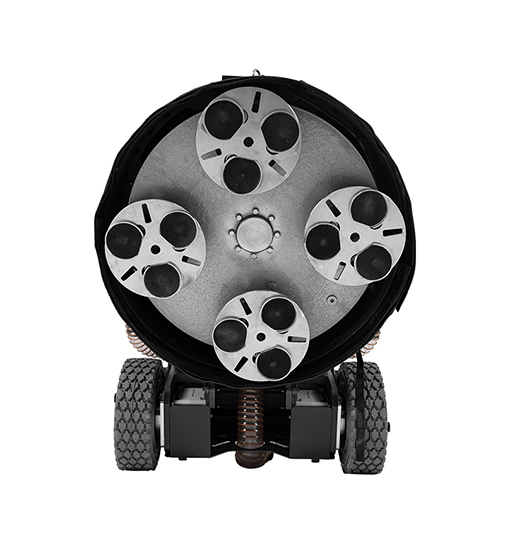

| Number of grinding discs | 3 | 4 | 3 | 4 | 3 | 4 |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder |
| Grinding disc diameter | 230 mm | 230 mm | 230 mm | 230 mm | 230mm | 230mm |
| Grinding disc speed min | 350 | 350 | 350 | 350 | 350 | 350 |
| Grinding disc speed max | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Grinding pressure, max | 278kg/613 lbs | 315kg/694.5 lbs | 278kg/613 lbs | 315kg/694.5 lbs | 234.5kg+40kg/517lbs | 264.5kg+40kg/583lbs |
| Walking Speed | 23m/min | 23m/min | 23m/min | 23m/min | ||
| TRANSMISSION | ||||||
| Type of operation | Remote-controlled/Walk-behind | Remote-controlled/Walk-behind | Remote-controlled/Walk-behind | Remote-controlled/Walk-behind | Remote-controlled/Walk-behind | Remote-controlled/Walk-behind |
| DIMENSIONS | ||||||
| Product size length | 2049mm | 2049mm | 2049mm | 2049mm | ||
| Product size width | 708mm | 708mm | 708mm | 708mm | ||
| Product size height | 1795mm | 1795mm | 1795mm | 1795mm | ||
| Weight (complete product w/o side packed articles) | 532kg/1173 lbs | 554kg/1221 lbs | 532kg/1173 lbs | 554kg/1221lbs | ||
