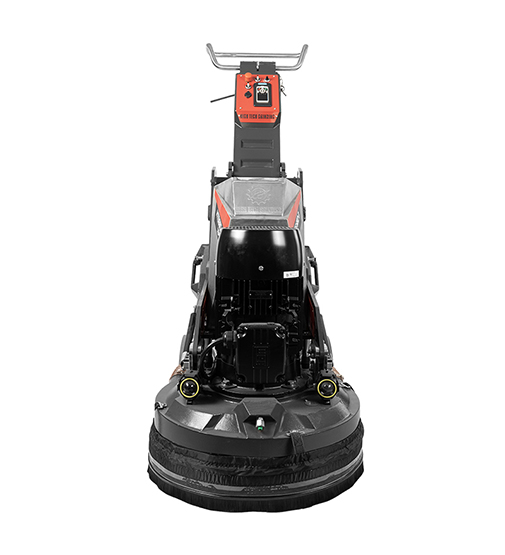

Planetary Grinder
HTG680-3/-4

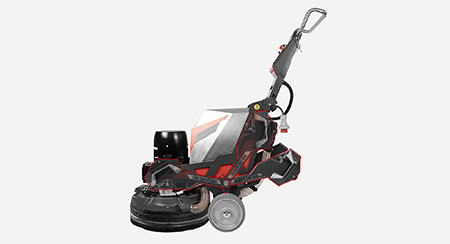

✓ Integrated gear box
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Easy to tile up
✓ Three grinding pressures
✓ Various grinding heads
✓ Powerful grinding effect
product description

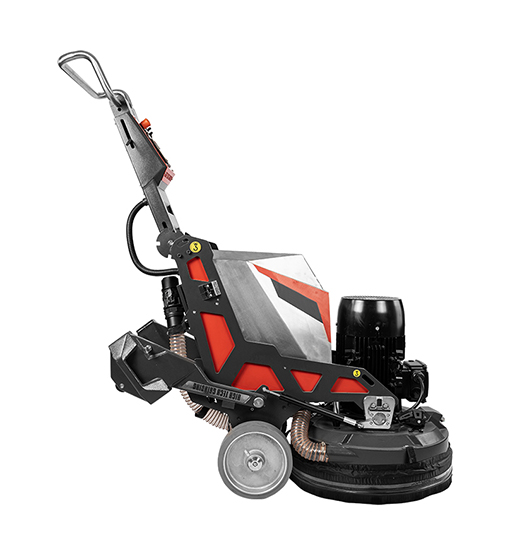

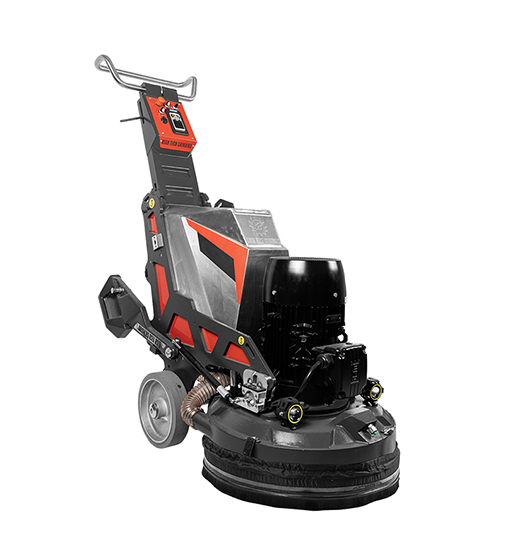

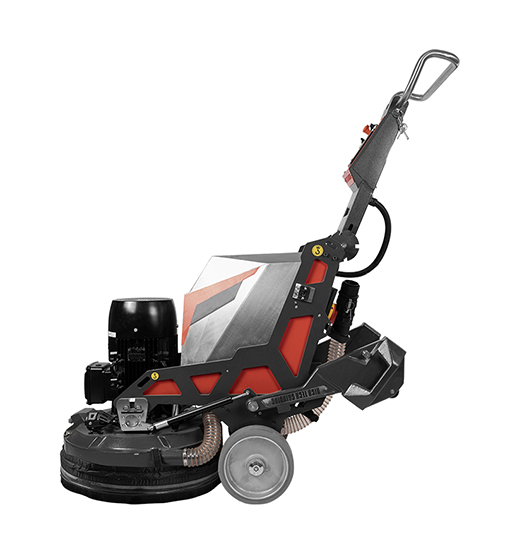

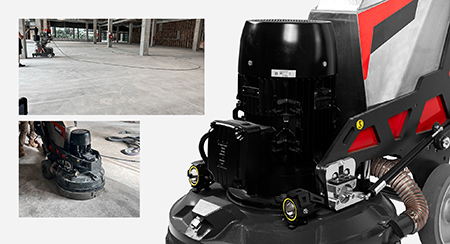

The 27-inch grinder is suitable for both indoor and outdoor projects. It can easily pass through the width of the door. It is high efficiency, and is easy to transport and maintain. The HTG 680 series has an integrated cutting frame and ergonomic design to achieve a perfect balance. Equipped with 3 or 4 flexible grinding heads, the only series has from walk-behind, self-driven to remote-controlled models, and users can choose according to their usage habits. The machine can be connected to single-phase or three-phase electricity, and can be connected to V3 /45L for dust-free working.
FEATURES
Discover all features and learn more about the benefits.
-

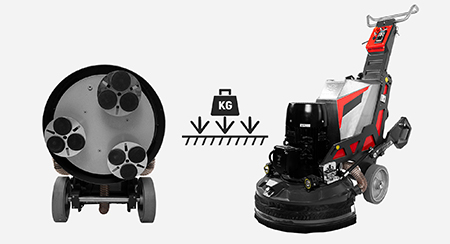

Big grinding pressure
The machine is more than 500kg with super grinding pressure on each working head.
-
-
Three grinding pressures
Through the swinging type weight irons, the user can easily switch its working state and adjust the machine grinding pressure.
-
-

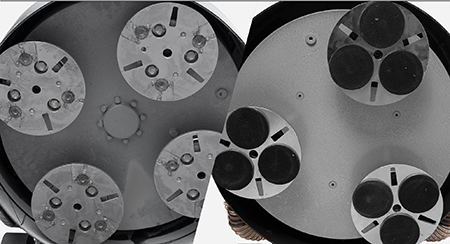

Various grinding heads

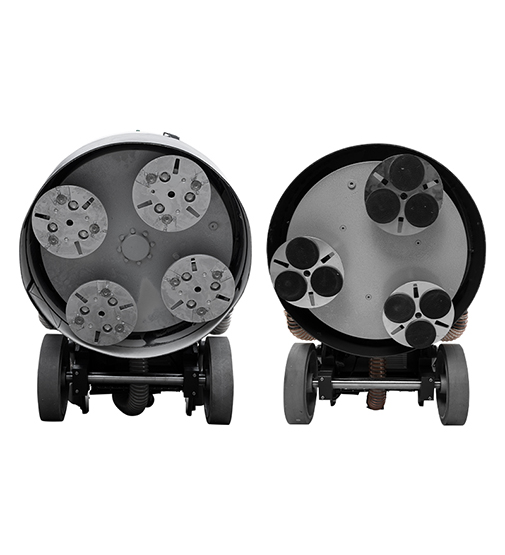

The users can choose three heads or four heads planetary grinding according to projects conditions and usage habits.
-
-
Powerful grinding effect
Equipped with 11kw/15kw big motor, more powerful and better working effects
-
FEATURE OVERVIEW (7)
✓ Integrated gear box
✓ Builtin battery/front wheel
✓ Big grinding pressure
✓ Easy to tile up
✓ Three grinding pressures
✓ Various grinding heads
✓ Powerful grinding effect
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG680-3/-4 USPRO | HTG-680 ULTRA | ||
| HTG-680-3/4 | ||||
| ENGINE | ||||
| Engine Power (As rated by the engine manufacturer) | 11kw | 11kw | 11kw | 11kw |
| MOTOR | ||||
| Power source | Corded | Corded | Corded | Corded |
| Rated input power | 11kw | 11kw | 11kw | 11kw |
| Phases | 3 ph | 3 ph | 3 ph | 3 ph |
| Voltage | 200-240V | 200-240V | 380-415 V | 380-415V |
| Rated current | 39.7A | 39.7A | 20A | 20A |
| Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Pins | 3P+E | 3P+E | 3P+N+E | 3P+N+E |
| EQUIPMENT | ||||
| Grinding width | 660 +10mm | 678 +10mm | 660mm | 678mm |
| Number of grinding discs | 3 | 4 | 3 | 4 |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder |
| Grinding disc diameter | 230 mm | 230 mm | 230mm | 230mm |
| Grinding disc speed min | 350 | 350 | 350 | 350 |
| Grinding disc speed max | 1950 | 1950 | 1950 | 1950 |
| Grinding pressure, max | 241kg/531 lbs | 263kg/580 lbs | 229.5kg+40kg/ 506lbs+88lbs | 261kg+40kg/575lbs+88lbs |
| TRANSMISSION | ||||
| Type of operation | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| DIMENSIONS | ||||
| Product size length | 2402 mm | 2402 mm | 2402mm | 2402mm |
| Product size width | 696 mm | 696 mm | 696mm | 696mm |
| Product size height | 2091 mm | 2091 mm | 2091mm | 2091mm |
| Weight (complete product w/o side packed articles) | 459kg/1012 lbs | 483kg/1065 lbs | 500+40kg/1102lbs+88lbs | 535+40kg/1179lbs+88lbs |
