Planetary Grinder
HTG-550
✓ Smart Speed Adjustment
✓ Rapid Disassembly
✓ Versatile Surface Compatibility
✓ Compact design
✓ Lightweight and portable
✓ Adjustable Handle
✓ Adjustable control panel
✓ The electric control system complies with international certifications.
✓ Removable dust cover
✓ Innovative Gearbox with Patented Technology
✓ Three-position extra weight
✓ LED Light
✓ Mist Function
product description

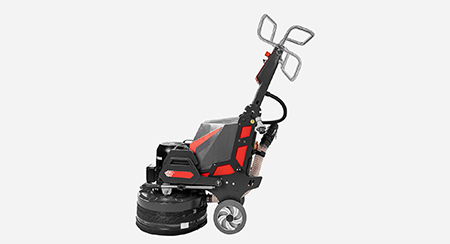

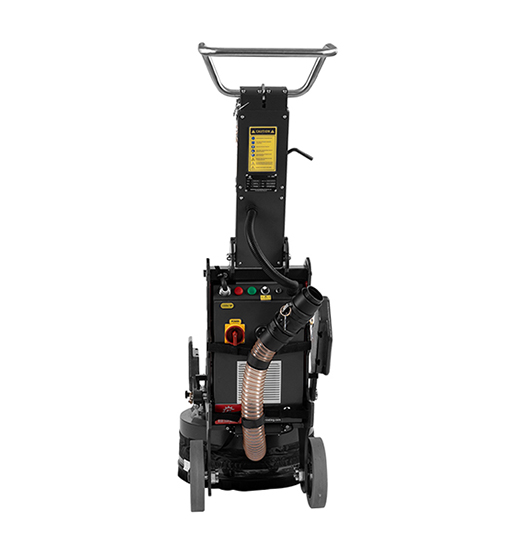

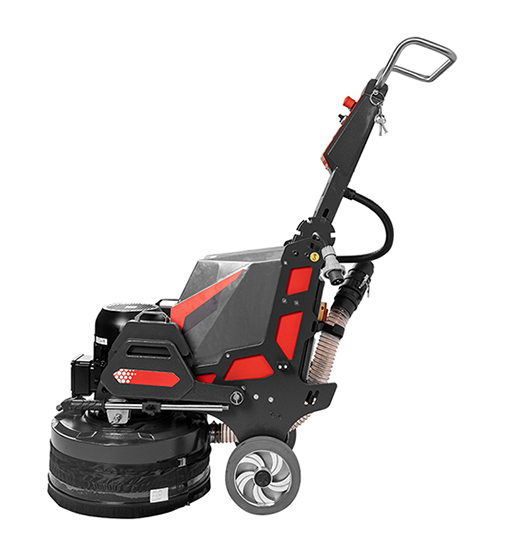

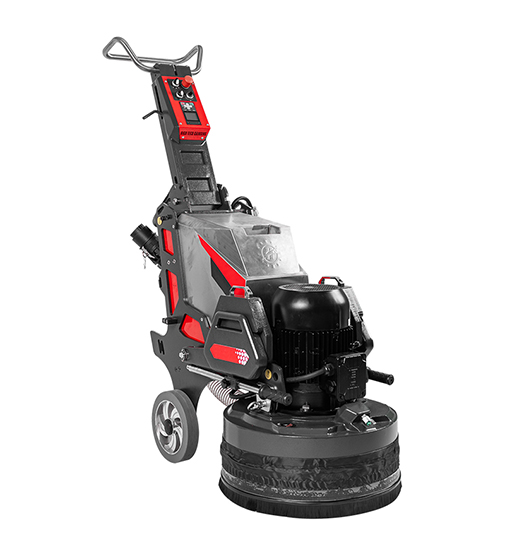

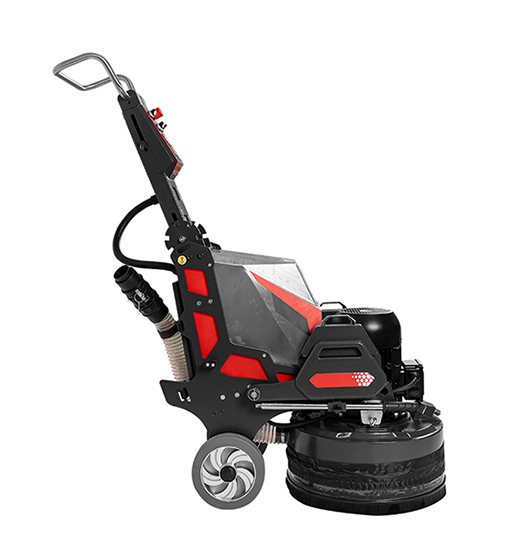

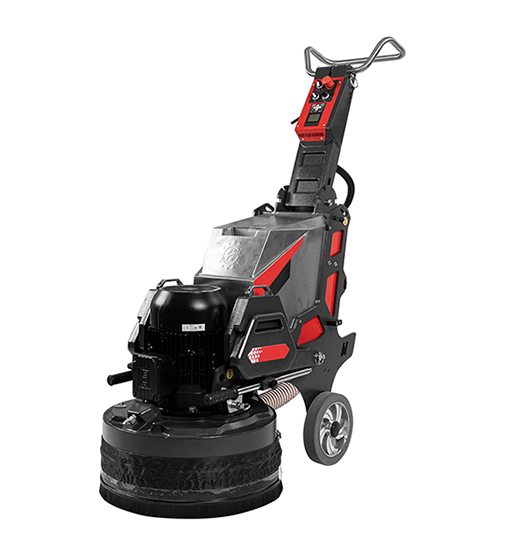

The HTG550 is a walk-behind planetary grinding machine primarily designed for surface grinding applications. It effectively polishes terrazzo, concrete surfaces, epoxy mortar layers, and old epoxy floors. With its lightweight, flexibility, and high work efficiency, it is an ideal tool for flooring projects. The machine can be equipped with metal grinding discs, resin grinding discs, and bush-hammering pads for grinding and polishing.
FEATURES
Discover all features and learn more about the benefits.
-
Smart Speed Adjustment
Intelligent adjustment of grinding speed allows for precise customization based on different surface types.
-
-

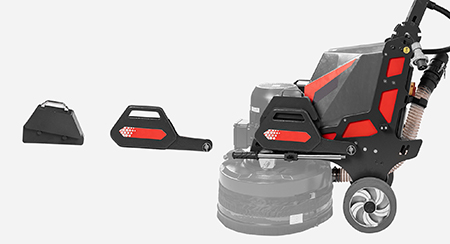

Rapid Disassembly
Quickly separable gearbox, frame, and weight sections for easy maintenance and transport.
-
-

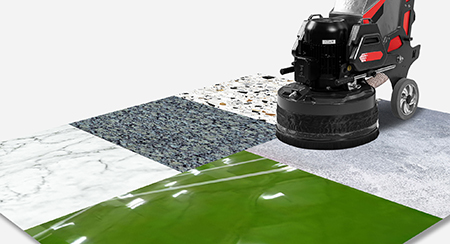

Versatile Surface Compatibility
Designed for a wide range of applications, making it ideal for various surfaces. It excels in:Concrete Polishing, Stone Care,Terrazzo Finishing, Coating RemovalBush-Hammered Finishes.
-
-
Compact design
Compact design provides better visibility during operation.
-
-

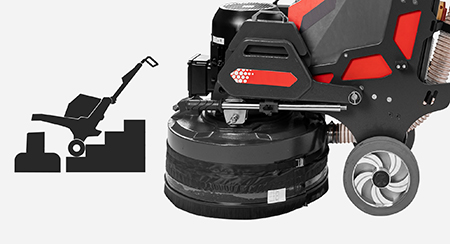

Lightweight and portable
Weighing only 260 kg, with 250 mm diameter wheels for easy stair navigation.
-
-

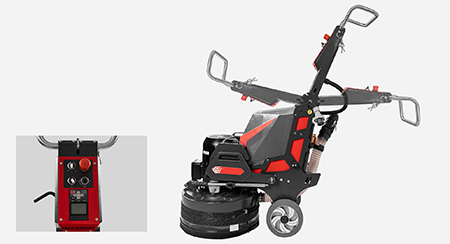

Adjustable Handle
The handle adjusts 360 degrees for comfortable operation.
-
-

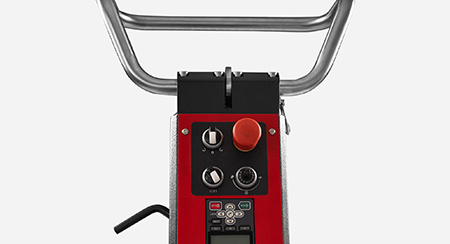

Adjustable control panel
The control panel can be set to various levels for convenience and uses switches from well-known international brands.
-
-

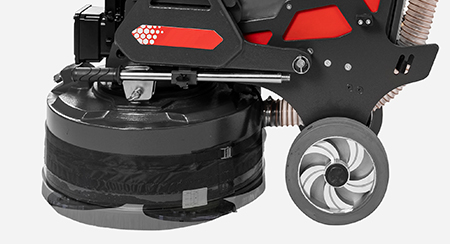

Removable dust cover
The dust cover is detachable for easy replacement.
-
-

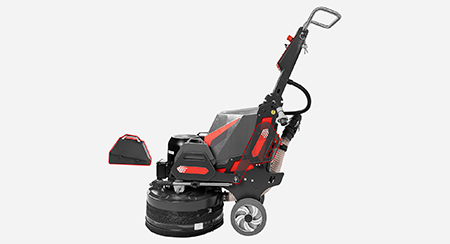

Three-position extra weight
The extra weight can be placed in three different positions to meet various functions.
-
-

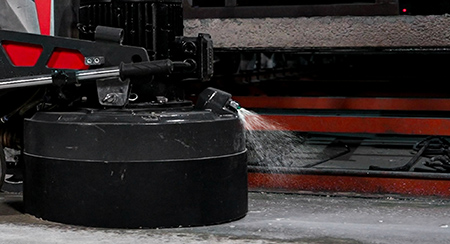

Mist Function
Reduces dust dispersion, cools diamond temperatures, and increases grinding power.
-
FEATURE OVERVIEW (13)
✓ Smart Speed Adjustment
✓ Rapid Disassembly
✓ Versatile Surface Compatibility
✓ Compact design
✓ Lightweight and portable
✓ Adjustable Handle
✓ Adjustable control panel
✓ The electric control system complies with international certifications.
✓ Removable dust cover
✓ Innovative Gearbox with Patented Technology
✓ Three-position extra weight
✓ LED Light
✓ Mist Function
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-550 USPRO | HTG-550 ULTRA |
| HTG-550 | ||
| ENGINE | ||
| Engine Power (As rated by the engine manufacturer) | 5.5KW | 5.5KW pm motor |
| MOTOR | ||
| Power source | Corded | Corded |
| Rated input power | 5.5KW | 5.5KW |
| Phases | 1ph or 3 ph | 3ph |
| Voltage | 200-240V | 380-415V |
| Rated current | 21A | 11A |
| Frequency | 50-60 Hz | 50-60 Hz |
| Pins | 1P+N+E | 3P+N+E |
| EQUIPMENT | ||
| Grinding width | 550 mm | 550mm |

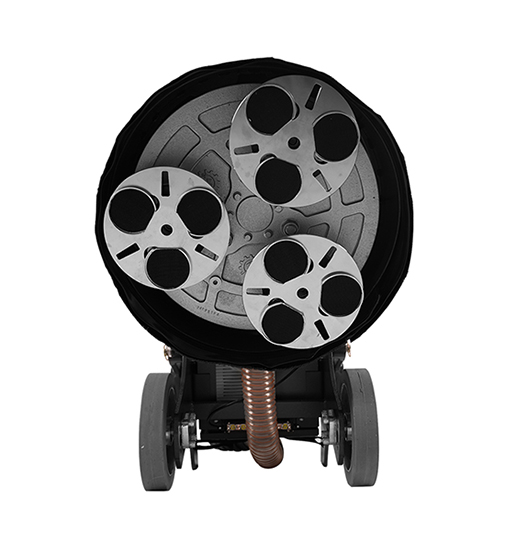

| Number of grinding discs | 3 | 3 |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder |
| Grinding disc diameter | 230 mm | 230mm |
| Grinding disc speed min | 350 | 350 |
| Grinding disc speed max | 1500 | 1500 |
| Grinding pressure, max | 176.5kg/389 lbs +30kg | 147kg+30kg |
| Type of operation | Walk-behind | Walk-behind |
| DIMENSIONS | ||
| Product size length | 1688mm | 1688mm |
| Product size width | 554mm | 554mm |
| Product size height | 1509mm | 1509mm |
| Weight (complete product w/o side packed articles) | 280kg/617 lbs | 289kg |
