Planetary Grinder
HTG-460

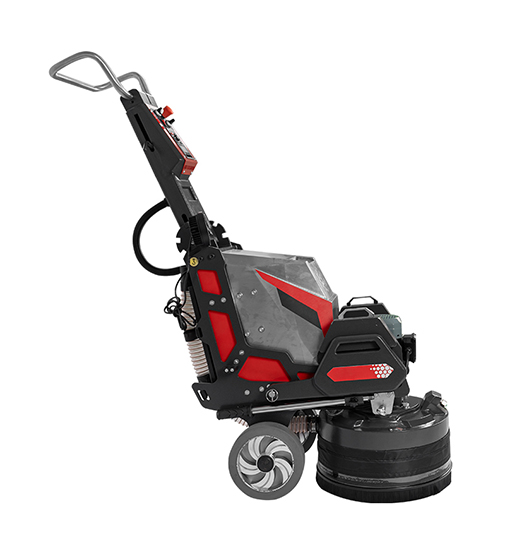

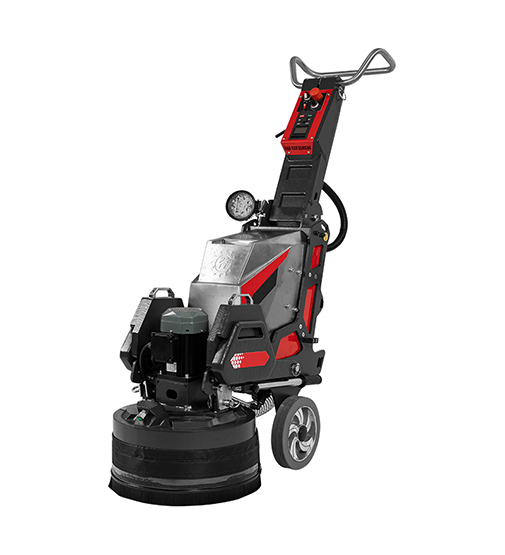

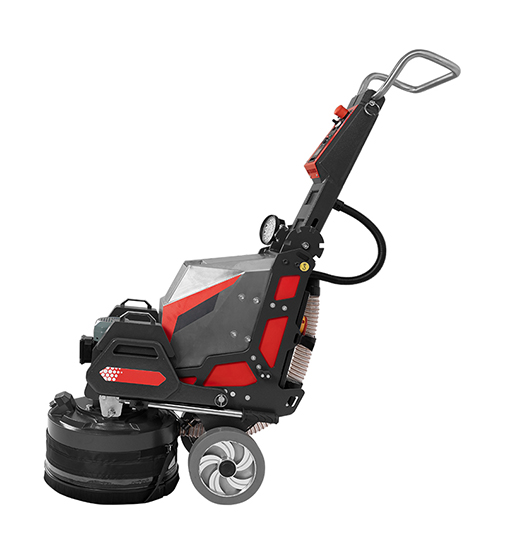

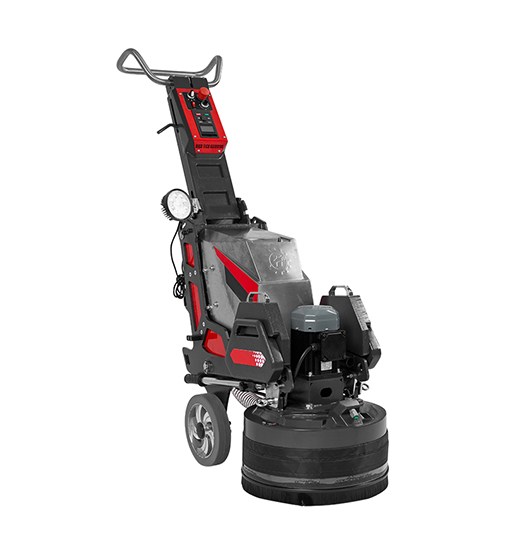

This is a lightweight, walk-behind floor grinder designed for polishing concrete, stone, and other surfaces. Its modular frame design allows for easy transport, making it suitable for small areas and indoor projects. It can be equipped with metal and resin grinding pads for grinding and polishing.
✓Three-position extra weight
✓LED
✓Mist Function
✓Removable Lock Pin
✓Removable Extra Weights
✓Stainless Steel Water Tank
✓Safe Design
✓Adjustable Handle
✓Adjustable control panel
✓The electric control system complies with international certifications
✓Removable dust cover
✓Innovative Gearbox with Patented Technology
product description
This is a lightweight, walk-behind floor grinder designed for polishing concrete, stone, and other surfaces. Its modular frame design allows for easy transport, making it suitable for small areas and indoor projects. It can be equipped with metal and resin grinding pads for grinding and polishing.
FEATURES
Discover all features and learn more about the benefits.
-

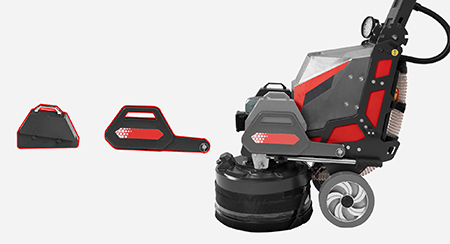

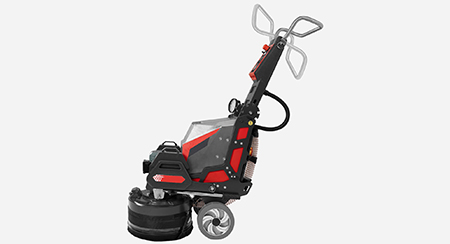

Removable Extra Weights
Equipped with detachable extra weights on both sides, each weighing 20 kilograms.
-
-

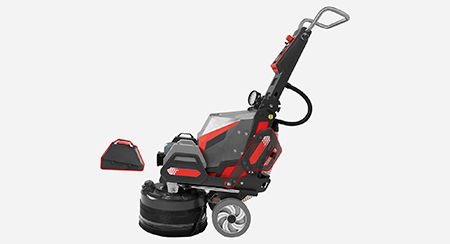

Three-position extra weight
The extra weight can be placed in three different positions to meet various functions.
-
-

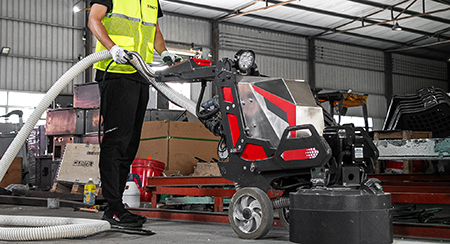

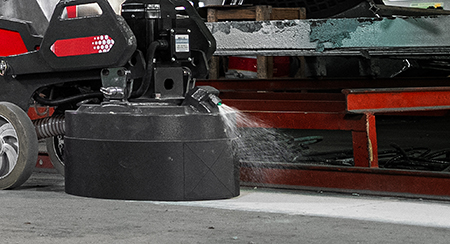

Mist Function
Reduces dust dispersion, cools diamond temperatures, and increases grinding power.
-
-

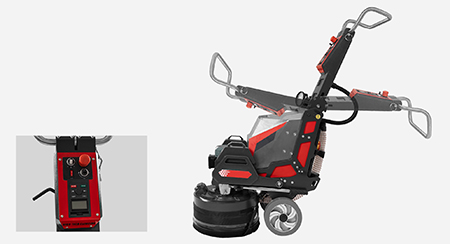

Adjustable Handle
The handle adjusts 360 degrees for comfortable operation.
-
-
Adjustable control panel
The control panel can be set to various levels for convenience and uses switches from well-known international brands.
-
-

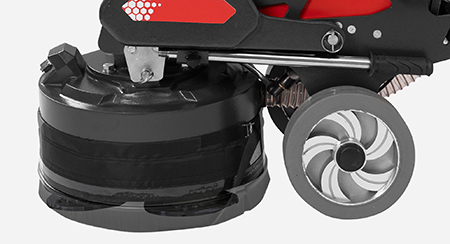

Removable dust cover
The dust cover is detachable for easy replacement.
-
-

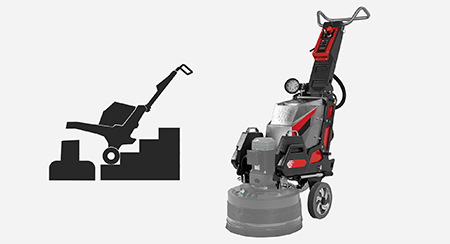

Removable Lock Pin
Features a detachable frame and gearbox head for easy transportation upstairs.
-
-

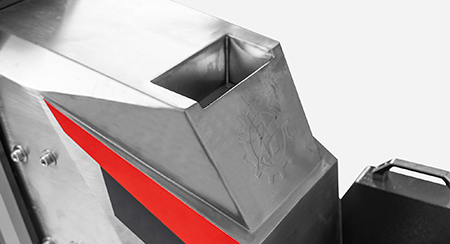

Stainless Steel Water Tank
Iconic stainless steel water tank with a sleek industrial design.
-
-

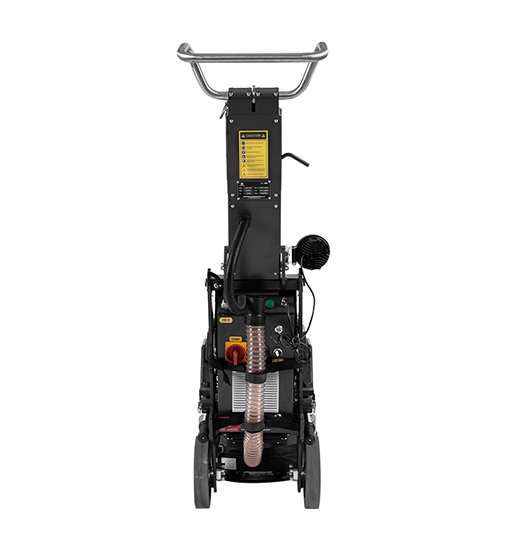

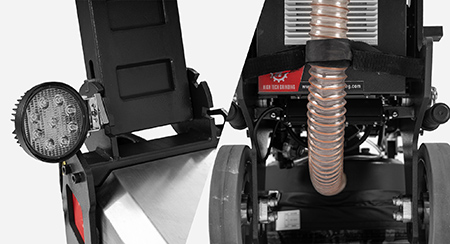

Safe Design
Round handle allows the cable and vacuum hose to pass through, preventing tripping hazards from the cable and hose.
-
-
LED
Equipped with LED for night construction.
-
feature overview (12)
✓ Three-position extra weight
✓ LED灯 LED
✓ Mist Function
✓ Removable Lock Pin
✓ Removable Extra Weights
✓ Stainless Steel Water Tank
✓ Safe Design
✓ Adjustable Handle
✓ Adjustable control panel
✓ The electric control system complies with international certifications.
✓ Removable dust cover
✓ Innovative Gearbox with Patented Technology
Machine parameters
| ALL PRODUCTS SPECIFICATION | HTG-460 USPRO | HTG-460 ULTRA | |
| HTG-460 | |||
| ENGINE | |||
| Engine Power (As rated by the engine manufacturer) | 1.8KW pm | 1.5kw pm | 2.3KW pm |
| MOTOR | |||
| Power source | Corded | Corded | Corded |
| Rated input power | 1.8KW | 1.5KW | 2.3KW |
| Phases | 1ph | 1ph | 1ph |
| Voltage | 110v | 110V | 200-240V |
| Rated current | 20A | 16A | 10A |
| Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Pins | 1P+N+E | 1P+N+E | 1P+N+E |
| EQUIPMENT | |||
| Grinding width | 440mm | 440mm | 440mm |

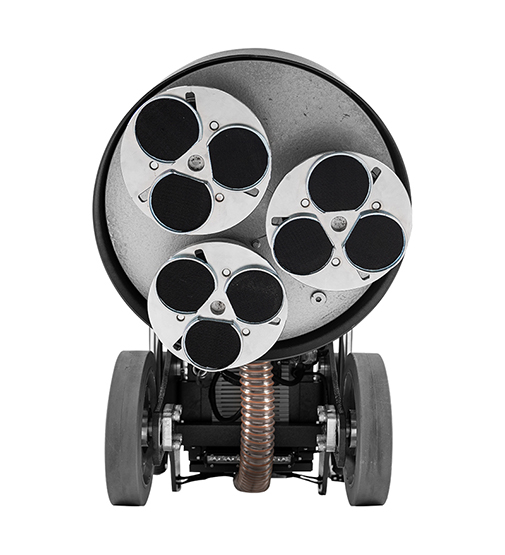

| Number of grinding discs | 3 | 3 | 3 |
| Direction of rotation | Planetary Floor Grinder | Planetary Floor Grinder | Planetary Floor Grinder |
| Grinding disc diameter | 200 mm | 200 mm | 200 |
| Grinding disc speed min | 350 | 350 | 350 |
| Grinding disc speed max | 1500 | 1500 | 1500 |
| Grinding pressure, max |
77.5kg/170.9 lbs +15kgx2 |
77.5kg/170.9 lbs | 77.5kg+30kg |
| TRANSMISSION | |||
| Type of operation | Walk-behind | Walk-behind | Walk-behind |
| DIMENSIONS | |||
| Product size length | 1597mm | 1597mm | 1597mm |
| Product size width | 462mm | 462mm | 462mm |
| Product size height | 1479mm | 1479mm | 1479mm |
| Weight (complete product w/o side packed articles) |
198kg/436.5 +30lbs |
198kg/436.5lbs | |
